CLNR2020K12 PCLNL2020K12 Tool Holder

Tool Holder PCLNR2020K12 PCLNL2020K12 PCLNR PCLNL CNC Metal Lathe Accessories Vertical Lathe Tool Holder For CNMG120408

External Tool Holder Code System (ISO Standard)

01. Application: Vertical Lathe Tool Holder

02. ISO Designation:
PCLNR2020K12(Right Hand Tools)
PCLNL2020K12(Left Hand Tools)

03. Clamping Method: Lever Lock

04. Applicable Inserts:CN__1204_ _(CNMG120404/CNMA120404)

05. Approach Angle: 95 Degree

06. Size of Shank: H20mm*W20mm*L125mm

07. Material: 42CrMo(Alloy Spring Steel)

08. Hardness: HRC45-50

09. Color: Grey/Black

10.Net Weight:450g

11.G.W.:600g

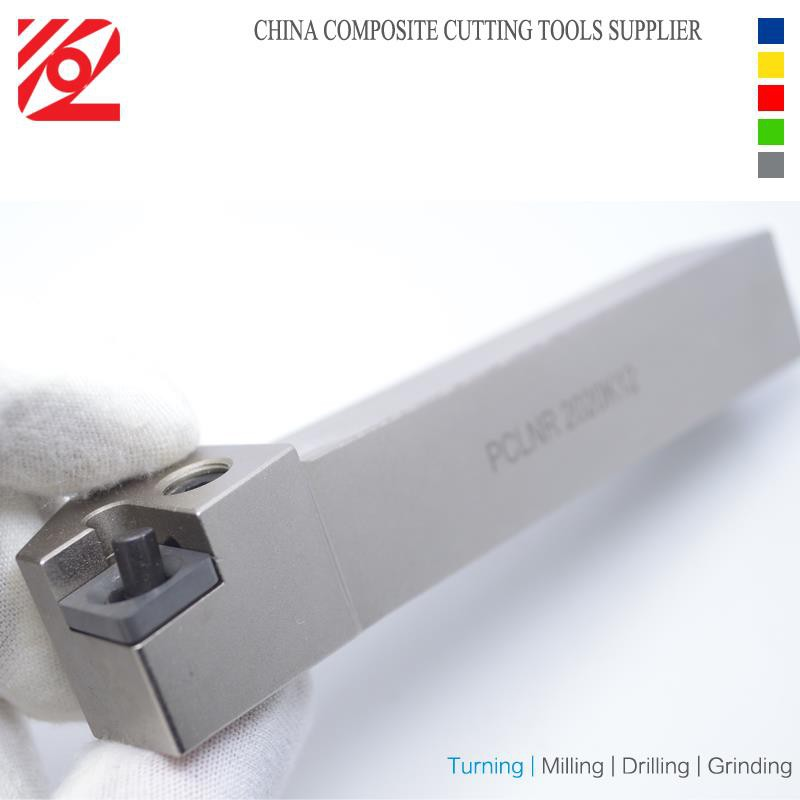

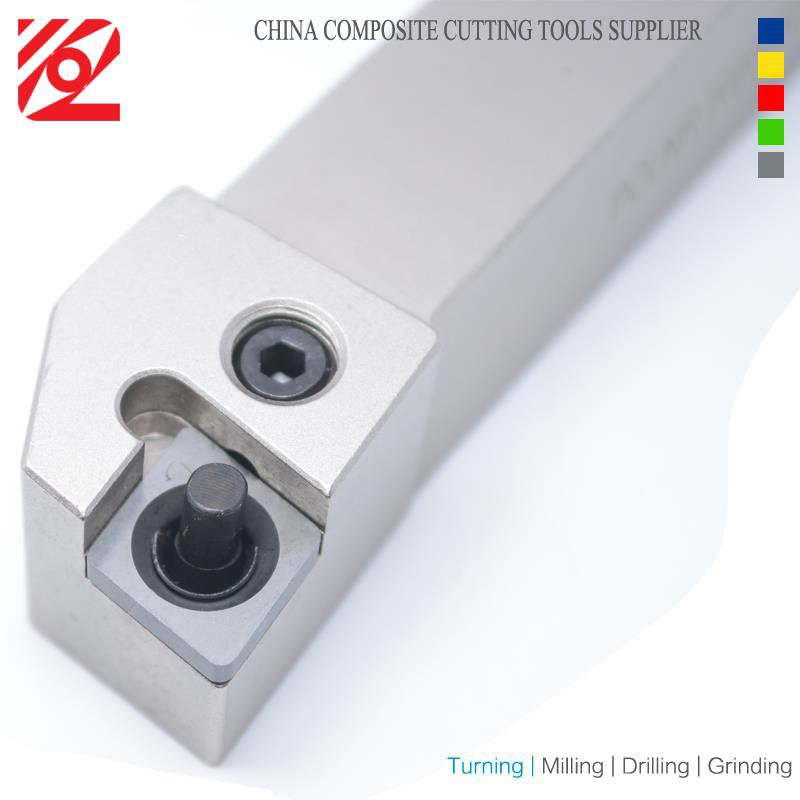

Details of Vertical Lathe Tool Holder

Qulification of Vertical Lathe Tool Holder
