S16Q-STUCR CNC Lathe Boring Bar

EDGEV For S16Q-STUCR11 S16Q-STUCL11 CNC Lathe Boring Bar TCMT1102 Tools Shank Boring

Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

EDGEV For S16Q-STUCR11 S16Q-STUCL11 CNC Lathe Boring BarTCMT1102 Tools Shank Boring

HTB1bDu6jeuSBuNjSsplq6ze8pXa1

Internal Tool Holder Code System (ISO Standard)

01. Application: Boring Inserts
02. ISO Designation: S16Q-STUCR/L11
03. Clamping Method: Top and hole clamping
04. Available Inserts: TCMT110202/04
05. Approach Angle: 93 Degrees
06. Clearance Angle of Inserts: 7 Degree
07. Size of Shank: Diameter=16mm*Length=180mm
08. Material: 42CrMo(Alloy Spring Steel)
09. Hardness: HRC45-50
10. Color: Black/Grey
11. Heat Treatment Support: NIHON TECHNO TECHNOLOGY(JAPAN)
12.Delivery Time:15~20 days
13.Lead Time:35~90 days
14.New Weight:300g/piece
15.Gross Weight:450g(Include the package)

Features:

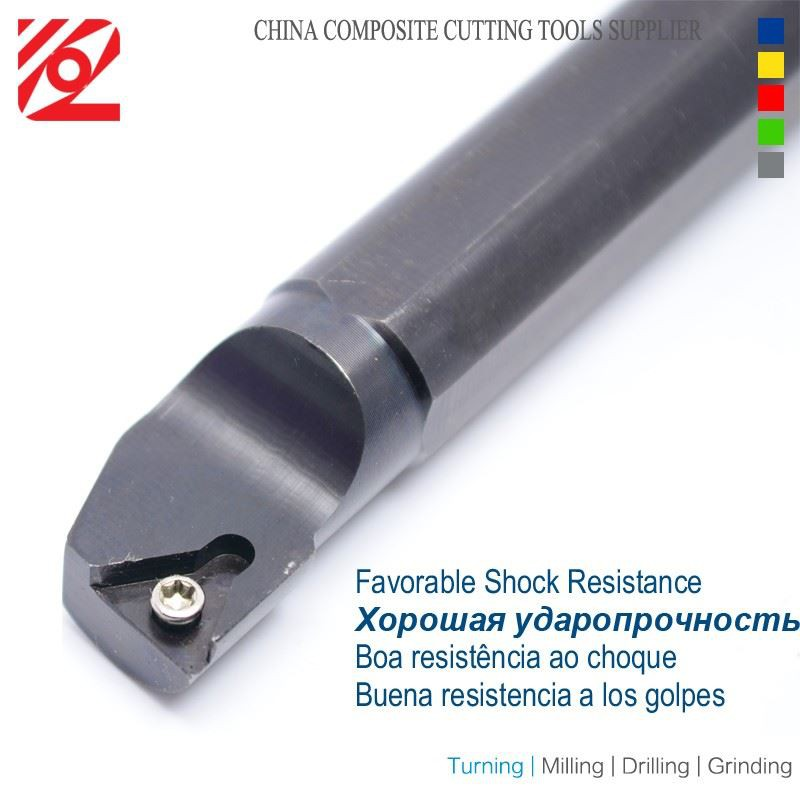

01. The CNC Lathe Boring Bar is made from the good alloy spring steel (42CrMo). Favorable shock resistance and improves the surface roughness of work-piece.
02. Integral forging processing, excellent tensile strength and rigidity. To achieve the steady machining and the long service life of tools.
03. To be manufactured by High-precision CNC machine center and MAZAK equipment
04. Strictly implement the total quality management system, 100% inspection; we use the feeler blade (0.01mm) to inspect the slot of inserts, to make sure the inserts and tool holder are closely attached.
05. Advanced NIHON Heat Treatment from Japan, to make sure the hardness uniformity of the tool holder.

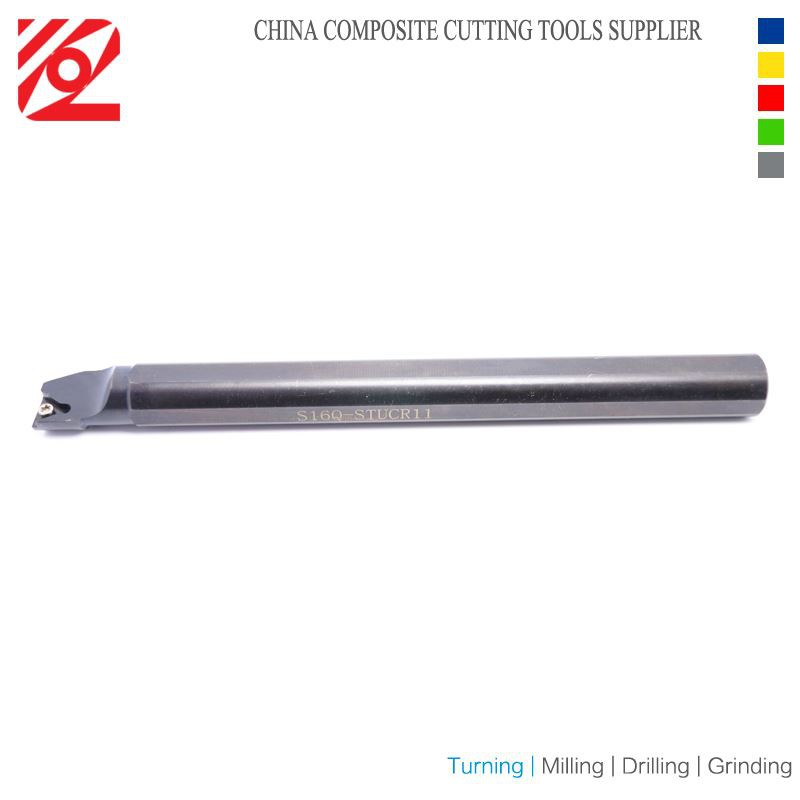

S16Q Lathe Boring Bar

HTB1EJvgbVmWBuNjSspdq6zugXXa9

HTB1_1jpbVGWBuNjy0Fbq6z4sXXaW
