MGIVL2016 Boring Tools

EDGEV MGIVR2016-1.5 MGIVR2016-2 MGIVR2016 1.5 2 2.5 MGIVL2016-2 CNC Lathe Internal Grooving Tool Holders Boring Tools

Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

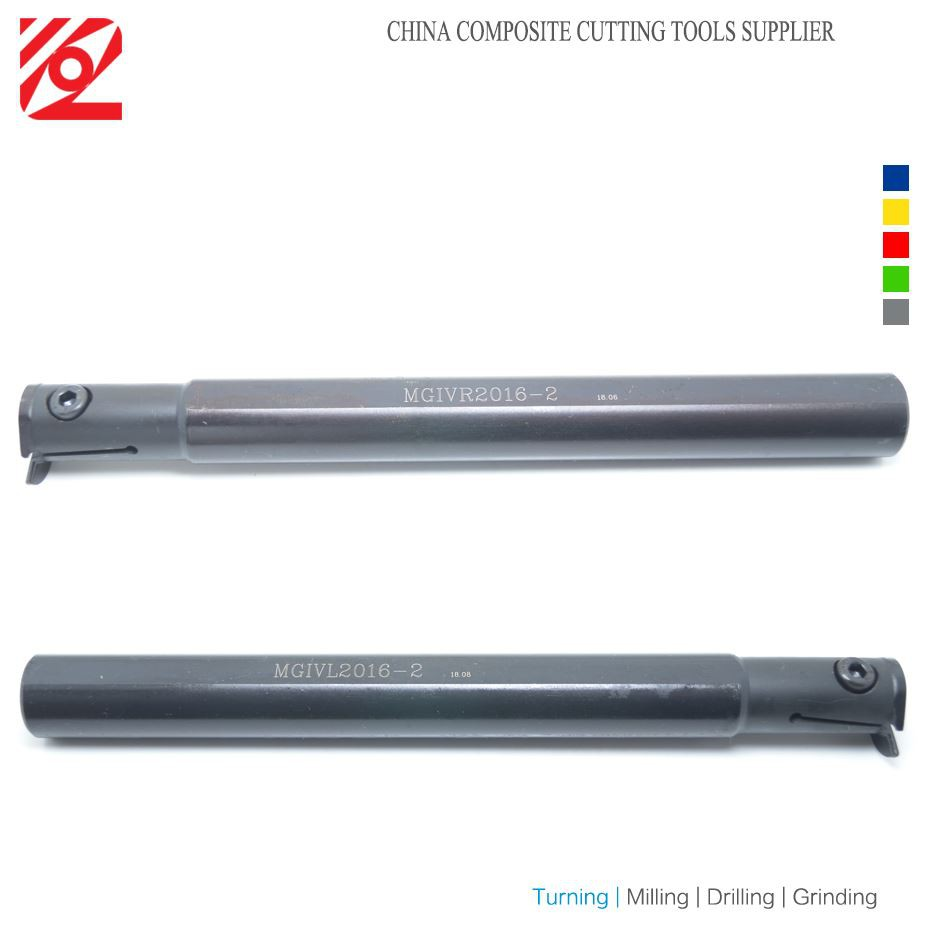

EDGEV MGIVR2016-1.5 MGIVR2016-2 MGIVR2016 1.5 2 2.5 MGIVL2016-2 CNC Lathe Internal Grooving Tool Holders Boring Tools

Internal Grooving Tool Holder Code System (ISO Standard)

01. Application: Internal Grooving Turning Tools
02. ISO Designation:MGIVR/L2016-1.5/2/2.5/3
03. Clamping Method: Screw on
04. Available Inserts:
MGIVR/L2016M-1.5:MGMN150
MGIVR/L2016M-2:MGMN200
MGIVR/L2016M-2.5:MGMN250
MGIVR/L2016M-3:MGMN300

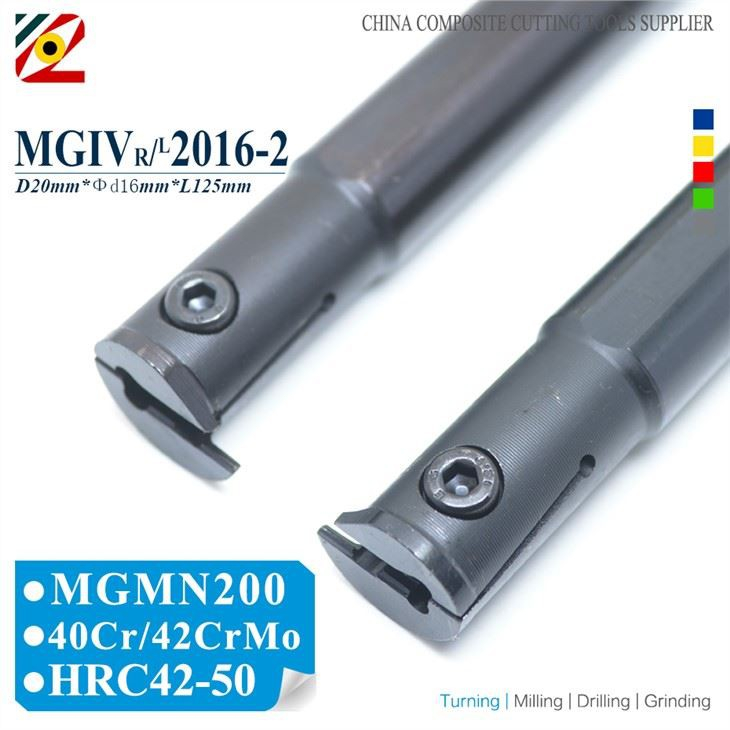

05. Size of Shank: D20mm*d16mm*L125mm

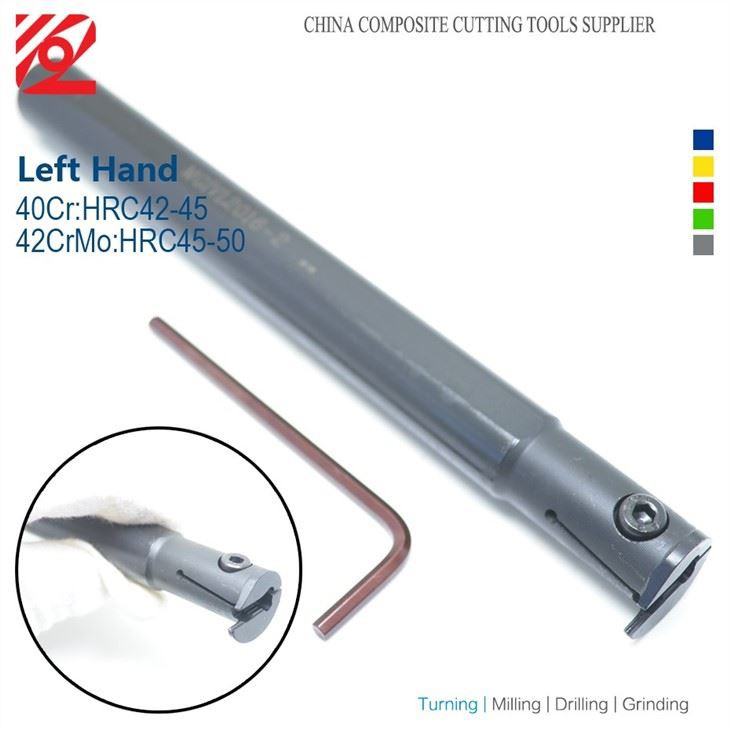

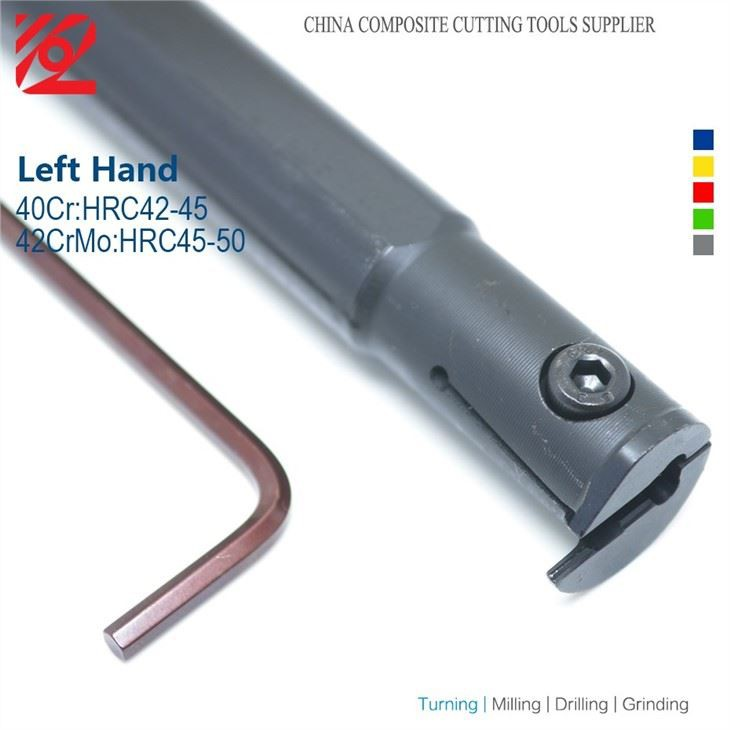

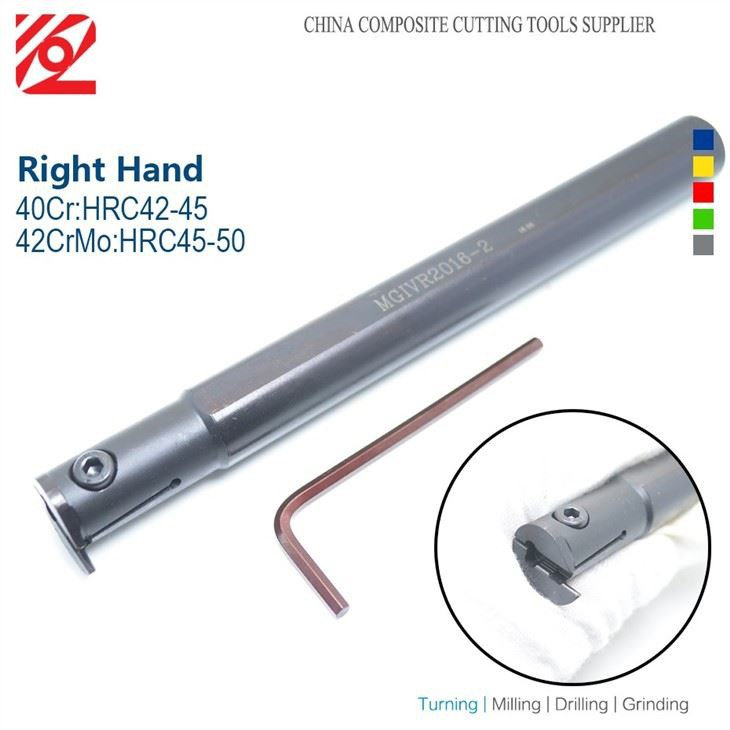

06. Material: 40Cr(HRC42-45)/42CrMo(HRC45-50)
07. Hardness: HRC42-50
08. Color: Grey/Black
09.N.W.:0.3KG, G.W.:0.40kg
10.Packing: 1PC Packed In 1 Plastic Box
11.Heat Treatment Support: NIHON TECHNO TECHNOLOGY(JAPAN)

Features of Boring bar:

01. The tool holder is made from the good alloy spring steel (42CrMo). Favorable shock resistance and improves the surface roughness of work-piece.
02. Integral forging processing, excellent tensile strength and rigidity. To achieve the steady machining and the long service life of tools.
03. To be manufactured by High-precision CNC machine center and MAZAK equipment
04. Strictly implement the total quality management system, 100% inspection; we use the feeler blade (0.01mm) to inspect the slot of inserts, to make sure the inserts and tool holder are closely attached.
05. Advanced NIHON Heat Treatment from Japan, to make sure the hardness uniformity of the tool holder.
06. Antirust and corrosion resistance, the surface of tools are planted with nickel, it is beautiful and durable.
07. Good quality Accessories, it is not easily damaged in the bad cutting condition.
