1PC S10K-SCLCR06 S10K-SCLCL06 S10K SCLCR SCLCL CNC Lathe Cutter Tool Holder For Insert CCMT060202 CCMT060204 Boring Bar
| Quantity: | |
|---|---|
S10K Boring Toolholders Code System (ISO Standard)
01. Application: Turning Tools
02. ISO Designation: S10K-SCLNR06/S10K-SCLNL06
03. Clamping Method: Top and hole clamping
04. Available Inserts: CCMT0604--
05. Approach Angle: 95 Degrees
06. Clearance Angle of Inserts: 7 Degree
07. Size of Shank: Diameter=10mm*Length=125mm
08. Material: 42CrMo(Alloy Spring Steel)
09. Hardness: HRC45-50
10. Color: Black/Grey
11. Heat Treatment Support: NIHON TECHNO TECHNOLOGY(JAPAN)
12.Delivery Time:15~20 days
13.Lead Time:35~90 days
14.New Weight:150g/piece
15.Gross Weight:300g（Include the package）

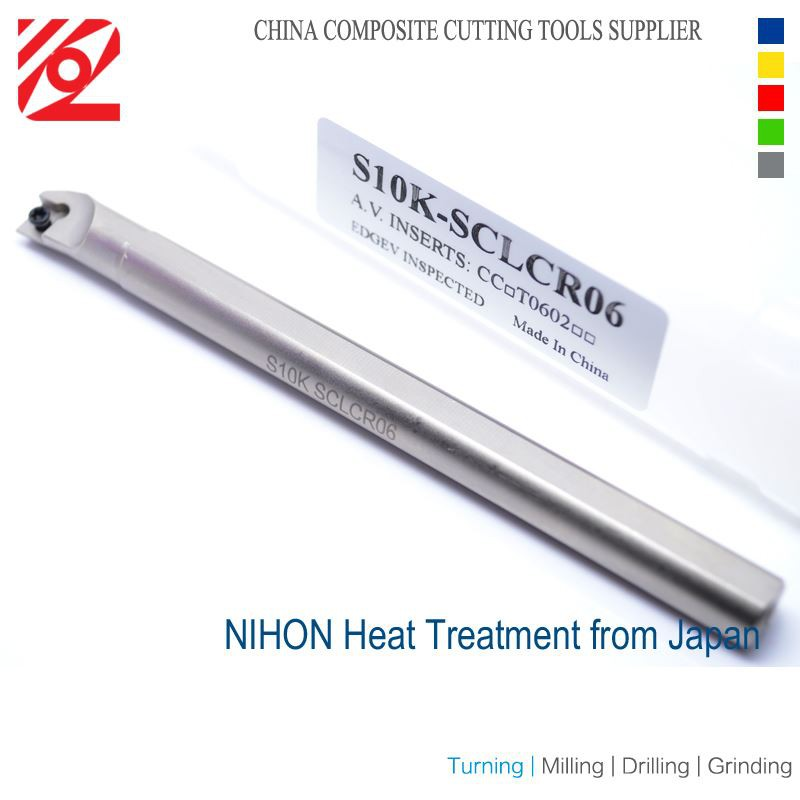

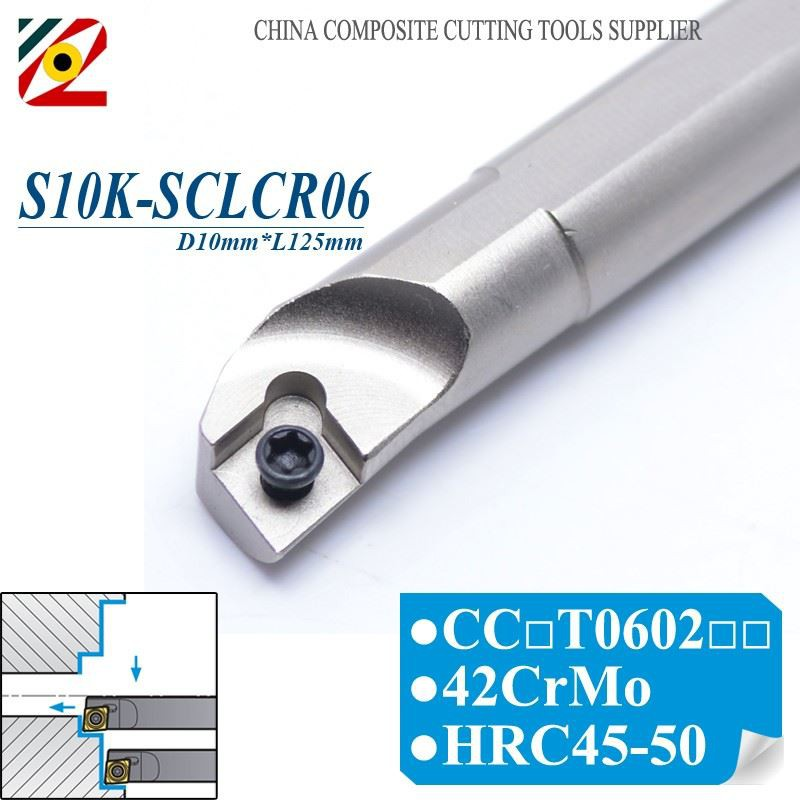

S10K Boring Toolholders show
Boring Toolholders
S10K Boring Toolholders Code System (ISO Standard)
01. Application: Turning Tools
02. ISO Designation: S10K-SCLNR06/S10K-SCLNL06
03. Clamping Method: Top and hole clamping
04. Available Inserts: CCMT0604--
05. Approach Angle: 95 Degrees
06. Clearance Angle of Inserts: 7 Degree
07. Size of Shank: Diameter=10mm*Length=125mm
08. Material: 42CrMo(Alloy Spring Steel)
09. Hardness: HRC45-50
10. Color: Black/Grey
11. Heat Treatment Support: NIHON TECHNO TECHNOLOGY(JAPAN)
12.Delivery Time:15~20 days
13.Lead Time:35~90 days
14.New Weight:150g/piece
15.Gross Weight:300g（Include the package）
S10K Boring Toolholders show
Boring Toolholders
