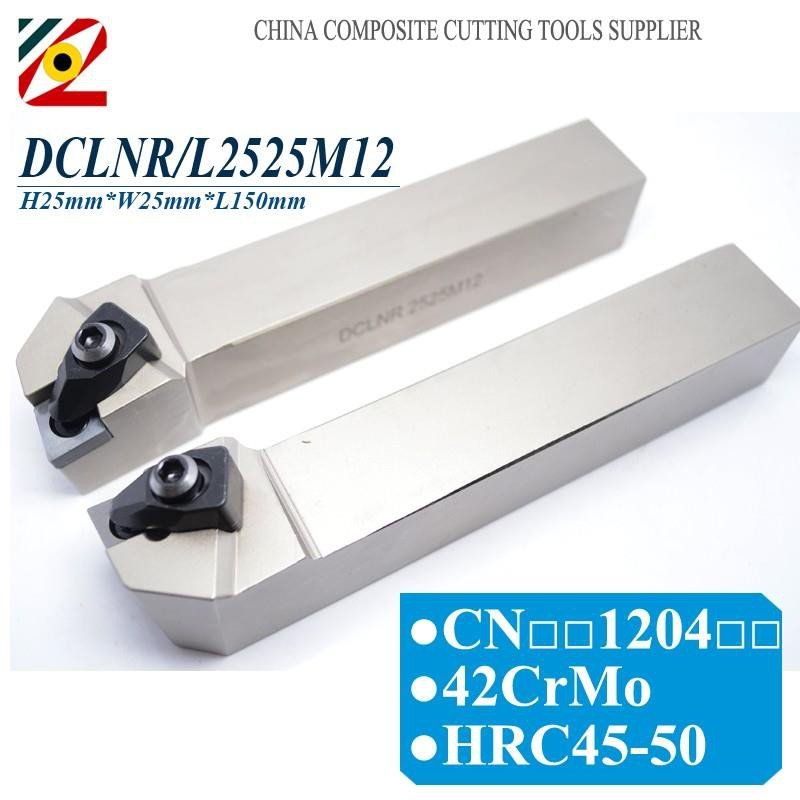

EDGEV DCLNR2525M12 DCLNL2525M12 DCLNR DCLNL CNC Metal Lathe Cutter External Turning Tool Holder For Carbide Insert CNMG 1204
| Quantity: | |
|---|---|
EDGEV DCLNR2525M12 DCLNL2525M12 DCLNR DCLNL CNC Metal Lathe Cutter External Turning Tool Holder For Carbide Insert CNMG 1204
External Turning Tool Holder Code System (ISO Standard)
01. Application: External Turning Tools Shank
02. ISO Designation:DCLNR/L2525M12

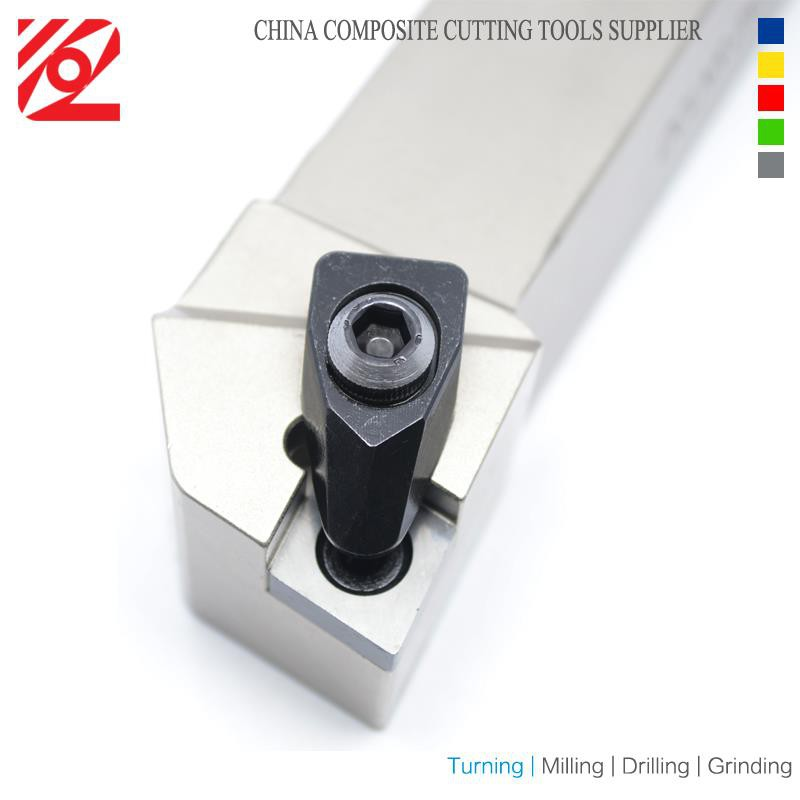

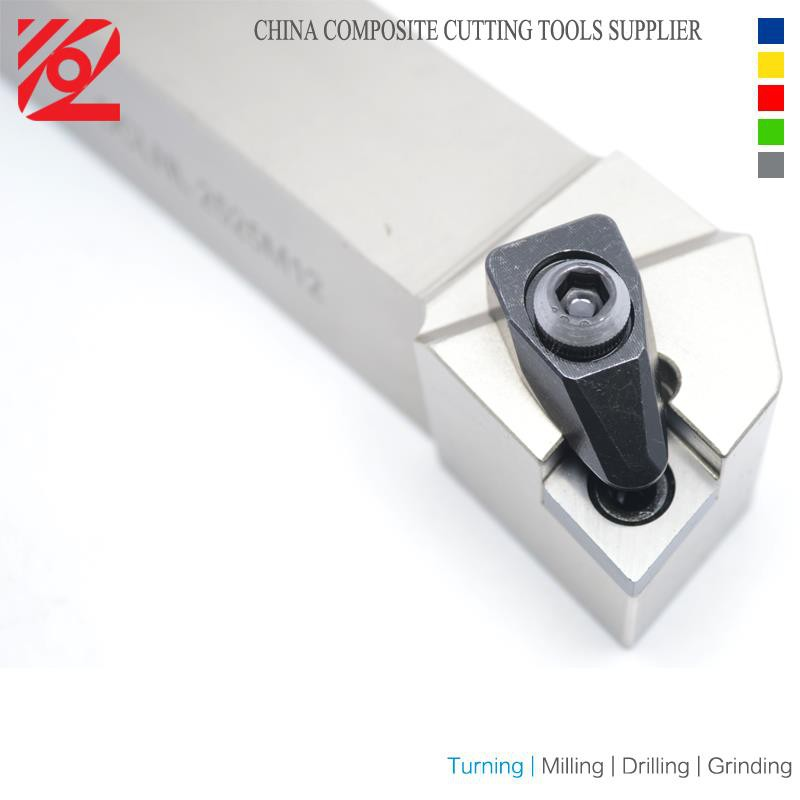

03. Clamping Method: Top and hole clamping
04. Available Inserts: CNMG120404/08/12
05. Approach Angle: 95 Degree
06. Clearance Angle of Inserts: 0 Degree
07. Size of Shank: H25mm*W25mm*L150mm
08. Material: 42CrMo(Alloy Spring Steel)
09. Hardness: HRC45-50
10. Color: Grey
11.Net Weight: 810g
12.Package:Neutral Packing
Features of External Turning Tool Holder

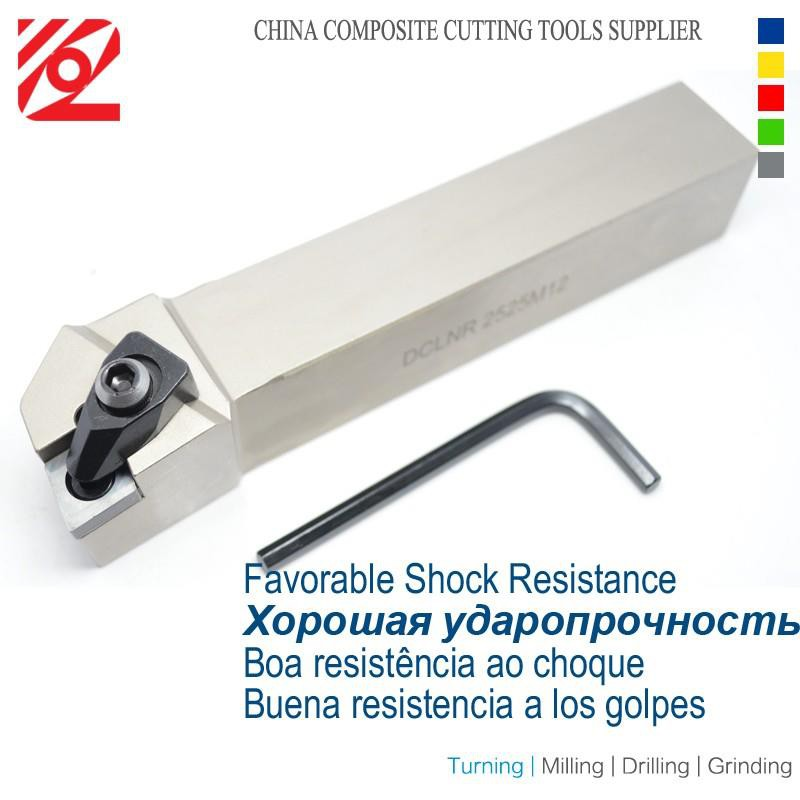

01. The tool holder is made from the good alloy spring steel (42CrMo). Favorable shock resistance and improves the surface roughness of work-piece.
02. Integral forging processing, excellent tensile strength and rigidity. To achieve the steady machining and the long service life of tools.
03. To be manufactured by High-precision CNC machine center and MAZAK equipment
04. Strictly implement the total quality management system, 100% inspection; we use the feeler blade (0.01mm) to inspect the slot of inserts, to make sure the inserts and tool holder are closely attached.
05. Advanced NIHON Heat Treatment from Japan, to make sure the hardness uniformity of the tool holder.
06. Antirust and corrosion resistance, the surface of tools are planted with nickel, it is beautiful and durable.
07. Good quality Accessories, it is not easily damaged in the bad cutting condition.
