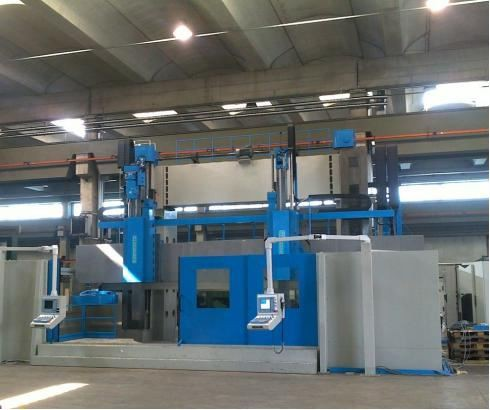

CNC Double Column Vertical Lathe Machine: Machining diameter: 2500-16000mm
| Quantity: | |
|---|---|

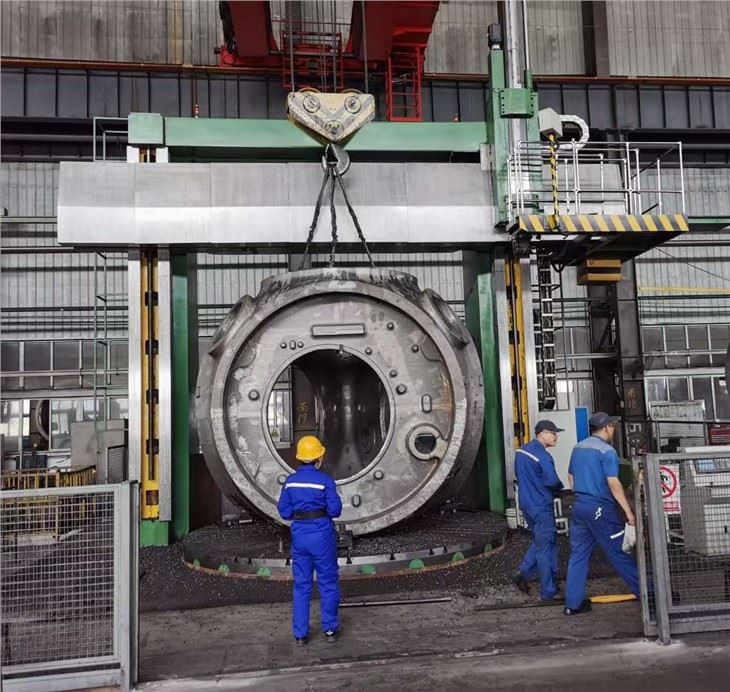

Introduction
CNC vertical lathe CK52 series CNC Double Column Vertical Lathe Machine is a kind of excellent performance, processes a wide range, high production efficiency, and advanced equipment.

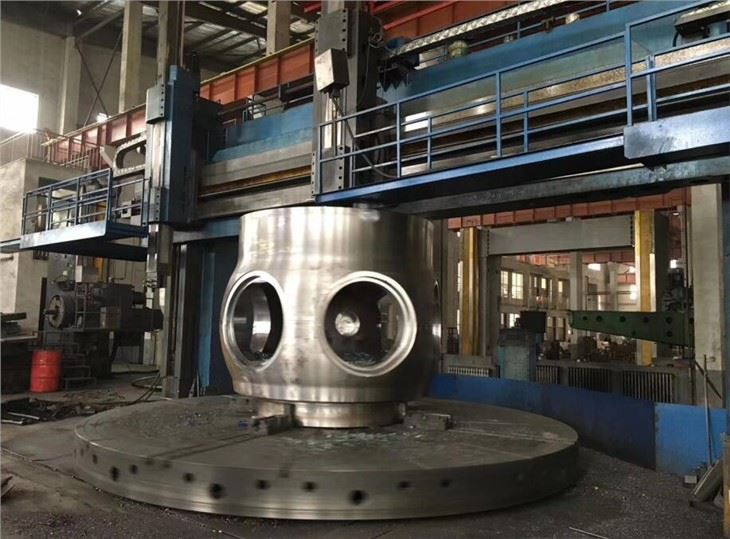

The lathe is mainly suitable for high-speed steel 'carbide cutting tools and ceramic cutting tools, ferrous metal, nonferrous metal box parts nonmetallic parts of inner and outer cylinders, inner and outer conical surface, thread, circular arc surface and rough finish machining of the complex curved surface.
This product is of high precision, large stiffness, long service life, good vibration resistance, suitable for tell cutting, etc.
Feature
1. CNC Double Column Vertical Lathe Machine is a high-tech mechanics product with high Dynamic and static rigidity,
2. Electric parts: Schneider, SIEMENS, FANUC
3. The hydraulic system includes a hydraulic station hydraulic system, worktable static pressure system, main drive transmission system, beam clamping hydraulic system, and vertical tool rest ram hydraulic balance system.
4. The hydraulic system of this machine consists of the main drive speed change system, the vertical tool post hydraulic balance system, the beam clamping and loosening system, the main drive lubrication system, and the worktable hydrostatic pressure guideway system.
5. The horizontal and vertical movements are driven by AC servo motors, which are driven by gears and lead screws to realize the horizontal and vertical movement of the tool post.
6. This product is of high precision, has large stiffness, has a long service life, good vibration resistance, is suitable for tell cutting, etc. The method of the CNC system adopts Siemens, FANUC, Hyde Mitsubishi, or other systems selected by the user. The main motor can choose an AC servo.
Products Specification
The CNC Double Turret Vertical Lathe can be equipped with an axis
Inside the ram is a boring and milling spindle, which is driven by a Siemens/FANUC AC spindle motor.
Item | Unit | CK5225 | CK5235 | CK5240 | CK5250 | CK5263 | CK5280 | CK52100 | CK52125 |
Max. Turning diameter | mm | 2500 | 3500 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 |
Max. Workpiece height | mm | 1600/2000 /2200 | 1600/2000/ 2200 | 1600/2000/ 2200 | 4000 | 4000 | 4000 | 4000 | 5500 |
Worktable diameter | mm | 2250 | 2850 | 3150 | 4500 | 5700 | 7100 | 7500 | 7500 |
Max. Worktable weight | t | 10/16 | 10/16/20/32 | 10/16/32 /40/50/63 | 32/40/50 /63150 | 63/80 /100/150 | 100/125/150 | 150/250 | 250 |
Worktable rotation step | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | |
Worktable rotation speed | r/min | 2~63 | 2~63 | 2~63 | 0.32~32 | 0.32~32 | 0.32~32 | 0.2~20 | 0.16～16 |
Max. Worktable torque | KN·m | 63 | 63 | 63 | 150 | 150 | 150 | 640 | 640 |
Max. Turning Torque of Tool post | KN | 53 | 53 | 53 | 63 | 63 | 63 | 125 | |
Right tool feeding range | mm/min | 0.25~90 | 0.25~90 | 0.25~90 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~500 |
Right tool post rapid movement | mm/min | 1550 | 1550 | 1550 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post rapid movement | mm/min | 5000 | 5000 | 5000 | 4000 | 4000 | 4000 | 4000 | 4000 |
Left tool post feeding range | mm/min | 1-2000 | 1-2000 | 1-2000 | 0.10~500 | 0.10~500 | 0.10~500 | - | 0.10~1000 |
Swing angle of tool post | ±30º | ±30º | ±30º | - | - | - | - | - | |
Tool section | mm | 40×50 | 40×50 | 40×50 | 280x280 | 280x280 | 280x280 | 80x80 | 100x100（Max） |
Ram section | mm | - | - | - | - | - | - | 320x320 | 400x400 |
Beam travel | mm | 1250/1650/ 1850 | 1250/1650/1850/2150/2800 | 1250/1650/1850/2150/2800/3500 | 2150/2800/3000/4500 | 3000/3500/4500 | 3000/3500/4500/5000 | 3250/3750/4500/5000 | 4000/4500/ 5000 |
Beam lifting speed | mm/min | 350 | 350 | 350 | 410 | 410 | 410 | 300 | 300 |
Main motor power | kW | 55 | 55 | 55 | 75/90 | 90 | 90/132 | 132 | 132 |
Weight | t | 41 | 45 | 47 | 200 | 215 | - | - | 465 |
