Swing over bed: 350mm, 400mm, 450, 500mm, 600mm Spindle Bore: 65mm, 80mm(D6)
| Quantity: | |
|---|---|
Product Introduction of Manual For Lathe Machine
High-Performance 3-Point Support Spindle
CJ-B/C is fitted with super-precision taper roller bearing.
Increased User Convenience
Use of levers makes it easy to operate the carriage, the brake pedal extends the scope of operation.
High-Rigidity Bed
The bed has been designed to achieve optimum shock and vibration absorption, and its sliding surface has undergone heat-treatment and grinding.
It is manufactured with rules of ISO and CE principle.

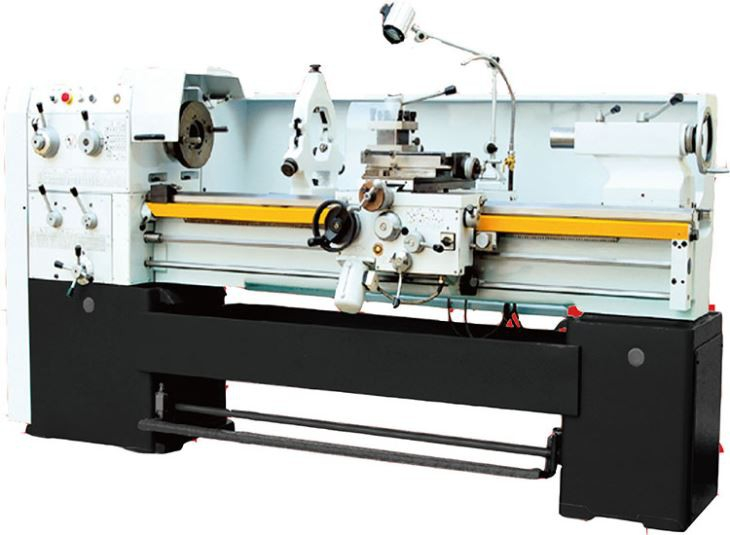

Specification of Manual For Lathe Machine
Model NO. | CJ6236B/C | CJ6240B | CJ6245B | CJ6250B | CJ6260B |
Swing over bved | Φ360mm (16’’) | Φ400mm (18’’) | Φ450mm (18’’) | Φ500mm (20’’) | Φ600mm (24’’) |
Swing over carriage | Φ185mm (7-1/4’’) | Φ225mm (9’’) | Φ325mm (1-1/5’’) | Φ325mm | Φ360mm (14’’) |
Max. Swing in gap | Φ490mm (20’) | Φ530mm (21’’) | Φ580mm (23’’) | Φ630mm(25’’) | Φ730mm (29’’) |
Max. Length of workpiece | 1000/1500/580mm | ||||
Effective gap length | 260mm | ||||
Bed width | 330mm | ||||
Spindle bore | Φ65mm(B)/Φ80mm(D6)(C) | ||||
Spindle taper of bore | Metric 70 | ||||
Spindle number speed | 15 steps | ||||
Spindle range of speed | 20-1800rpm | ||||
Threads metric pitches | 0-28mm/66 | ||||
Threads imperial pitches | 1-56TPI/66 | ||||
Thread diametral pitches | 8-56d/33 | ||||
Threads module pitches | 0.5-3.5mm/33 | ||||
Range of feeds longitudinal | 0.072-4.036mm | ||||
Range of feeds cross | 0.036-2.019mm | ||||
External diameter of the tailstock quill | Φ65mm | ||||
Max. Traverse of the tailstock quill | 120 | ||||
Quill taper | NO. 5 (morse) | ||||
Max. Travel of compound rest | 130mm | ||||
Max. Cross slide travel | 305mm | ||||
Max. Size of tool shank(WxH) | 20x20mm 25x25mm | ||||
Power of main motor | 7.5kw | ||||
Over all size(LxWxH) | 2420(2920x3460)x 1150x1800mm | ||||
Net weight: | 1520/1750 | ||||

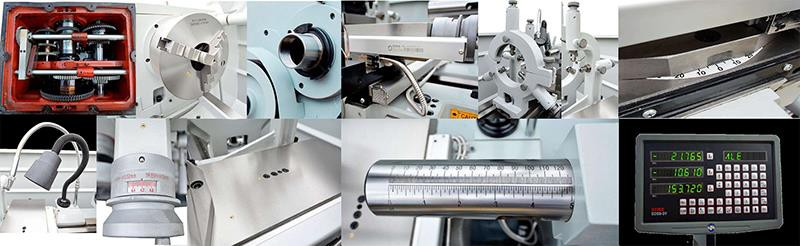

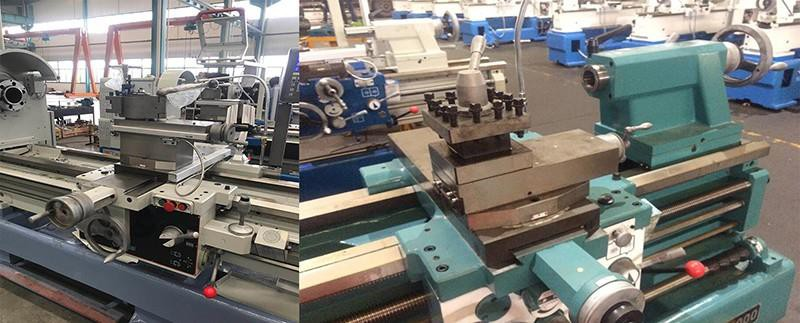

Details

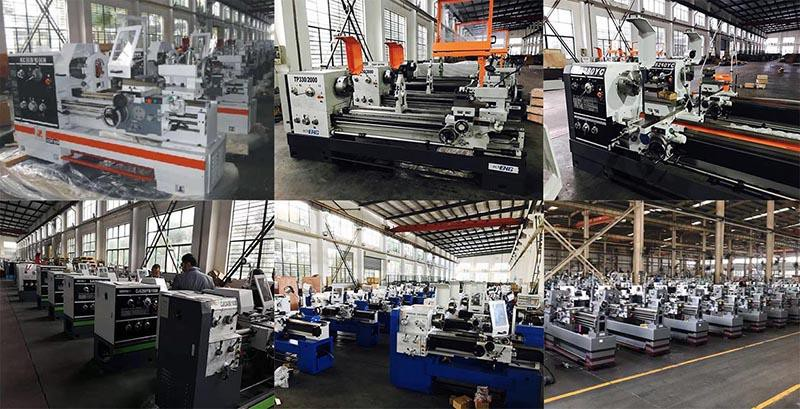

Manufacturing facilities
Glance of workshop

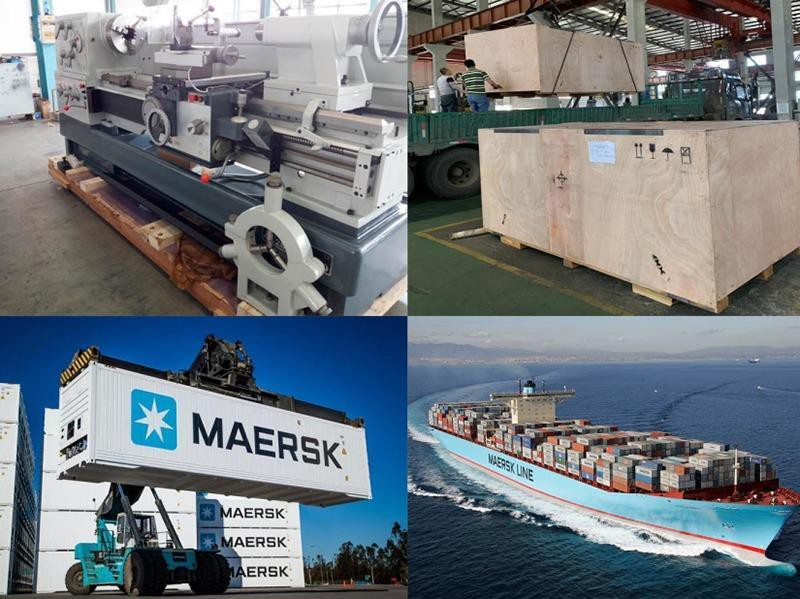

Package and Shipping of Manual For Lathe Machine
