Turning operations on a CNC lathe are fundamental to machining processes, where material is removed from a rotating workpiece using cutting tools. The primary objective is to create cylindrical parts with precise dimensions and surface finishes. CNC lathes are highly versatile, capable of performing a variety of operations such as facing, threading, drilling, and grooving. The choice of tools and inserts plays a critical role in the efficiency and quality of these operations.
The tools used in turning operations on CNC lathes can be broadly categorized into two types: cutting tools and inserts. Cutting tools are typically made from materials like high-speed steel (HSS), carbide, and ceramics. Inserts, on the other hand, are replaceable cutting edges that are clamped onto tool holders. These inserts come in various shapes and geometries, each suited for specific types of turning operations.
High-speed steel tools are known for their sharpness and affordability. They are primarily used for non-abrasive materials and applications requiring custom profiles. However, HSS tools wear out quickly and require frequent sharpening, making them less suitable for high-volume production.
Carbide tools are more durable and wear-resistant compared to HSS tools. They are available in various forms, including solid carbide, carbide-tipped, and carbide inserts. Carbide tools are ideal for high-speed machining and can handle tougher materials. The crystalline structure of carbide varies among manufacturers, affecting the tool's performance in terms of heat resistance, vibration, and impact.

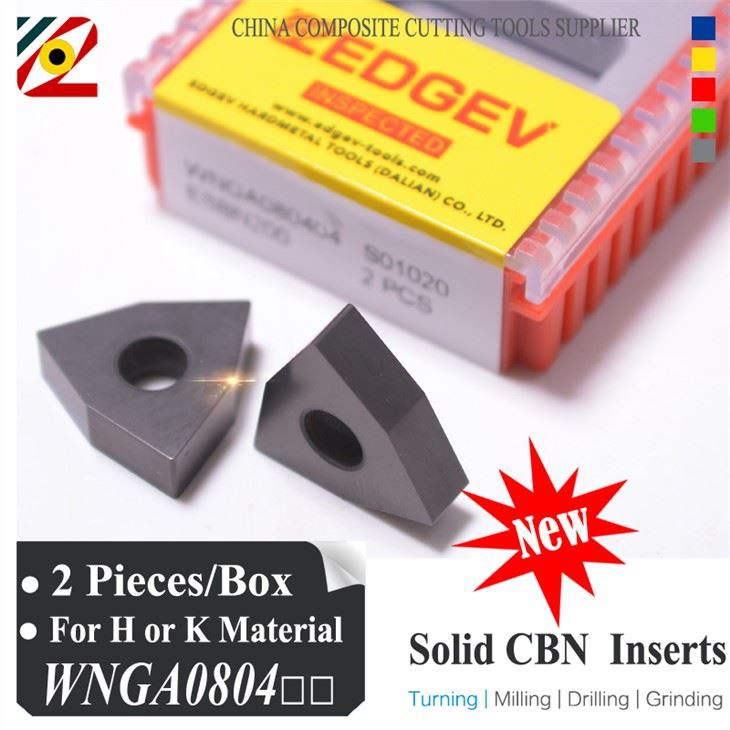

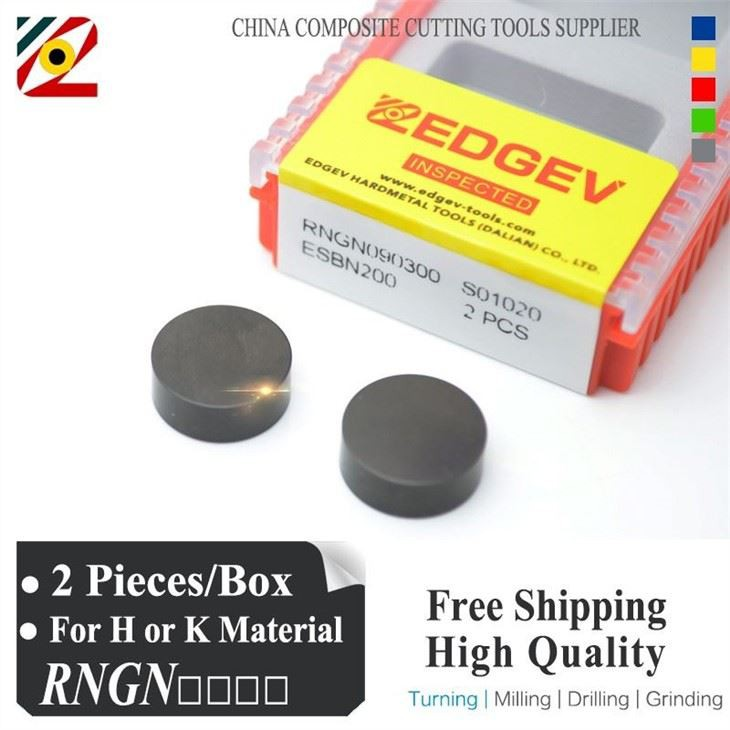

Ceramic and Cubic Boron Nitride (CBN) tools are used for hard turning operations. These tools are highly resistant to wear and can operate at higher cutting speeds. CBN tools, in particular, are effective for machining hardened steels and superalloys. Despite their higher cost, the longevity and performance of CBN tools can justify the investment, especially in applications where eliminating secondary operations like grinding is beneficial.
Inserts are critical components in turning operations, providing the cutting edge required to remove material from the workpiece. They come in various shapes, sizes, and geometries, each designed for specific applications. Commonly used inserts include CNGA, DNGA, VNGA, CNMP, and TNG styles for hard turning, and CCMT, CPGM, and DCMT for positive inserts.
Negative inserts have a negative rake angle, providing robust support to the cutting edge, which is essential for high-speed operations and heavy cuts. Positive inserts, on the other hand, have a positive rake angle and are used for lighter cuts and finishing operations. The choice between negative and positive inserts depends on the specific requirements of the turning operation, including the material being machined and the desired surface finish.
The geometry of an insert affects its cutting performance and durability. Common geometries include:
CNGA: Suitable for roughing and finishing operations on hard materials.
DNGA: Used for general-purpose turning and profiling.
VNGA: Ideal for fine finishing and precision turning.
CCMT: Positive insert for light to medium cuts.
CPGM: Positive insert for finishing operations.
DCMT: Versatile insert for a range of turning applications.
Selecting the right tool for turning operations involves considering several factors, including the material of the workpiece, the type of operation (roughing or finishing), the required surface finish, and the machine's capabilities. The following are key considerations:
Different materials require different cutting tools and inserts. For example, softer materials like aluminum can be machined effectively with HSS tools, while harder materials like stainless steel and superalloys require carbide or CBN tools.
Roughing operations, which involve removing large amounts of material quickly, require tools with high durability and wear resistance. Finishing operations, which focus on achieving a smooth surface finish, require tools with sharp edges and high precision.
The desired surface finish of the workpiece influences the choice of tool and insert. Finishing operations typically use inserts with a positive rake angle and fine geometries to achieve a smooth surface.
The capabilities of the CNC lathe, including its speed, power, and rigidity, also affect tool selection. High-speed lathes can benefit from carbide and CBN tools, while older or less rigid machines may perform better with HSS tools.
In conclusion, the most commonly used tools for turning operations on a CNC lathe are carbide tools and inserts. These tools offer a balance of durability, wear resistance, and cutting performance, making them suitable for a wide range of materials and applications. While HSS tools and ceramic/CBN tools have their specific uses, carbide tools remain the go-to choice for most turning operations due to their versatility and efficiency. Understanding the different types of tools and inserts, along with the factors influencing their selection, is crucial for optimizing turning operations and achieving high-quality results.
