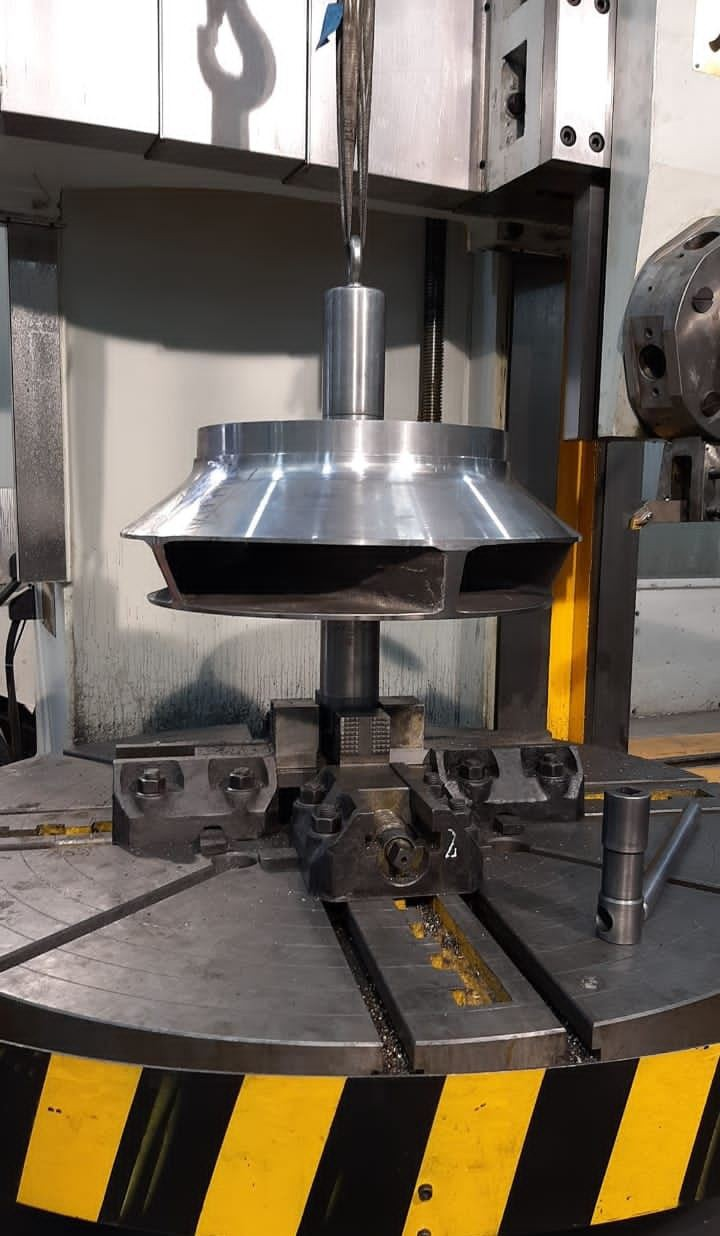

Vertical CNC Lathe Machine Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Parameter of Vertical CNC Lathe Machine
Customer: SIEMENS, ITT
Vertical CNC Lathe Machine can be equipped with C axis for milling and boring function.
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | steplesss | steplesss | steplesss | 1steplesss | steplesss |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Features of Vertical CNC Lathe Machine
1. The column base of single column Vertical CNC Lathe Machine joint behind the workbench, is the joint structure. Compact structure, good thermal stability of machine tool, good stability of precision.
2. Main transmission is driven by a set horizontal-spindle servo motor, main motor and horizontal-spindle stepless gear-box can realize different turning speed by horizontal-spindle mechanism.
3. Worktable adopts integrated-type, high-rigidity, high-precision and fixed-type short spindle structure, equipped with a set high-precision thrust ball bearing and a set double row cylindrical roller bearings.
4. The compact structure can bear radial load, axial load and overturning moment, under overloading type elastic deformation small, to improve the precision of the rotation and loading capacity.
