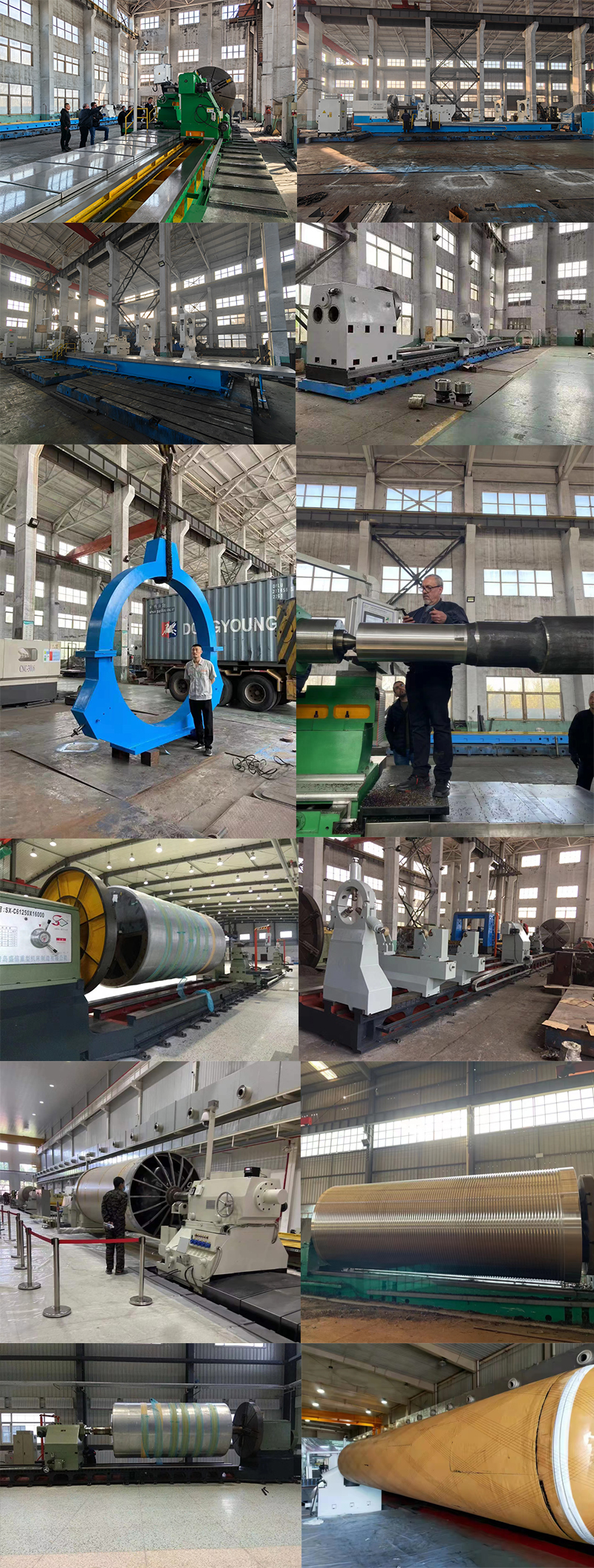

Feature of Heavy Duty Horizontal CNC Lathe
1.The Heavy Duty Horizontal CNC Lathe is controlled by a microcomputer and/stepping servo motor drive
numerical control lathe, are turning cylinder, conical surface, circular arc surface, inner hole cutting processing various thread (including the taper thread), and other functions.According to user needs, for user reference choice
various self-diagnostic functions.
2.The Heavy Duty Horizontal CNC Lathe adopts the split type layout, spindle box, transmission division,
limited to avoid the gearbox heat source on the thermal deformation of the spindle, reduce the gear vibration on the spindle motion directly influence, improve the accuracy of the machine tool.
3. One-piece casting
Products Specification of Heavy Duty Horizontal CNC Lathe
Parameter | Unit | CK61160 | CK61200 | CK61250 | CK61300 | CK61350 | CK61400 | CK61450 | CK61500 |
Swing over bed | mm | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
Swing over slide | mm | 1200 | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
Distance between center | m | 3-25 | 3-25 | 3-25 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 |
Guideway width | mm | 1100 | 1600 | 1700 | 2000 | 2450 | 3000 | 3000 | 3500 |
Spindle diameter | mm | 200-300 | 200-300 | 200-500 | 200-800 | 200-800 | 200-800 | 200-800 | 200-900 |
Tailstock quill diameter | mm | 150-300 | 150-300 | 200-500 | 200-800 | 200-800 | 200-800 | 200-800 | 200-900 |
Spindle speed | RPM | 2-150 | 2-150 | 2-150 | 2-80 | 2-80 | 2-80 | 20-80 | 2-60 |
Main motor power | kW | 15-45 | 15-45 | 30-75 | 30-75 | 45-90 | 75-110 | 75-110 | 90-132 |
Rapid speed | RPM | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
Tool turret | mm | 240*240 | 280*280 | 300*300 | 320*320 | 320*320 | 380*380 | 380*380 | 400*400 |
Loading weight | T | 5-20 | 10-30 | 10-30 | 30-80 | 30-100 | 30- |
