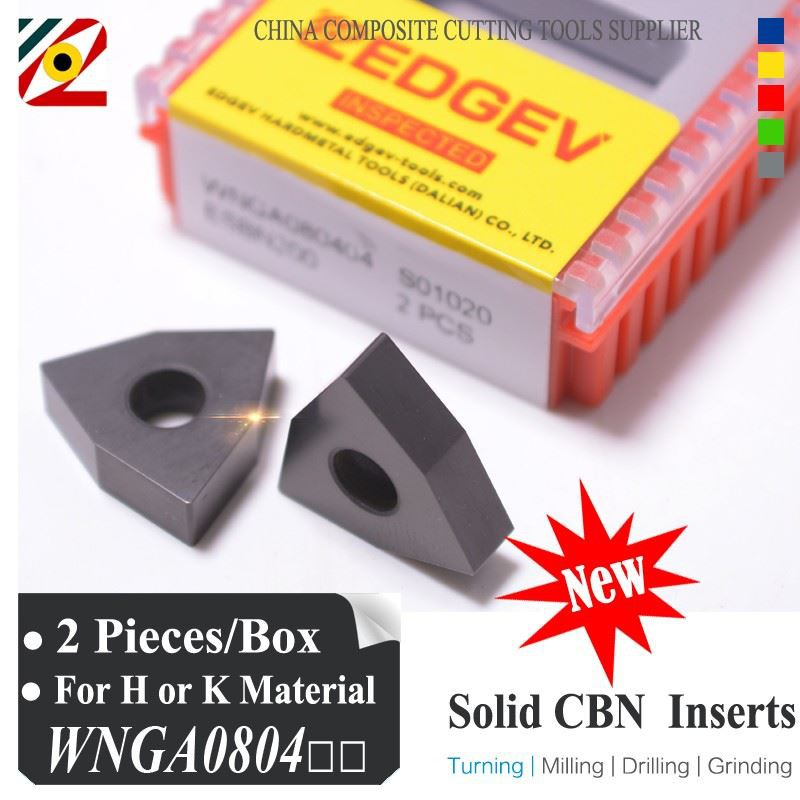

EDGEV Boron Nitride Solid CBN Inserts WNGA080404/08 WNMG WNMA Lathe Cutter Turning Cutting Tools Machining H or K
| Quantity: | |
|---|---|
Products Parameters:
01. Brand Name: EDGEV
02. Description: 60 Degree Negative Boron Nitride Solid CBN Inserts
03. ISO Specification:
WNGA080404 S01020 ESBN200 For (H) Hardened Steel
WNGA080408 S02020 ESBN200 For (H) Hardened Steel
WNGA080404 S01020 ESBN500 For (K) Cast Iron
WNGA080408 S02020 ESBN500 For (K) Cast Iron
04. ANSI Specification: WNGA431/WNGA432
05. Material: Cubic Boron Nitride
06. Grade: ESBN200 and ESBN500
07. Features: Excellent wear resistance and excellent impact and shock resistance

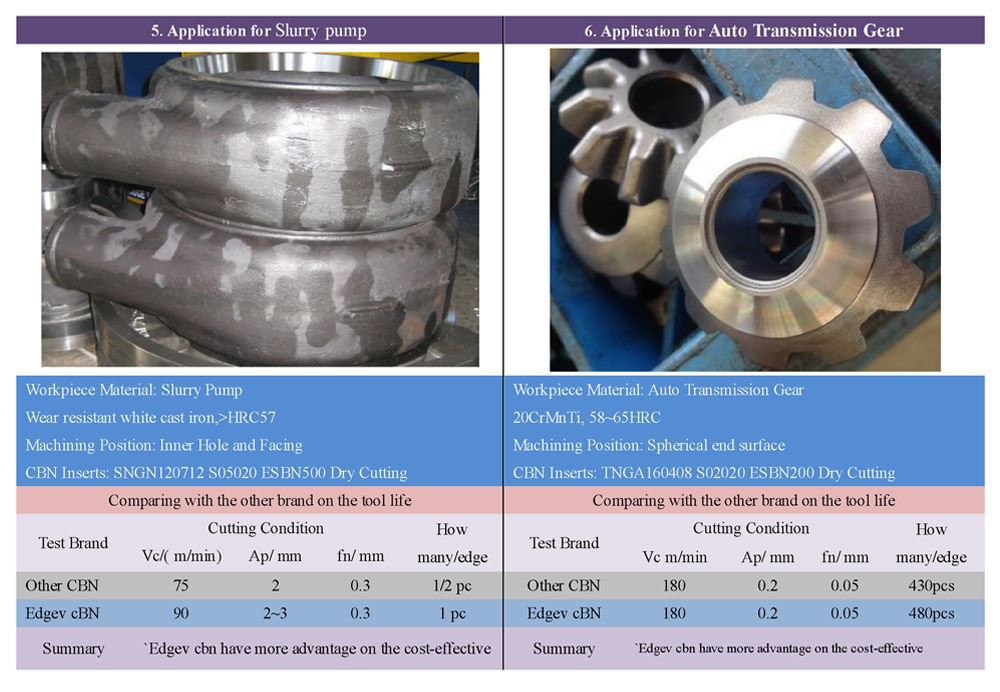

08. Application: Suitable for continuous and interrupted turning and milling with high cutting speed of alloy steel, hardened steel and bearing steel and cast iron.
09. Work Piece Hardness: HRC45~65

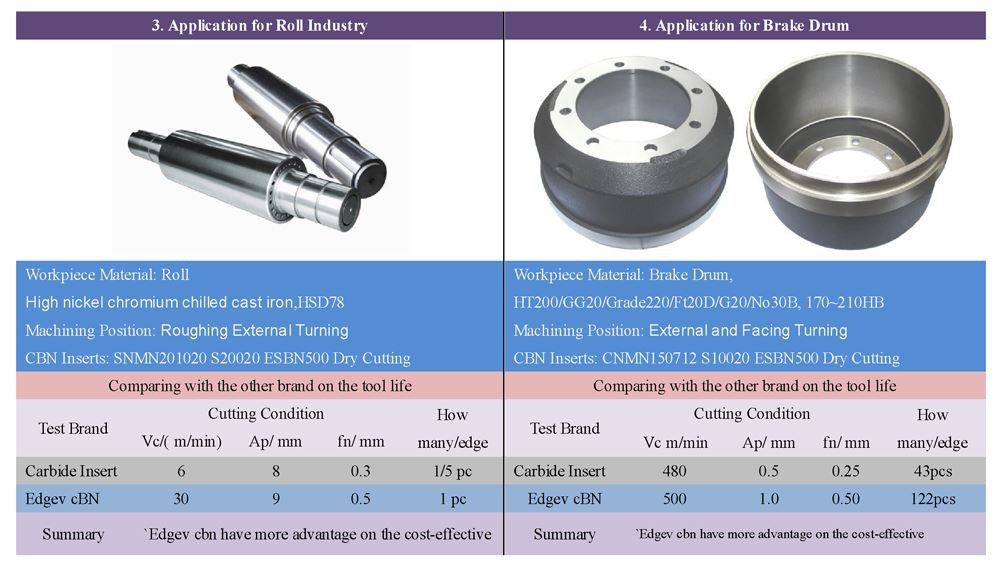

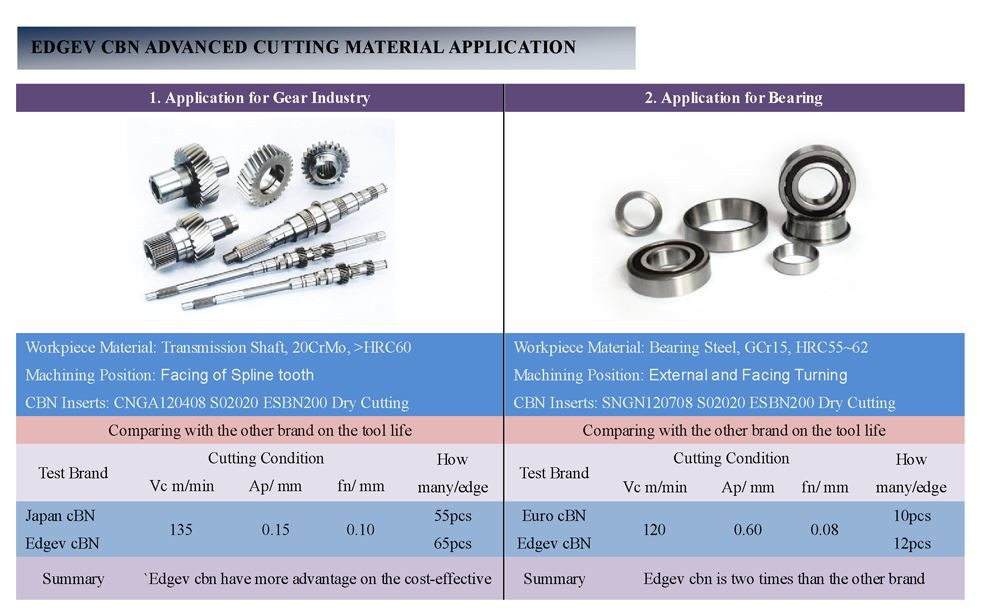

10. Suitable Work Piece: Break disc, Belt pulley, Gear, Bear, Metallurgical roll, Pump, Mining machinery, Brake drum, Brake disc, Metallurgical roll, Big gear, Slewing bearing industry, Gearing industry, bearing industry
11. Color: Black
12. Usage: External Turning Tools
13. Application Range: From Finishing to Semi-finishing
14. Suitable Tool Holder:
15. Place of Origin: China

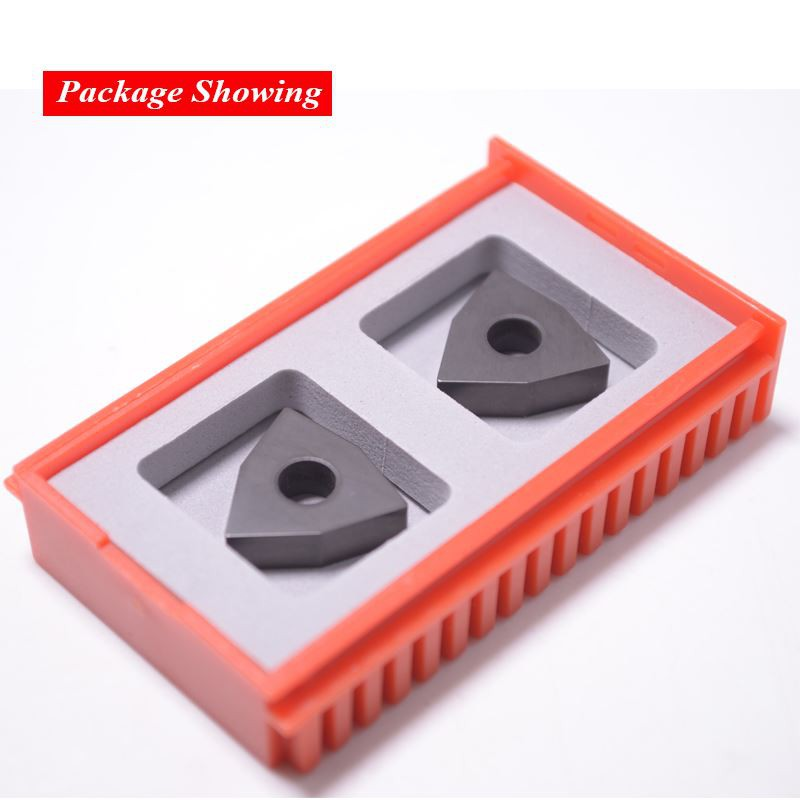

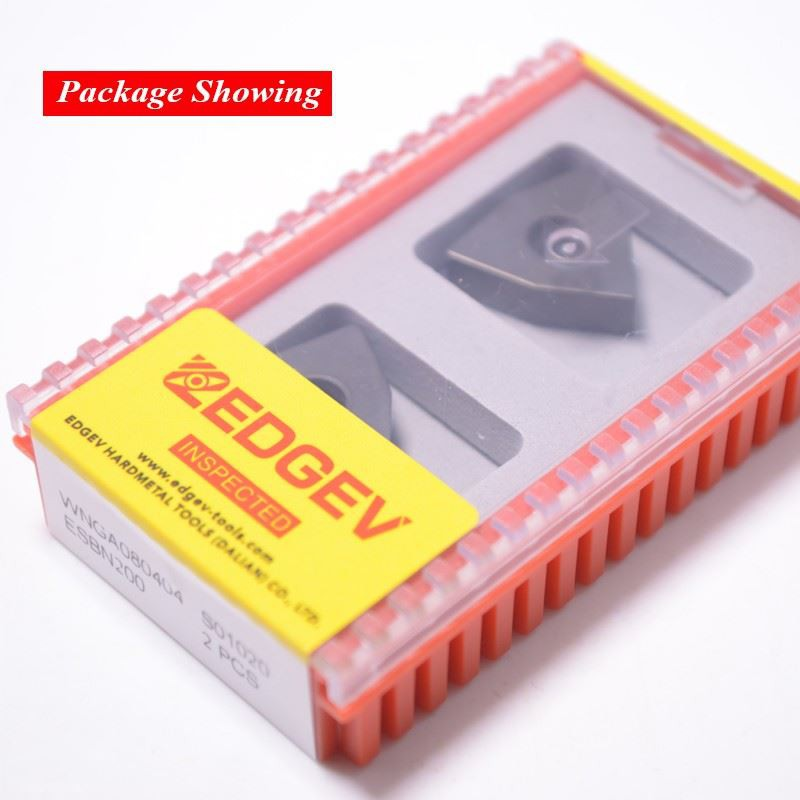

16. Package: 2Pieces packed in 1 Box
17. Net Weight: 8g/Piece
18. Packing: Plastic Box
Our CBN Grades:

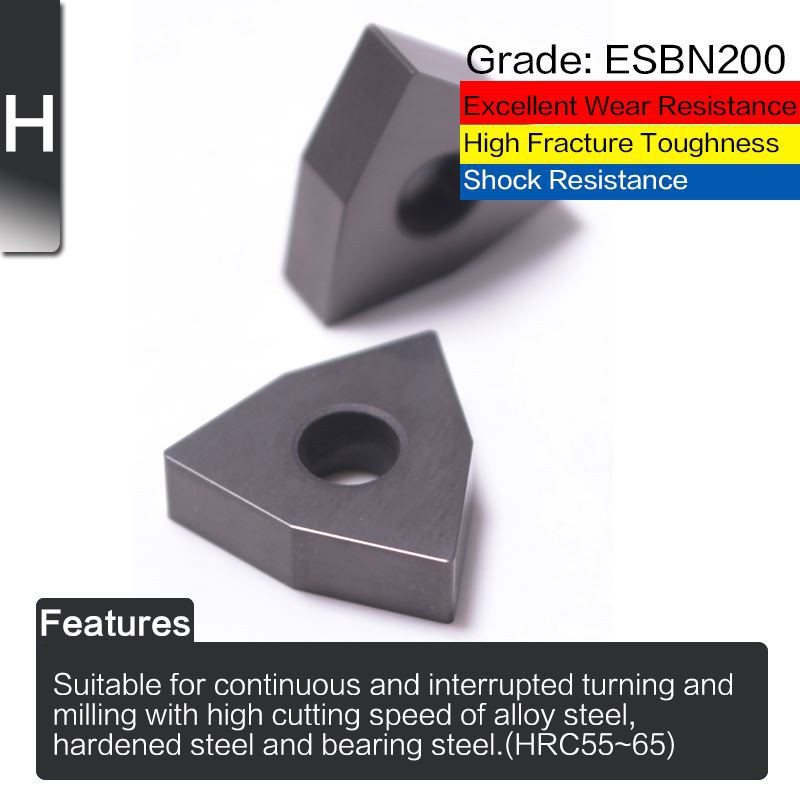

ESBN200: 60% CBN Content, Excellent wear resistance, suitable for high speed cutting continuous of hardened steel, alloy material. Precision processing of hardened bearings
ESBN350: 80% CBN Content, It’s the outstanding common material of balance wear resistance and shock resistance and economy. Low speed cutting of high hardness High-Ni-Cr, high-chromium steel, high-speed steel, harden steel. high speed cutting of gray cast iron, nodular cast iron, low-speed cutting of the carbide tungsten roll ring.

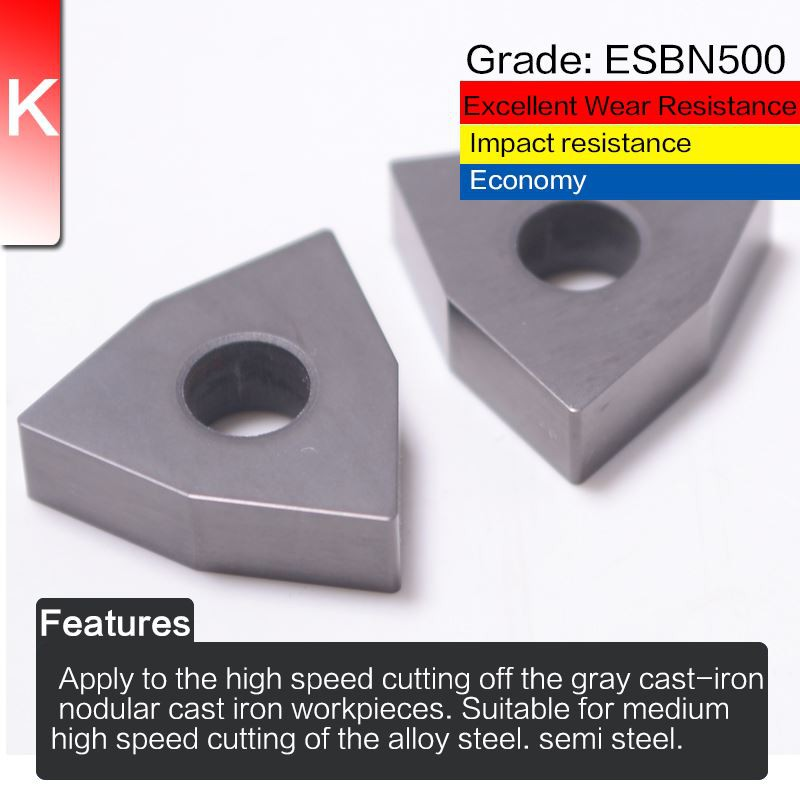

ESBN500: 90% CBN Content, High Wear resistance, impact resistance. Apply to the high-speed cutting of the gray cast-iron work pieces.
