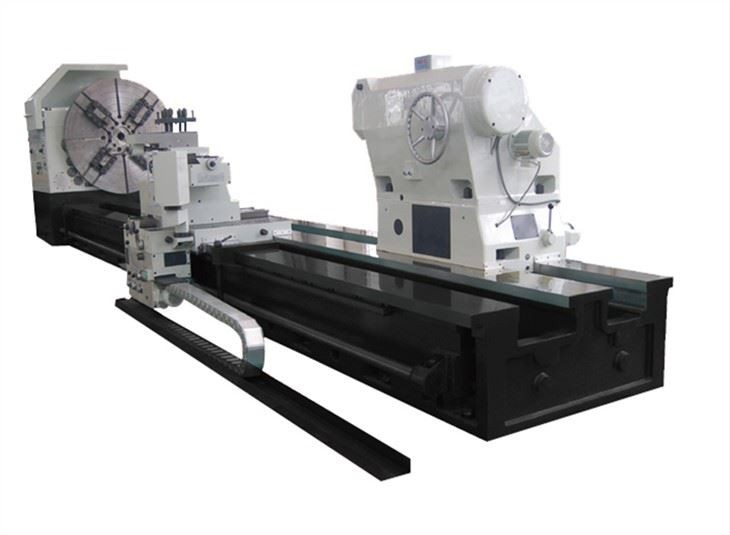

Heavy Duty Manual Lathe Model:CW61100,CW61125,CW61140
| Quantity: | |
|---|---|
Feature of Heavy Duty Manual Lathe
This Heavy Duty Manual Lathe is a heavy-duty universal lathe. It is suitable for high-speed steel and hard alloy steel tools for turning external circles, end faces, grooving, cutting, and boring shaft parts, cylindrical and disc-shaped parts of different materials. Boring the inner and outer cones, and can use the upper tool holder (via the change wheel) to turn various threads with a length of less than 600 mm.
The heavy turning machines from C Series, equipped with CNC SIEMENS, FANUC are high flexibility and productivity machines, with optimal level of power, torque, accuracy and stability, for machining large size parts, such as those employed in sectors of: oil & gas, ethanol, naval, energy power generation, mining and other from base industries. They can be customized according the needs for machining for which they are intended
Data of Heavy Duty Manual Lathe
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 755 | ||
Loading weight | Kg | 6000-20000 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000-10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||
