Introduction of Heavy Duty CNC Lathe Machines
CNC lathe is a lathe with semi-closed loop control function developed by the company according to the latest development trend of CNC lathe in the international market. The machine tool has a wide range of uses and flexible operation. It is suitable for processing various complex-shaped shafts, sleeves, and disk parts, such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, grooving, chamfering, threading, etc.
It is especially suitable for multi-variety, medium and small batch rotation processing, with strong process adaptability, high processing efficiency, low scrap rate, and good consistency of finished products, which can reduce the requirements for the technical proficiency of workers. Easy to program and simple to operate, it is an ideal large-scale machining equipment.
Feature of Heavy Duty CNC Lathe Machines
1. Heavy Duty CNC Lathe Machine: max load capacity can be 8000kgs;
2. It is a two-axis simultaneously controlled machine with semi-closed-loop CNC feedback system.
3. Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, GSK, etc.
4. With full splash-cover(option)
5. Vertical 4-station Electrical Tool Post; Horizontal 6 position ATC Post is available, too.
6. Featuring heavy duty load, high rigidity & reliable design and structure, it is able to meet various machining, ie. ID & OD turning, threading, contouring, taper turning, end facing, etc. on rotary parts (shafts & discs) of ferrous or non-ferrous metals.
7. Wide applications are made in industries such as automotive, power generation, power transformer, steel, casting & foundry milll, general machining, chemical, petroleum, aerospace & aviation, hydro-mechanical, pump, paper machinery, food machinery, motor, electronics, textile machinery, etc.
8. Manufactured always of high-quality machine casting components, the machines are characterized by high torques at the headstock and perfect concentricity. Based on years of experience, each lathe is customized individually to the requirements of the customer. Thus, Herkules will find the right solution for your machining task. Numerous fitting options make our lathes universally applicable – for example to include milling operations.
9. Lubrication system
Centralized automatic forced lubrication.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Parameter of Heavy Duty CNC Lathe Machine
Item | unit | CK61100 | CK61125 |
Swing over bed | mm | 1000 | 1250 |
Swing over carriage | mm | 615 | 865 |
Max. workpiece length | mm | 1000-10000 | |
Guideway width | mm | 755 | 755 |
Spindle taper | mm | 1:120/140 | 1:120/140 |
Chuck | Four jaw 1000 | Four jaw 1000 | |
Spindle speed | r/min | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Spindle end structure | A2/15 | A2/15 | |
Spindle bore | mm | 130 | 130 |
Main motor power ( frequency conversion) | kW | 22 | 22 |
Main transmission | 4-470(FOUR STEP) | 4-470(FOUR STEP) | |
Center height | mm | 500 | 625 |
Min. X/Z feeding increment | mm | 0.001 | 0.001 |
X/Z rapid speed | mm/min | 3000/6000 | 3000/6000 |
Max. X travel | mm/min | 520 | 650 |
Toolpost postiion | V4300X300 | V4300X300 | |
Toolpost position changing time | S | 4.5 | 4.5 |
Tool post re positioning precistion | mm | 0.005 | 0.005 |
Tool section | mm | 45 | 45 |
Tailstock quill diameter | mm | 160 | 160 |
Tailstock quill travel | mm | 300 | 300 |
Tailstock taper | Morse | 6# | 6# |
Machining precision | IT6-IT7 | IT6-IT7 | |
Roughness | Ra1.6 | Ra1.6 | |
Standard configuration | Vertical four postion electric tool post | Vertical four postion electric tool post | |
Optional congfiguration | Vertical six postion electric tool post | Vertical six postion electric tool post | |
Re position of tool post | mm | 0.005 | 0.005 |
Tool section | mm | 32X32 | 32X32 |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |
Item | Unit | CK61400 | CK61160 | CK61180 | CK61200 | CK61220 |
Swing over bed | mm | 1400 | 1600 | 1800 | 2000 | 2200 |
Swing over cross slide | mm | 1000 | 1200 | 1400 | 1600 | 1800 |
Wdith of guideway | mm | 600, 750, 1100 | ||||
Distance between center | mm | 3000-20000 | ||||
Max. workpiece through spindle | mm | 128 | ||||
Spindle bore | mm | 130 | ||||
Taper of spindle bore | A2-15 | |||||
Spindle front bearing diameter | mm | 220/280 | ||||
Spindle taper bore | 140; 1:7,120；1:7 | |||||
Spindle rotation step | Manual 3 gear | |||||
Spindle rotation range | r/min | 3-300, 2-200 | ||||
Main motor power | kW | AC30, AC47/AC45 | ||||
Rapid speed motor power | kW | 2.2 | ||||
Tool section | mm | 45x45 | ||||
Tool Turning Angle | ° | ±90 | ||||
Cross Tool Post Travel | mm | 200 | ||||
Longitudinal Too Post Travel | mm | 400 | ||||
Slide travel | mm | 850/920 | ||||
Longitudinal tool post rapid speed | mm/min | 935 | ||||
Cross rapid speed | mm/min | 1870 | ||||
Longitudinal rapid speed | mm/min | 3740 | ||||
Metric thread kinds/range | mm | 43, 1-120 | ||||
Inch thread kinds/range | T.P.I | 29, 28-3/8 | ||||
Module thread kinds/range | mm | 45, 0.5-60 | ||||
Pitch threads range | D.P. | 25, 1-55 | ||||
Longitudinal feeding kinds/range | m/rev | 56, 0.1-12 | ||||
Cross feeding kinds/range | m/rev | 56, 0.5-6 | ||||
Upper tool post | m/rev | 56, 0.025-3 | ||||
Tailstock quill diameter | mm | 260, 280 | ||||
Tailstock quill taper | 80; 1:7 | |||||
Tailstock quill travel | mm | 300 | ||||
Weight | Kg | 23000T(3000mm) | ||||

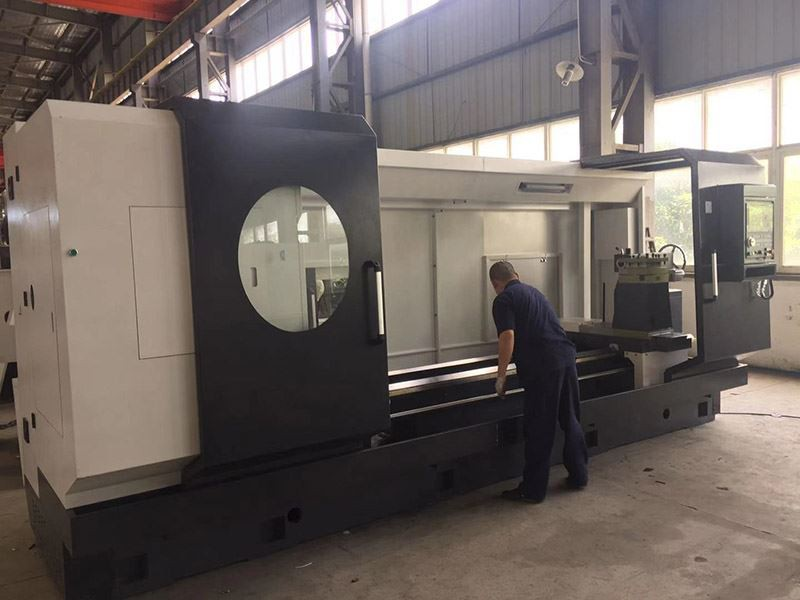

Details
Glance of workshop

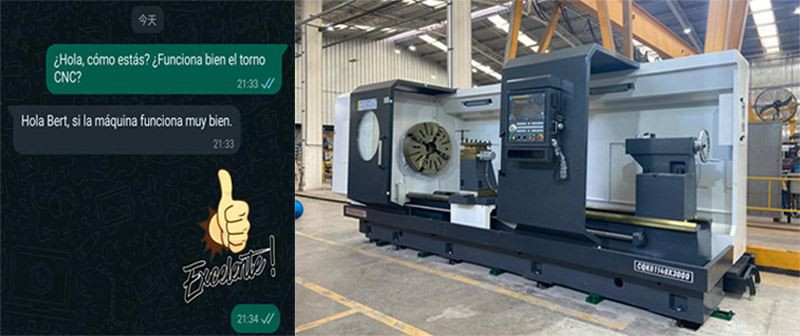

Customer View
Training
1. Training in Manufacturer workshops (for free)
2. Training in buyers company (for charge,normally two or three days needed )
• 1st day: inspection cable connection,the finished foundation is qualified guide customer know each components.
name and functions as well
• 2nd day: Demo and teach user do calibration and use customer workpieces to machine
• 3rd day: review all operation step and learn each parts maintenance method.
Warranty period
The warranty period is 1 year
In the warranty period, Every parts of the vertical lathe is warranted. if some parts need to be replaced due to the quality of product, the company is responsible for free replacement. In the warranty period, if it is not due to product quality of the Vertical lathe, and need company send a technician to fix the Vertical lathes, the appropriate fees should be collected.
Preferential spare parts and technical Services will be provided
Over warranty :
we delivery the component to nearest departure port for free. Customer just pay for the cost price of the components.
Troubleshooting
1. Before delivery :Special QC department check carefully ensure all is qualified with high quality
2. Through see customer actual photos or short video, using discussed group or email or video meeting or phone call give solutions immediately
3. Dispatch engineer go to customer workshops onsite.
