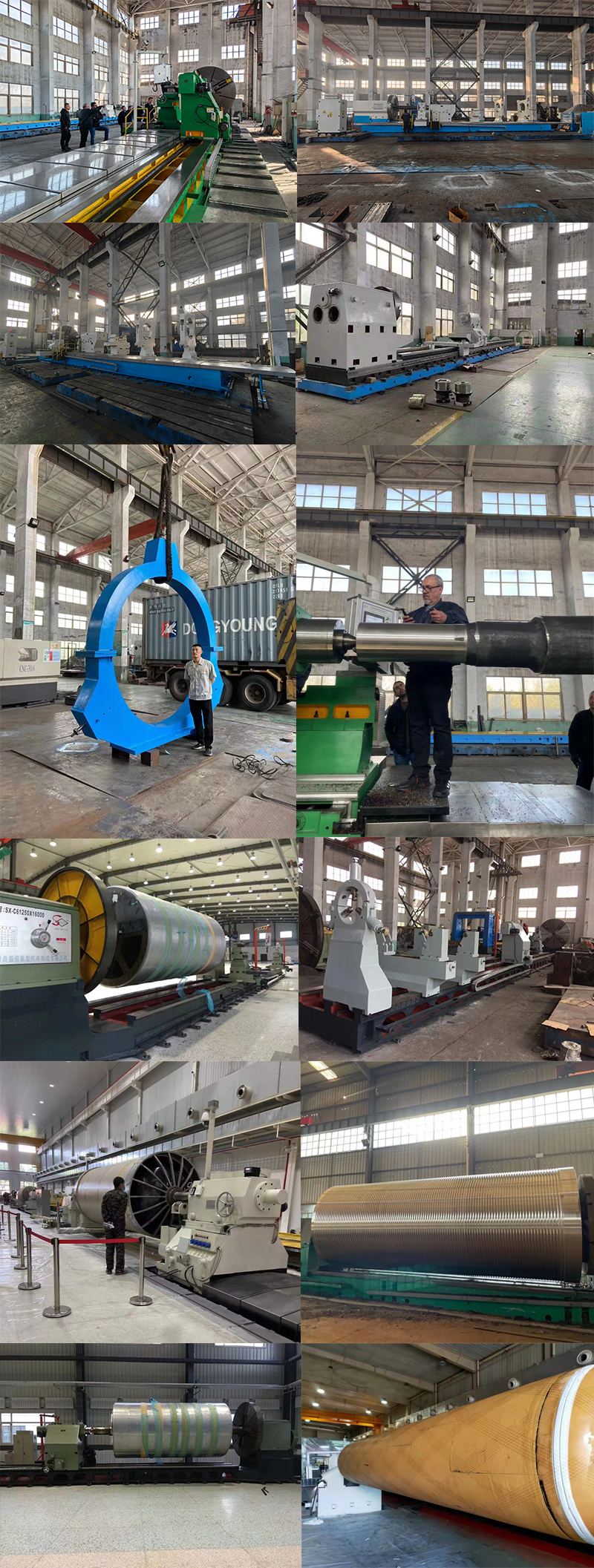

Feature of Heavy Duty CNC Lathe
1.The main shaft has a large diameter and is supported by a precision heavy-duty bearing at three points. The rotation is stable, and it can be both heavy duty turning and fine turning.
2. Protection: Protective measures are taken for both X- and Z-direction screws;
3. The box structure is rigid.
The gears are high-frequency hardened and precisely ground, with high precision, stable operation and low noise.
Automatic forced circulation lubrication makes the transmission system run flexibly and can effectively cool down.
The automatic segmented speed change is controlled by M code, and the automatic stepless speed change within the segment is controlled by S code selection, which can realize stepless speed change and constant linear speed cutting.
4. Centralized automatic forced lubrication.
Lubrication pump used by spindle box is gear pump.
Each ball screw pair and each sliding guide surface are lubricated by a quantitative pressure relief type centralized thin oil automatic lubrication device.
5. The numerical control system adopts the well-known FANUC, Siemens, GSK which can control 2 axes (X, Z) at the same time, and has the functions of linear, arc, thread interpolation and other fixed cycles, and the minimum resolution is 0.001mm.
Products Specification of Heavy Duty CNC Lathe
Parameter | Unit | CK61160 | CK61200 | CK61250 | CK61300 | CK61350 | CK61400 | CK61450 | CK61500 |
Swing over bed | mm | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
Swing over slide | mm | 1200 | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
Distance between center | m | 3-25 | 3-25 | 3-25 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 |
Guideway width | mm | 1100 | 1600 | 1700 | 2000 | 2450 | 3000 | 3000 | 3500 |
Spindle diameter | mm | 200-300 | 200-300 | 200-500 | 200-800 | 200-800 | 200-800 | 200-800 | 200-900 |
Tailstock quill diameter | mm | 150-300 | 150-300 | 200-500 | 200-800 | 200-800 | 200-800 | 200-800 | 200-900 |
Spindle speed | RPM | 2-150 | 2-150 | 2-150 | 2-80 | 2-80 | 2-80 | 20-80 | 2-60 |
Main motor power | kW | 15-45 | 15-45 | 30-75 | 30-75 | 45-90 | 75-110 | 75-110 | 90-132 |
Rapid speed | RPM | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
Tool turret | mm | 240*240 | 280*280 | 300*300 | 320*320 | 320*320 | 380*380 | 380*380 | 400*400 |
Loading weight | T | 5-20 | 10-30 | 10-30 | 30-80 | 30-100 | 30-120 | 30-150 | 50-200 |
