Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Parameter can be customized
| Quantity: | |
|---|---|
Feature

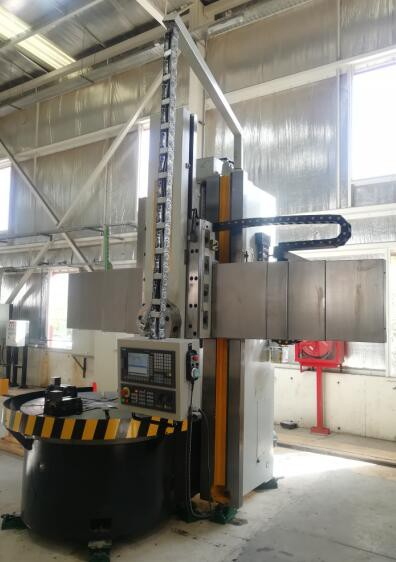

1.CK51-Single Column Vertical Lathe is suitable for all sectors of the machining pump, it can be used for the outer cylinder, round-dimensional
surface, end, grooving, and cutting of rough and fine turning.
2. The vertical beam guideway and ram guideways super audio quenching treatment (HRC≥50), guideway sliding surface laminating process
3. Siemens or FANUC system, electrical parts are made of ultra-high-quality components, specifications (CE standard) wiring
technology, an electrical machine with ultra-high reliability.
4. Pentagonal tool sets high-precision positioning rat tooth plate, extremely rigid
5. Electronic rotary valve, the main transmission stepless mechanical transmission
6. Rail sliding surface plastic-coated treatment to improve wear resistance.
7. Precision grinding gears and spiral bevel gear grinding (6 precision), low noise, stable and reliable operation at high speed.
Products Specification
The vertical lathe can be equipped Single Column Vertical Lather with C axis for milling and boring function
Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details
The key parts which is used for 20 years, match very well.
The guideway is very strong and straight.
Low noise while working
Work piece

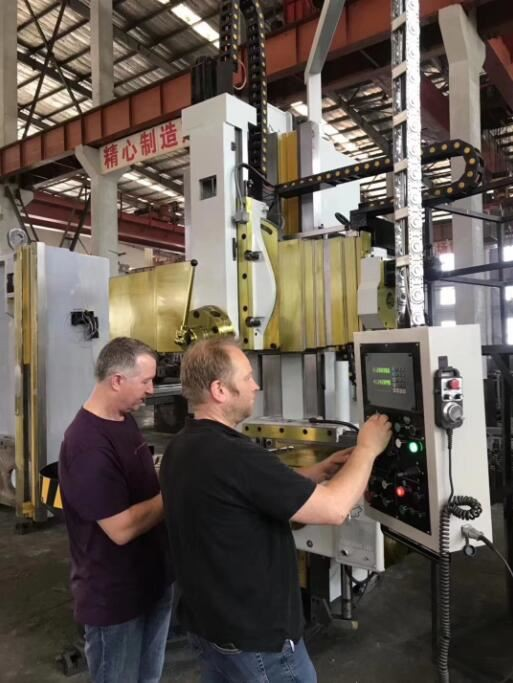

Serious and professional testing
Package and Shipping
Packaging for longer sea worthy shipping
We will assign professional engineer to be your place for installation, English interpreter service is free
Manufacturing facilities...
