A metal lathe is a versatile machine tool used for shaping metal and other materials. One of the critical components of a metal lathe is the part that holds the cutting tool, known as the **tool post**. The tool post is an essential part of the lathe's carriage assembly, and it plays a crucial role in ensuring that the cutting tool is held securely and positioned accurately during machining operations. This article will provide an in-depth understanding of the tool post, its types, and its significance in metalworking.

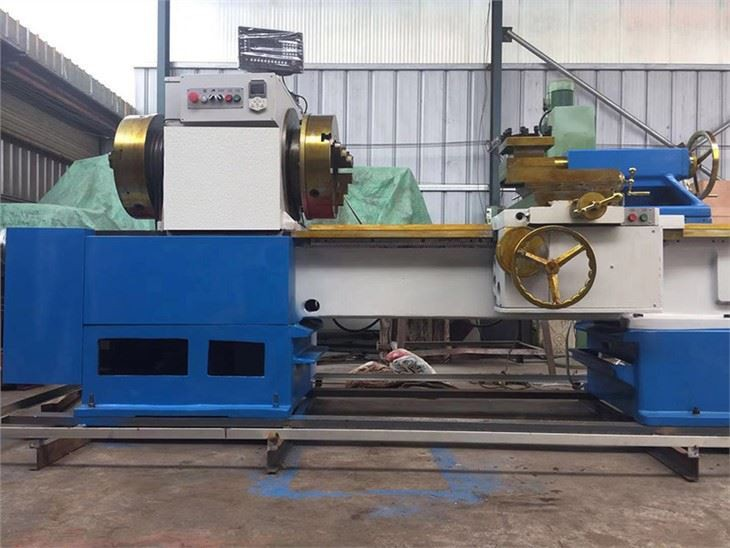

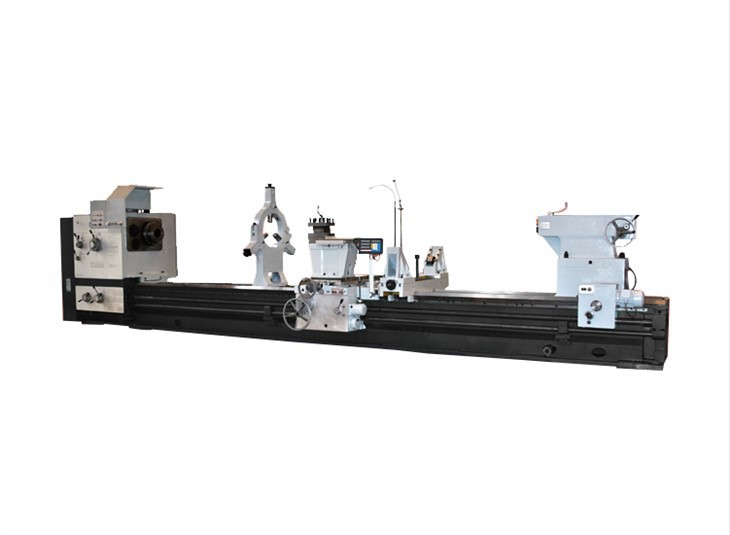

Before delving into the specifics of the tool post, it's essential to understand the basic components of a metal lathe. A typical metal lathe consists of the following main parts:
The headstock is located at the left end of the lathe bed and houses the spindle, which holds and rotates the workpiece. It also contains the motor and gear mechanisms that drive the spindle.
The tailstock is positioned on the right side of the lathe bed and can be moved along the bed's length. It supports the other end of the workpiece and can hold tools such as drills and reamers.
The carriage is a movable assembly that slides along the bed's ways. It supports and moves the cutting tool along the workpiece. The carriage consists of several components, including the saddle, cross-slide, compound rest, and tool post.
The bed is the base of the lathe, providing a stable and rigid foundation for the other components. It has precision-ground ways that guide the movement of the carriage and tailstock.
The tool post is mounted on the compound rest of the carriage and is responsible for holding the cutting tool in place. It allows for precise positioning and adjustment of the tool, ensuring accurate and efficient machining. There are several types of tool posts, each with its unique features and advantages.

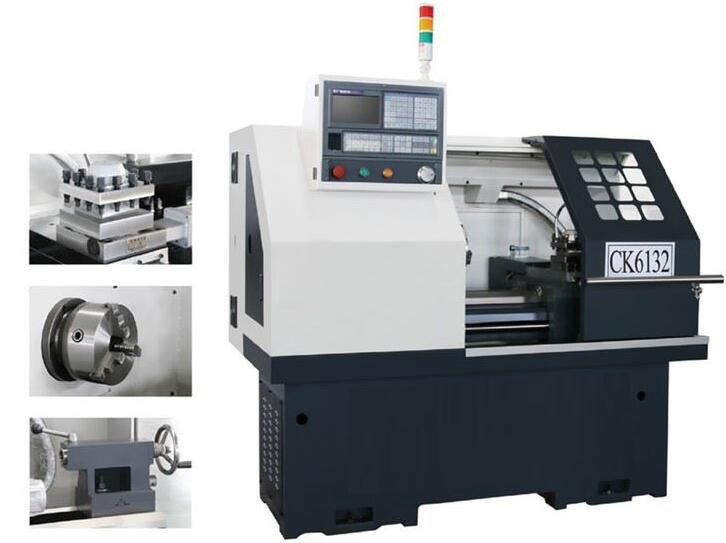

The standard tool post, also known as the four-way tool post, is a common type found on many lathes. It has four tool slots, allowing the operator to mount multiple tools simultaneously. The tool post can be rotated to bring the desired tool into the cutting position. This type of tool post is simple and cost-effective but may require manual adjustments for tool height and alignment.
The quick-change tool post is a more advanced and versatile option. It allows for rapid tool changes without the need for time-consuming adjustments. The tool holders are designed to be easily swapped in and out, making it ideal for operations that require frequent tool changes. Quick-change tool posts come in various sizes and styles, such as the wedge-type and piston-type, each offering different levels of rigidity and ease of use.
The turret tool post, also known as the indexing tool post, features a rotating turret with multiple tool positions. The operator can index the turret to bring the desired tool into the cutting position quickly. This type of tool post is commonly used in production environments where efficiency and repeatability are critical. It allows for the use of multiple tools without the need for manual adjustments, reducing setup time and increasing productivity.
The tool post plays a vital role in the overall performance and accuracy of a metal lathe. Its primary functions include:
The tool post securely holds the cutting tool, ensuring it remains in the correct position during machining. A stable and rigid tool post minimizes tool deflection and vibration, resulting in better surface finish and dimensional accuracy.
The tool post allows for precise positioning and adjustment of the cutting tool. This is crucial for achieving accurate cuts and maintaining consistent dimensions. The ability to adjust the tool height, angle, and orientation ensures optimal cutting conditions for various machining operations.
Different types of tool posts offer varying levels of versatility. Quick-change and turret tool posts, for example, enable rapid tool changes and the use of multiple tools without manual adjustments. This versatility is essential for complex machining tasks and production environments where efficiency is paramount.
In summary, the tool post is a critical component of a metal lathe, responsible for holding and positioning the cutting tool. Its design and functionality significantly impact the lathe's performance, accuracy, and versatility. Understanding the different types of tool posts and their applications can help machinists select the best option for their specific needs, ultimately enhancing their machining capabilities and productivity.
