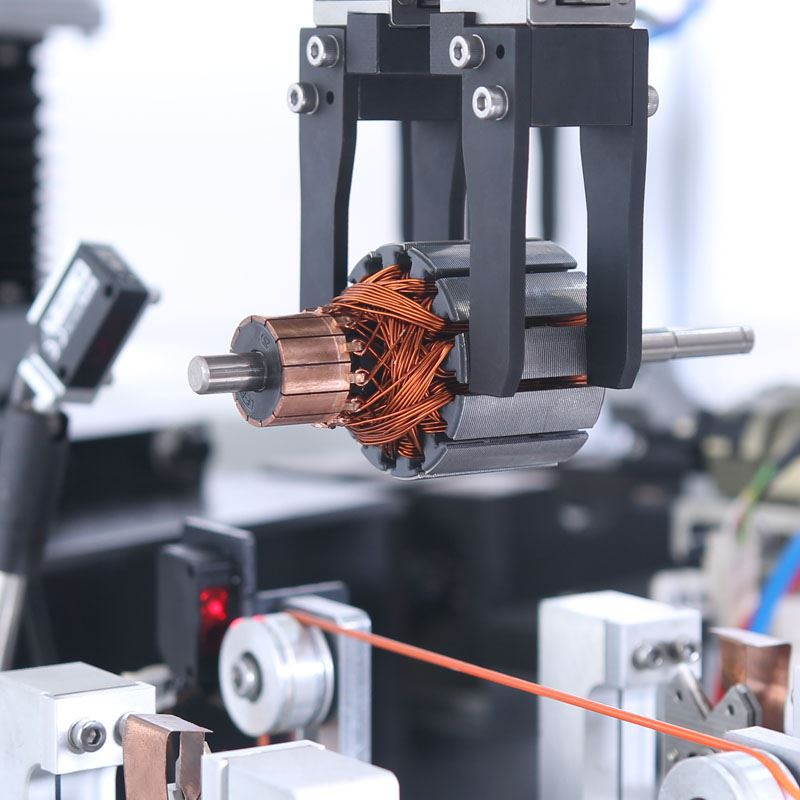

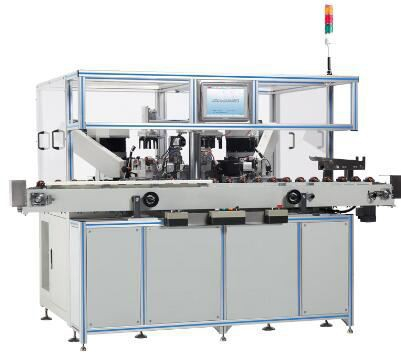

Feature of Five Station Wound Rotor Automatic Balancer

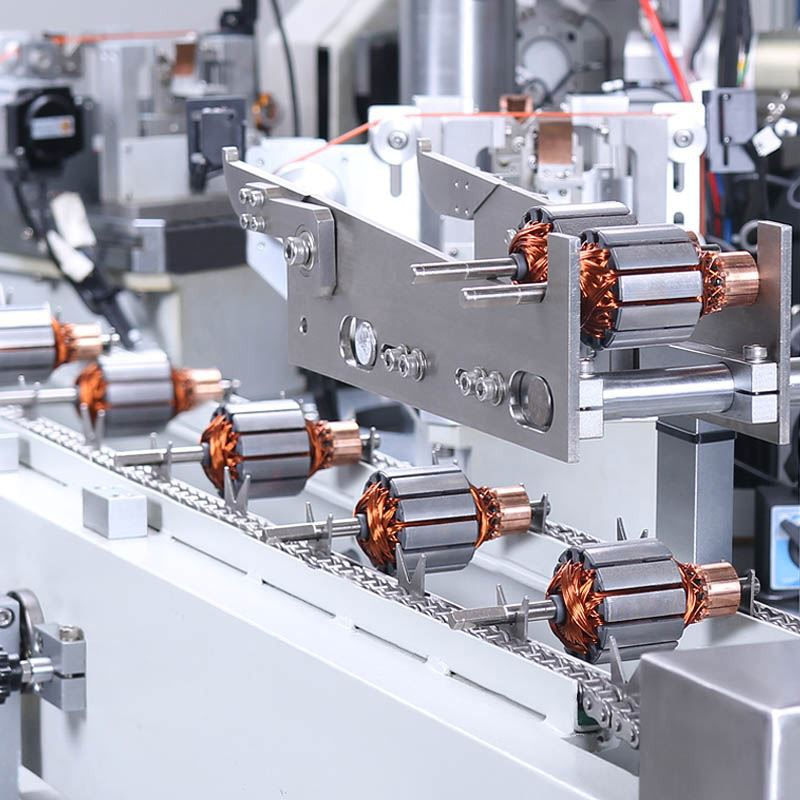

1.Automatic loading and unloading of the assembly line
2.Friendly human- machine interface
3.Wide range of product applications quick and easy product change
4.Rapid production beats a high reduction rate
5.Soft support high-precision balance measurement system
6.Independent research and development of software and hardware equipment can be personalized features
7.Widely uesd in all kinds of household applianceselectric toolsstarter motor rotor balance correctionproduct comes with automatic line in and out of the maerialthe degree of automation is extremely high
Parameter of Five Station Wound Rotor Automatic Balancing Machines
Technical data at a glance | PHWX21 |
Max Weight of Workpiece (kg) | 1.5 |
Max Diameter of Workpiece (mm) | 30～60mm |
Rotor Length (mm) | ≤240mm |
Rotor Lamination Thickness(mm) | φ20～60mm |
Balancing Speed (r/min) | 800～1200rpm |
Balancing Motor Power (kw) | 0.4 KW Servo Motor |
Min Achievable Residual Unbalance Amount (g.mm/kg) | ≤0.2 |
Testing Time (second) | ～9s |
Reduction Rate of Unbalance | ≥90% |
Working Pressure (MPa) | 0.45-0.6 |
Air Consumption | ～40L/min |
Operating Voltage (V) | AC: 380V 3 Phase/50Hz |
Drilling Power (kw) | 0.75*2 |
Total Power (kw) | ～8.9 |
Protection | Phase Sequence Protection, Overload Protection, Air Pressure Monitoring |

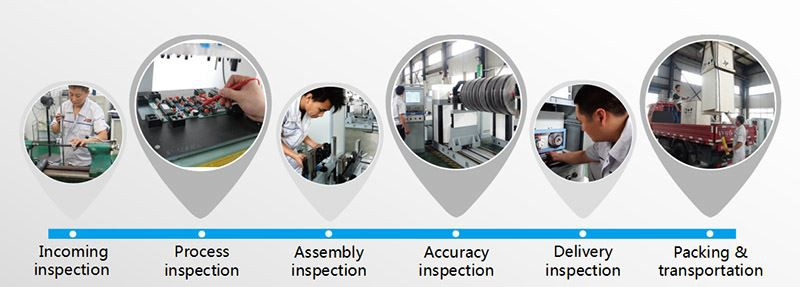

Strict Product Quality Control
Approved Certificates:
