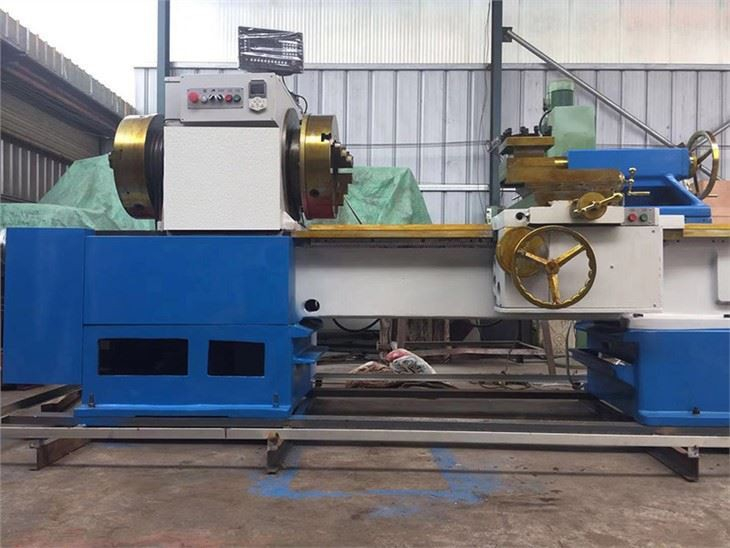

Feature of Driven Shaft Lathes
1. It is specialist for drive shaft repair in small workshop.
2. 2000mm+ shaft can be worked on this lathe.
3. Left hand turning and right hand turning by manual
4. Spindle speed can be adjusted by converter
5. It is easier to maintenance because we use world top brand on this machine.
6. No gear in spindle box.
Data of Driven Shaft Lathes
Item | Unit | Q1325G | Q1313G |
Swing over bed | mm | 630 | 500/400 |
Swing over carriage | mm | 350 | 330/230 |
Guideway width | mm | 550 | 360 |
Spindle bore | mm | 250 | 130 |
Max. OD of workpiece | mm | 245 | 125 |
Max. Turning length | mm | As request | As request |
Max. Working speed | mm | 15-450 | 15-450 |
Toolpost position | 4 position | 4 position | |
Guideway hardness | HRC52 | HRC52 | |
Main spindle power | kW | 7.5kW | 5.5kW |
Chuck O.D. | mm | 500 | 320 |
X/Z feeding | Manual feeding | Manual feeding | |
X travel | mm | 350 | 320/180 |
Z Travel | mm | 1000+ | 1000+ |

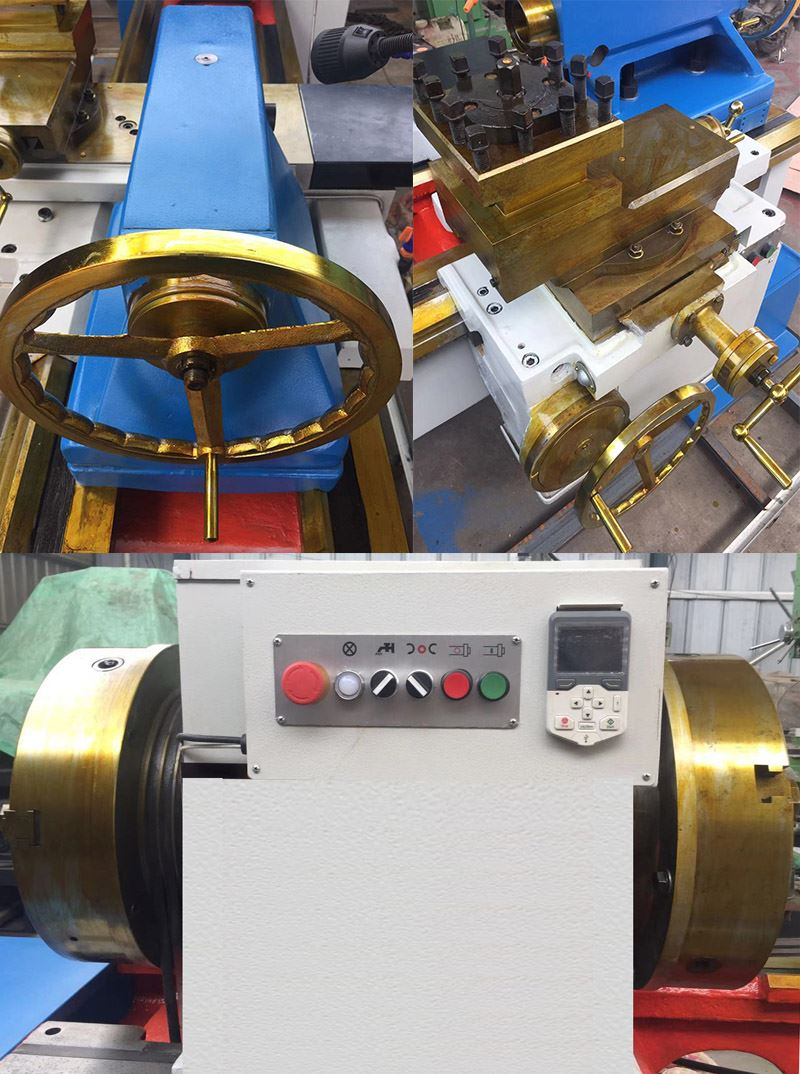

Details of Driven Shaft Lathes
