Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
1. The High Precision Vertical Turning Lathe is capable of performing powerful, heavy-duty cuts, while the vertical orientation is the ideal platform for running thin-walled parts without distortion. The milling (M) function adds flexibility to handle a wide range of parts.
2. The High Precision Vertical Turning Lathe base and column make a highly dependable, highly rigid structure and the headstock with flange construction minimizes the effects of thermal deformation and vibration, which ensures stable, accurate cutting.
3. Feeding system (X-axis, Z axis) is driven by servo motor. Flexible coupling and ball screw directly connect to achieve horizontal and vertical turret feed and fast moving.
4. Low noise and high reliability advantages. Stainless steel telescopic shield was fixed on the horizontal guide rail of beam(X axis). Beam grip adopt the leading screw clamping mechanism, safely and reliably.
Products Specification
Parameter can be customized
| Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
| Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
| Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
| Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
| Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
| Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
| Working table step of rotation speed | step | stepless | stepless | stepless | stepless | 16 |
| Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
| Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
| Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
| Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
| Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
| Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

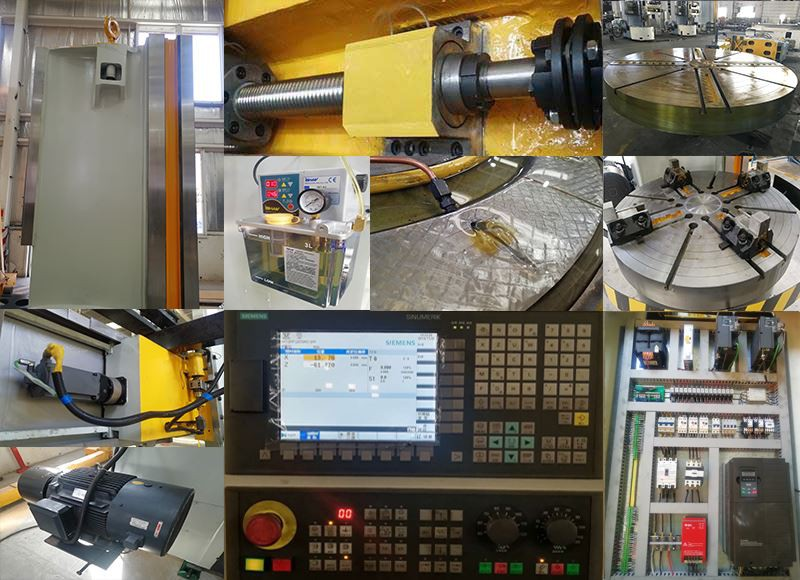

Production details
Work piece

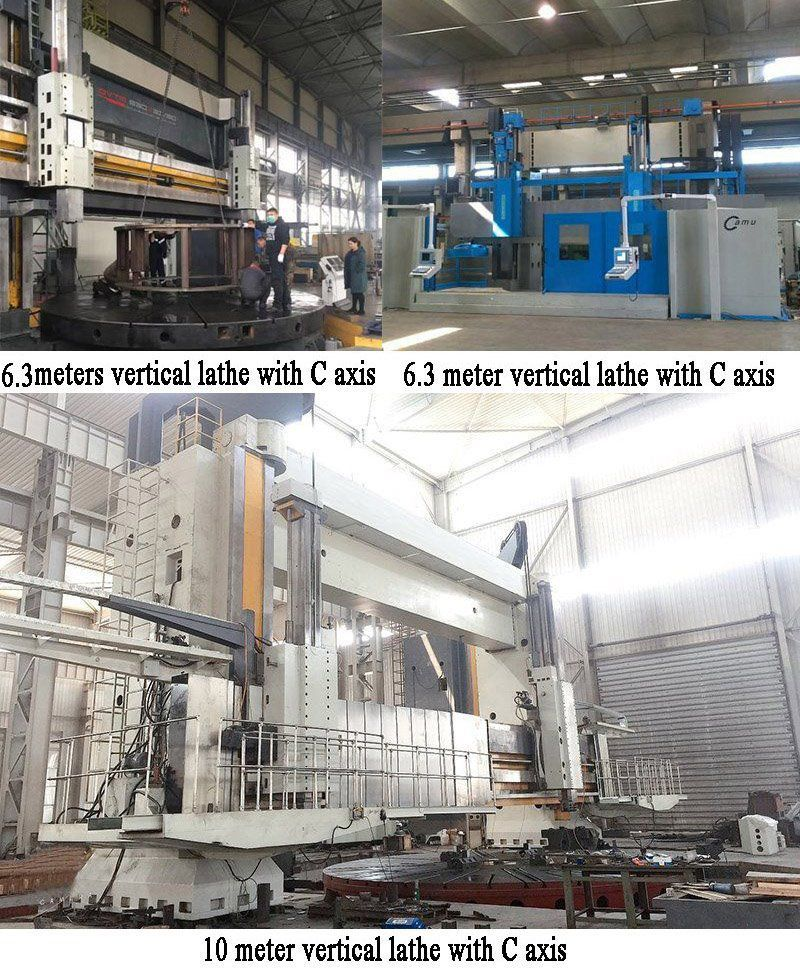

Customers of vertical customers
Serious and professional testing
Package and Shipping
