Swing over bed: 360mm, 400mm, 460mm, 500mm Spindle Bore: 80mm(D8)
| Quantity: | |
|---|---|
Product Introduction of Horizontal Conventional Lathe
Horizontal Conventional Lathe is The double-guideway flat bed lathes which are equipped with numerical control and hand wheels. This means they are particularly well-suited to the requirements of one-off production.
It is manufactured with rules of ISO and CE principle.
Products Specification of Horizontal Conventional Lathe
Item | Unit | CW6163 | CW6180 |
Swing over bed | mm | Φ630 | Φ800 |
Swing over cross slide | mm | Φ350 | Φ480 |
Distance between center | mm | 1000/1500/2000/3000/4000/5000/6000/7000/8000/9000/10000 | |
Swing over saddle | mm | Φ800x300 | Φ970x300 |
Spindle bore | mm | Φ105 | |
Taper of spindle bore | Metric 120, Morse 5 | ||
Range of spindle speed | r/min | 6 step, 6-800 | |
Step of feed | kinds | 72 | |
Longitudinal feed range | 0.1-1, 52, 1.6-24 | ||
Cross to longitudinal feed rate | 1:02 | ||
Carriage rapid moving feed rate | m/min | 4 | |
Screw pitch of leadscrew | 12 | ||
Metric threads range | mm | 1-240, 50 kinds | |
Inch threads range | mm | 28-1 27kinds | |
Module threads range | mm | 0.5-120 53 kinds | |
Pitch threads range | 1/inch | 28-1 24kinds | |
Section of tools shank | mm | 30x30 | |
Swivel anger of tool pos | ±90° | ||
Max..travel of cross slide | mm | 420 | |
Max..travel of top slide | mm | 200 | |
travel of tailstock quill | mm | 250 | |
tapper of tailstock quill | Morse 6 | ||
tapper of center | Morse 6 | ||
Max..cross travel of tailsock | mm | ±20 | |
Main motor power | 11KW/1440rpm | ||
Rapid motor power | 1.1KW/1440rpm | ||
Coolant motor power | 0.15KW | ||
Weight of lathe | kg | 3700 | |

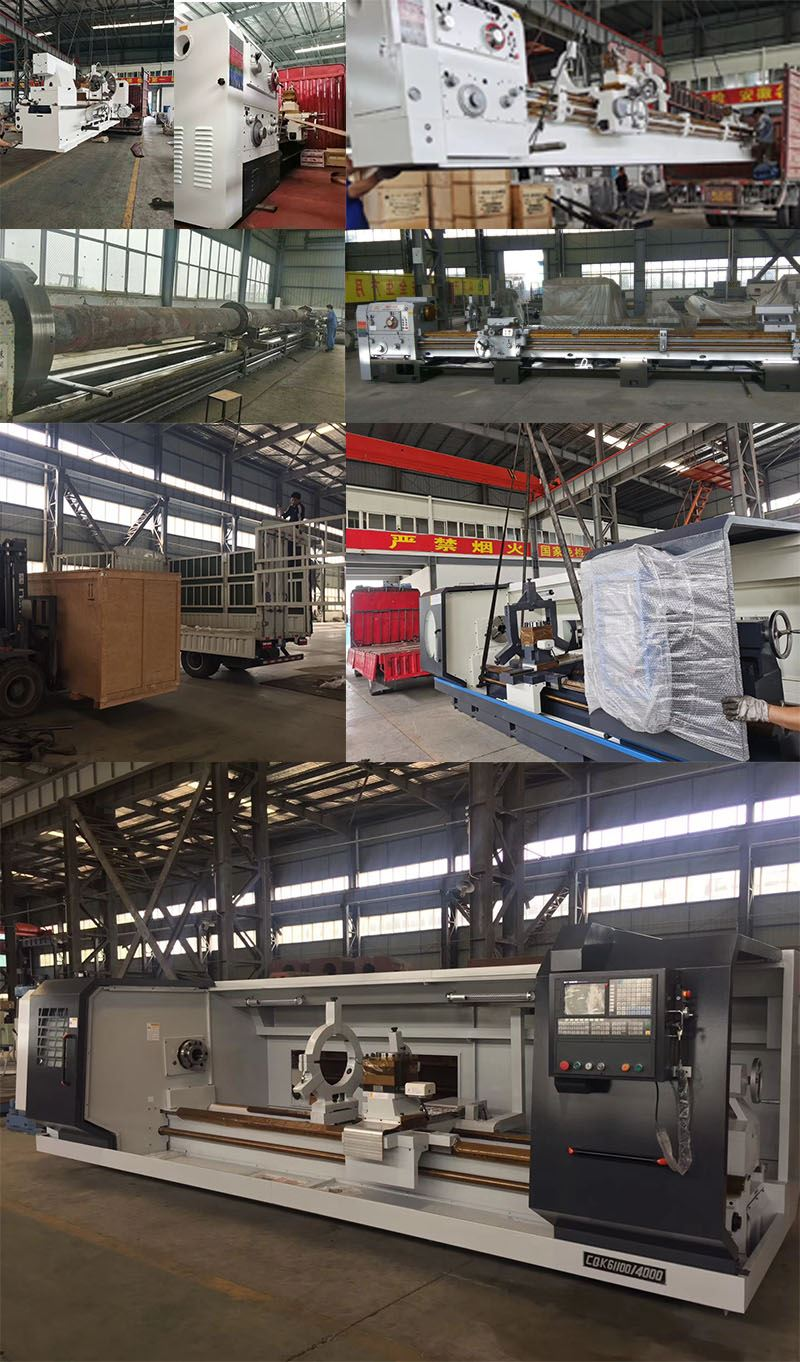

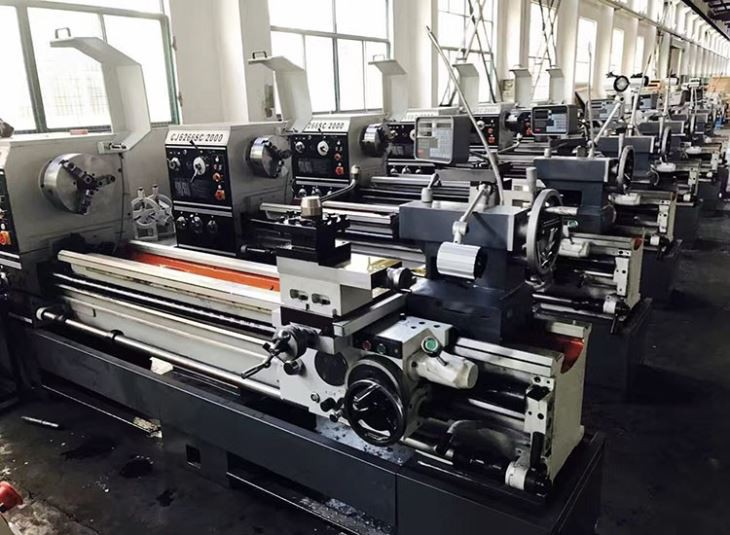

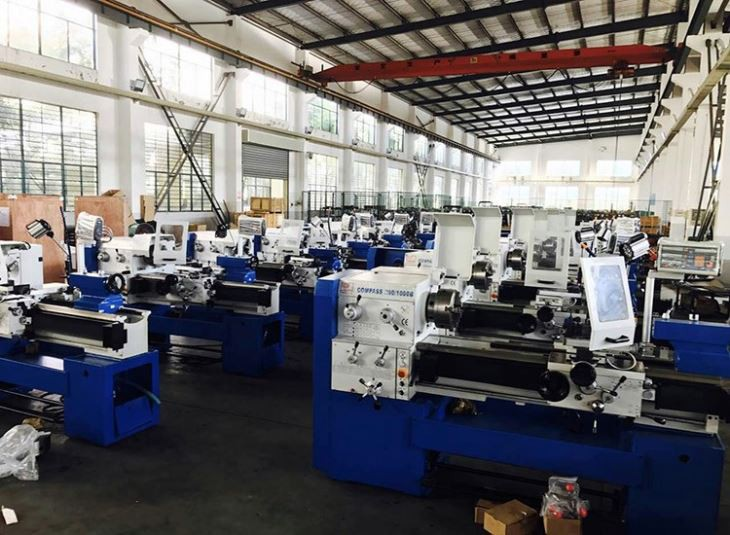

Glance of workshop
Customer View
Value
Integrity: It comes from a sense of honor and is based on respect for oneself and others. Lead people to act with integrity.
Unity: This is one of the outstanding human values, oriented to the mutual cooperation between people, especially when encountering difficulties.
Responsibility: Be aware that what we do or stop doing may have some consequences for others or ourselves.
Punctuality: To give our personality with character, order and efficiency, to help us do our work better and be trustworthy.
Communication: It helps us to effectively exchange thoughts, thoughts and feelings with people around us in a cordial atmosphere.
Teamwork: We add up, we all need each other, we are the protagonists of the same project and the same story, we pursue a common goal.
Integrity: Whether you treat others or yourself, always act in accordance with the values of justice, honesty, truth and justice.
Why Choose Us
1.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
2.Customers
We have reference customer in over 40 nations in every continent ....
3.The Steady Technology
What we own is the steady technology to manufacture machine tools, which guarantee steady and have longer work life.
4.Strictly Quality Detection
Our machine tools’quality and accuracy is strictly guaranteed by CMM, Dial indicator etc. and our experienced workers.
5. Our poeple
Our people are professional, kind and hardworking to our customers.
