Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Parameter can be customized
| Quantity: | |
|---|---|
Feature
1. Single Column Vertical Turning Lathe is suitable for mechanical processing of all industries. It can be used for rough and finish processing of inside and outside cylinder, cone surface, end face, grooving and cutting, as well as boring internal hole.
2. The foundation part is whole casting structure, using high strength and low stress cast iron material, annealing after casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram guide adopt grinding processing after the intermediate frequency quenching.
3. Main transmission is driven by AC motor, main drive speed changing with 16 steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process.
4. Worktable adopts the type of rolling guideway, so large loading capacity of worktable and high turning precision.
5. Vertical tool-post is equipped with five station tool-post, and adopts high precision rat-gear disk positioning, side tool-post is equipped with four-station tool-post. Both tool-posts adopt hydraulic balance.Horizontal and Vertical feed of vertical tool-post use the sliding screw driving; vertical and horizontal feed of side tool-post adopt gear-rack driving. Both tool-post are driven by 3-ph AC motor, the type of guideway is sliding guide rail, and the guideway paste high strength PTFE soft belt.
6. Single column vertical lathes uses PLC control, high reliability, electrical wiring in accordance with the process execution.
7. Single Column Vertical Turning Lathe have the characteristics of beautiful appearance, agreeableness, convenient operation and maintenance.
8 According to customer's special requirement, we can provide digital display device, T-type ram and square ram.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification
Parameter can be customized
The vertical lathe can be equipped CNC Controller with C axis for milling and boring function
Name | Unit | C5112 | C5116 | C5123 | C5125 | C5131 |
Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1500 |
Max. weight of work-piece | t | 3.2 | 5 | 8 | 10 | 10 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | 16 | 16 | 16 | 16 | 16 |
Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1600 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Production details of Single Column Vertical Turning Lathe
Work piece by Single Column Vertical Turning Lathe
Customers
Customer include ITT, Siemens

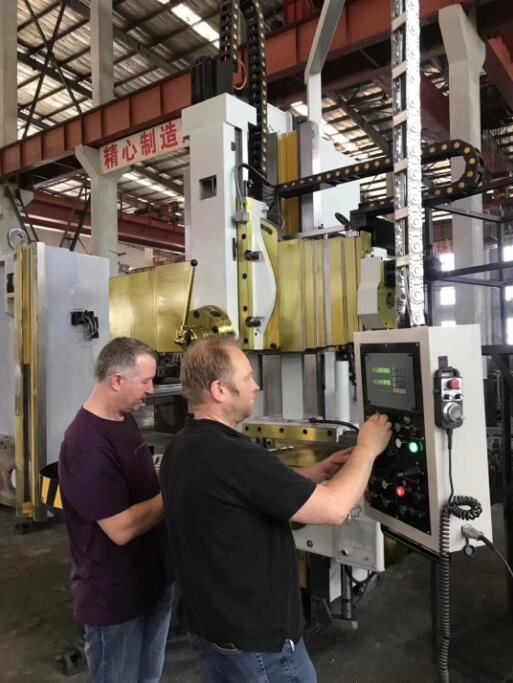

Serious and professional testing
Package and Shipping
