CRDNN2525M09 CRDNN2525M12 inserts Holder

EDGEV CBN Insert Tool Holder CRDNN2525M09 CRDNN2525M12 Lathe Turning Tools For RNGN0903 RNGN0904 RNMN1203 RNMN1204 RNMN1207

Availability:
Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
sharethis sharing button

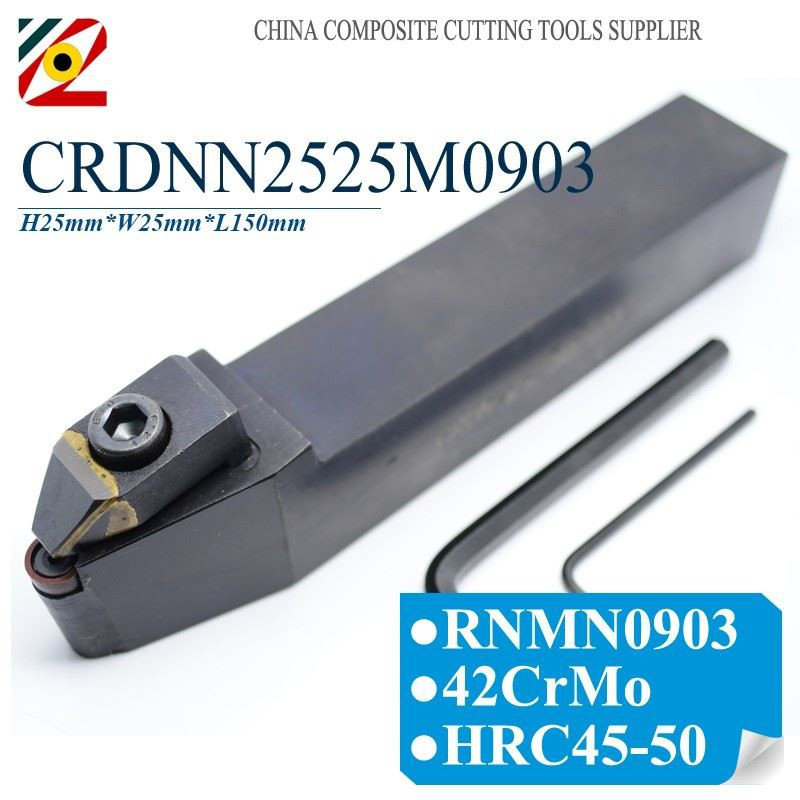

EDGEV CBN Inserts Tool Holder CRDNN2525M09 CRDNN2525M12 Lathe Turning Tools For RNGN0903 RNGN0904 RNMN1203 RNMN1204 RNMN1207

HTB1bDu6jeuSBuNjSsplq6ze8pXa1

External Tool Holder Code System (ISO Standard)

01. Application: CBN Inserts Tool Holder
02. ISO Designation:
CRDNN2525M0903 For RNMN090300(Diemter9.525mm*Thickness3.18mm)
CRDNN2525M0904 For RNMN090400(Diemter9.525mm*Thickness4.76mm)
CRDNN2525M1203 For RNMN120300(Diemter12.7mm*Thickness3.18)
CRDNN2525M1204 For RNMN120400(Diemter12.7mm*Thickness4.76)
CRDNN2525M1207 For RNMN120700(Diemter12.7mm*Thickness7.94)
03. Clamping Method: Top and hole clamping
04. Suitable Inserts: RNMN
05. Approach Angle: 45 Degree
06. Clearance Angle of Inserts: 0 Degree
07. Size of Shank: H25mm*W25mm*L150mm
08. Material: 42CrMo(Alloy Spring Steel)
09. Hardness: HRC45-50
10. Color: Black

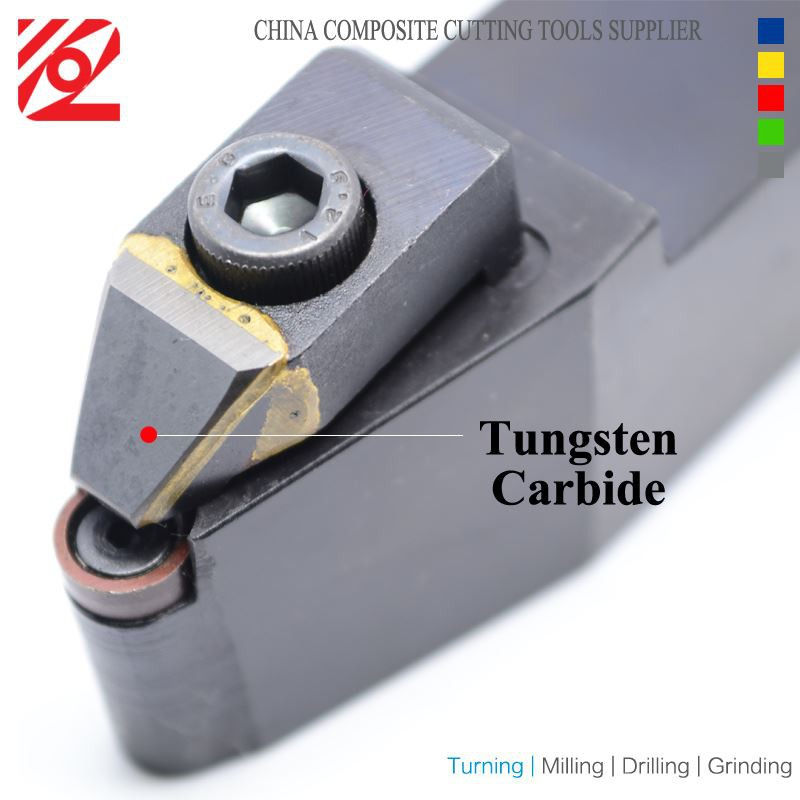

CBN Inserts Tool Holder

HTB19VsRaQyWBuNjy0Fpq6yssXXaJ

HTB1mxK0XbPx2eJjSZFBq6zmZVXaW

Question: How to guarantee the stable quality of products?

Answer: EDGEV represent the current level of manufacturing of cutting tools in China, in some ways, our products can replace the cutting tools of world-renowned brands, such as Sandvik, Mitsubishi, Sumitomo Electric, Kyocera and others products. Whatever the quality or price of tools, we have the perfect advantages. We would like to give you a satisfactory answer if you would like to test.

Answer: As for the products which meet ISO international standard, we have plenty of products. Without special reasons, we can ship out the items in 48 hours after the order is confirmed. For those non-standard with special needs, you can get the samples in 25-35 days, the formal order can be delivered in the 5~ 15 workdays.

About Service & Support

Our English language support staff work 24 hours a day to provide you with assistance on questions that you do not find answered in our FAQ section.

Packaging Details

Sometimes, we often meet with the bad weather or careless dealing with the goods by the logistics company in transportation process. Some unnecessary damage may happen. To prevent accidents caused by these reasons, our company adapts first-class product packaging from the Chinese product suppliers. The transportation of goods can be a process which is shockproof, waterproof, anti-rust and anti-corrosion.
