Feature of Automotive Heater Balancing Machine Mainly used in the whole balancing of automotive heater car heaterauto heater assembly The machine uses 12-inch touch screen and powerful 800 balancing software. Versatile fixture can accommodate variety of workpieces pneumatic quick chuck can clamp...
| Quantity: | |
|---|---|

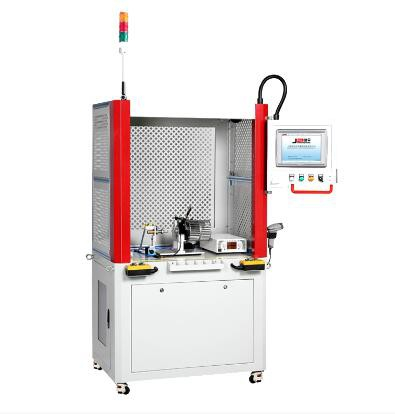

Feature of Automotive Heater Balancing Machine

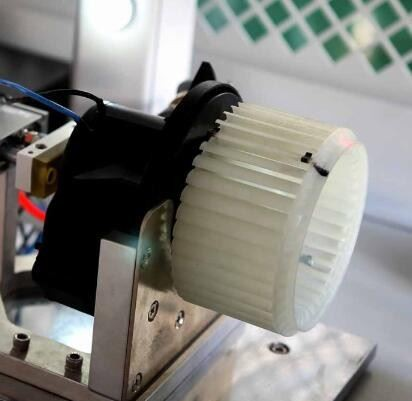

Mainly used in the whole balancing of automotive heater car heaterauto heater assembly
The machine uses 12-inch touch screen and powerful 800 balancing software.
Versatile fixture can accommodate variety of workpieces pneumatic quick chuck can clamp the workpiece more quickly greatly improve efficiency
Fast lift safety doors to bring you higher productivity and better security
Three-color alarm lights make equipment status visualize
Parameter of Automotive Heater Balancing Machine
SFZS-5H Automotive Heater Balancing Machine
Technical data at a glance | SFZS-5H |
Max Mass of Workpiece(kg) | 5 |
Maximum Diameter of Workpiece(mm) | 300 |
Balancing Speed(r/min) | Adjustable |
Min Achievable Residual Unbalance Amount (emar) | 2g· mm/kg |
Unbalance Reduction Rate(%) | ≥90 |
Working Pressure | 0.45-0.6Mpa |
Working Voltage | AC220V |
Security | Automatic door |
Software Interface | Kunluntongtai 10-inch touch screen |
Dimensions | L1350*H2040*W750 |
SF2ZS-5 Two Station Automotive Heater Balancing Machine
Technical data at a glance | PH2ZS-5 |
Max Mass of Workpiece(kg) | 5 |
Maximum Diameter of Workpiece(mm) | 300 |
Balancing Speed(r/min) | 1500-5000 Adjustable |
Min Achievable Residual Unbalance Amount (emar) | 2g· mm/kg |
Unbalance Reduction Rate(%) | ≥90 |
Working Pressure | 0.45-0.6Mpa |
Working Voltage | AC220V |
Balance Test Time (s) | 8-12 |
Balance Mode | Artificial Weighting |
Balancer Type | Soft Bearing Support |
Human-Machine Exchange | 2 10-inch touch screens |
System | JP-800 |
Total Power | 3kw |
Air Consumption | ≤3L/Min |
Strict Product Quality Control
Approved Certificates:
Feature of Automotive Heater Balancing Machine
Mainly used in the whole balancing of automotive heater car heaterauto heater assembly
The machine uses 12-inch touch screen and powerful 800 balancing software.
Versatile fixture can accommodate variety of workpieces pneumatic quick chuck can clamp the workpiece more quickly greatly improve efficiency
Fast lift safety doors to bring you higher productivity and better security
Three-color alarm lights make equipment status visualize
Parameter of Automotive Heater Balancing Machine
SFZS-5H Automotive Heater Balancing Machine
Technical data at a glance | SFZS-5H |
Max Mass of Workpiece(kg) | 5 |
Maximum Diameter of Workpiece(mm) | 300 |
Balancing Speed(r/min) | Adjustable |
Min Achievable Residual Unbalance Amount (emar) | 2g· mm/kg |
Unbalance Reduction Rate(%) | ≥90 |
Working Pressure | 0.45-0.6Mpa |
Working Voltage | AC220V |
Security | Automatic door |
Software Interface | Kunluntongtai 10-inch touch screen |
Dimensions | L1350*H2040*W750 |
SF2ZS-5 Two Station Automotive Heater Balancing Machine
Technical data at a glance | PH2ZS-5 |
Max Mass of Workpiece(kg) | 5 |
Maximum Diameter of Workpiece(mm) | 300 |
Balancing Speed(r/min) | 1500-5000 Adjustable |
Min Achievable Residual Unbalance Amount (emar) | 2g· mm/kg |
Unbalance Reduction Rate(%) | ≥90 |
Working Pressure | 0.45-0.6Mpa |
Working Voltage | AC220V |
Balance Test Time (s) | 8-12 |
Balance Mode | Artificial Weighting |
Balancer Type | Soft Bearing Support |
Human-Machine Exchange | 2 10-inch touch screens |
System | JP-800 |
Total Power | 3kw |
Air Consumption | ≤3L/Min |
Strict Product Quality Control
Approved Certificates:
