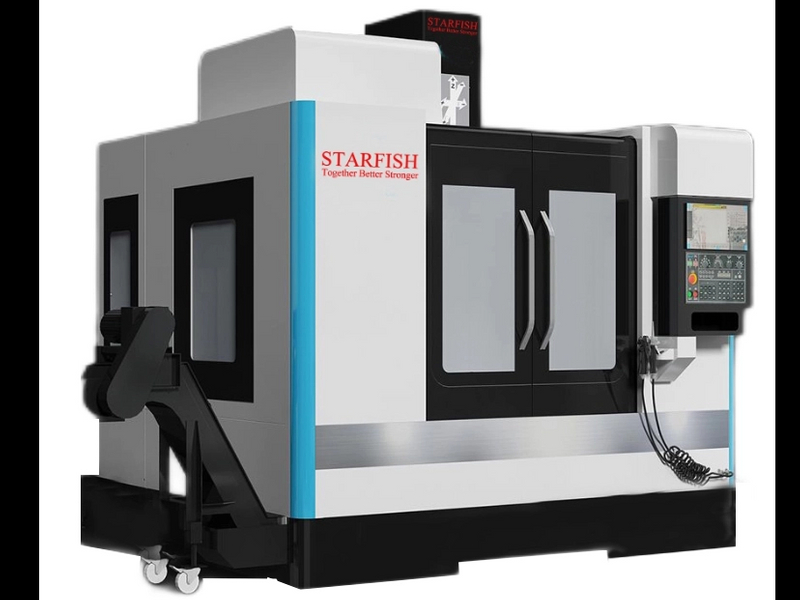

VMC-850HL VMC-855HL
| Quantity: | |
|---|---|
Introduction of High Precision 3-axis 4-axis 5-Axsi VMC850 VMC855
1. High rigidity spindle with strong barrel structure ensures the machining accuracy of the machine tool in continuous operation;
2. Using advanced instruments, through strict static and dynamic accuracy tests and temperature rise tests, the high cutting performance of the machine tool is ensured.
3. Equipped with a chip rolling device to keep the machine clean.
4. To ensure the quality of the whole machine, the main outsourcing components are used in the world-famous brand manufacturers:
Spindle: Taiwan KENTURN
Linear slide guideway: PMI/HIWIN
Ballscrew: PM I/HIWIN
Round tool magazine: Taiwan Relib /GangTian
Control system: Japan/Siemens/Mitsubishi
Spindle motor: Japan/Siemens/Mitsubishi
Servo motor: Japan/Siemens/Mitsubishi
Parameter of Loop Control High Precision Linear Control VMCC850 VMC855
| Parts | Item | VMC-850HL | VMC-855HL |
Worktable | Size (width × Long)（mm） | 1000×500 | 1000×550 |
Maximum payload（Kg） | 500 | 600 | |
Travel | Table movement (x-axis mm) | 800 | 800 |
Workbench feed (Y-axis mm) | 500 | 550 | |
Spindle movement (Z-axis mm) | 500 | 550 | |
Distance from nose end of spindle to working table (mm) | 120-620 | 150-700 | |
Distance from center of spindle to guide surface of bed (mm) | 570 | 610 | |
Spindle | Taper# | ISO 7:24 No. 40 | |
Spindle speed（rpm） | 8000/10000（OPT）/12000（OPT） | ||
Power transmission mode | Belt type/Direct Connected（OPT） | ||
Move | Three-axis fast movement（m/min） | 24/24/24（48/48/48） | |
Electric machinery | Spindle (30 minutes/continuous)（Kw） | 7.5/11（5.5/7.5） | |
XYZ AXIS（Kw） | 2.0/2.0/3.0 | ||
XY/Z Guide | Form | Rail (Two linear and One Hard) | |
CNC system | Model | SIEMENS/FANUC/MITSUBISHI | |
Other | Weight（Kg） | 5000 | 5500 |
Area covered（mm） | 2550×2200mm | 2650×2200mm | |
Product Advantage of 3 axis 4 axis VMC850 VMC855 Vertical machining center
1. Imported high-speed spindle with least thermal deformation, and temperature rise. An automatic coolant system is available as an option.
2. Precision screw, durable bearings, heavy and high-speed cut guide rails.
3. Taiwan's well-known brand, designed with a one-key-reset function for troubleshooting.
4. A powerful motor produces higher torque with the help of a German ZF gearbox.
5. All key parts come from world well-known brand
FAQ
Q: How to guarantee industrial high precision loop control vertical machining center quality?
A: (1)The key parts of the machine comes from China top or world well known manufacturer, such bearing, hydraulic system, lead screw.
(2)Processing equipment imported from Taiwan, Japan or China top manufacturer
(3)Testing device imported from Germany, USA.
(4)We own professional design team using 2D and 3D design method.
(5)We own a professional production team
Q: Can we do OEM for you?
A: Yes
Q: Can I change the voltage as per customer’s needs?
A: Yes
Q: Pre-acceptance
A: (1)Welcome your visiting for inspection
(2)Taking inspection video and providing testing report
Q: Installation and training:
A: Installation:
(1)Have a high-skilled and high-quality installation and commissioning team;
(2)Take the initiative to provide customers with the bill of materials that the customer needs to prepare when the machine tool is installed before the machine tool is shipped;
(3)Engineering will install the machine do training on site
(4)Installation guide and video are provided for installation if the machine is delivered as a whole machine
(5)Live video can be connected with you for guiding customer to install it
(6)Provide timely and professional installation and commissioning services for Starfish machinery Training
(7)After installation, guide the user how to use the machine correctly.
(8)User’s manual is supplied.
