VF-500 VF-600
Availability: | |
---|---|
Quantity: | |

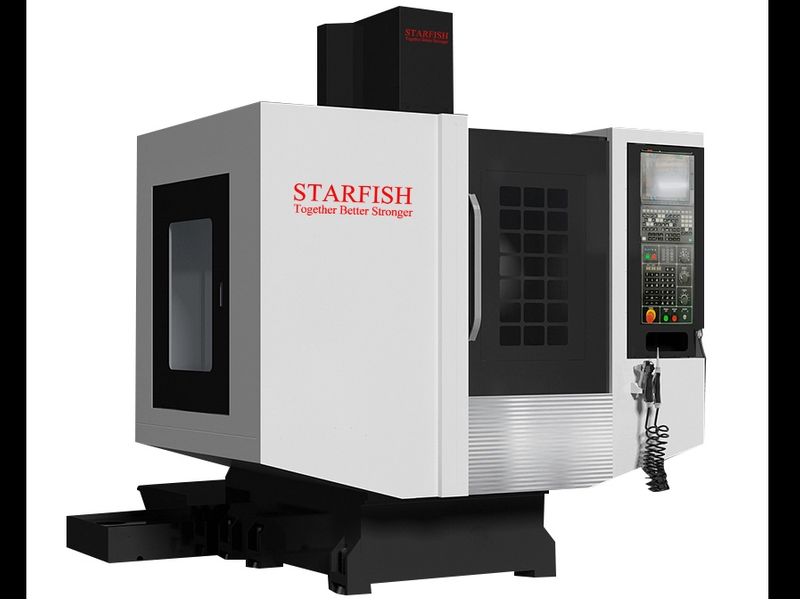

Introduction of 3 Axis 4 Axis 5 Axis High Speed Vertical Machining Center
1. A high-speed VMC is designed to meet precision machining demands. This state-of-the-art machine has advanced features to ensure optimal performance and efficiency in processing parts.
The high-speed vertical machining center is capable of handling a wide range of materials and complex geometries with precision and accuracy. Its robust construction and high-speed spindle allow for fast and precise machining of parts, making it ideal for various industries.
2. To ensure the quality of the whole machine, the main outsourcing components are used in the world-famous brand manufacturers:
Spindle: Taiwan KENTURN
Linear slide guideway: PMI/HIWIN
Ballscrew: PM I/HIWIN
Round tool magazine: Taiwan Relib /GangTian
Control system: Japan/Siemens/Mitsubishi
Spindle motor: Japan/Siemens/Mitsubishi
Servo motor: Japan/Siemens/Mitsubishi
Parameter of Loop Control High Precision Vertical Machining Center
Parts | Item | VF-500 | VF-600 |
Worktable | Size (width × Long)(mm) | 600×400 | 700×420 |
Maximum payload(Kg) | 300 | 350 | |
Travel | Table movement (x-axis mm) | 500 | 600 |
Workbench feed (Y-axis mm) | 400 | 400 | |
Spindle movement (Z-axis mm) | 450 | 450 | |
Distance from nose end of spindle to working table (mm) | 110-560 | 150-600 | |
Distance from center of spindle to guide surface of bed (mm) | 448 | 466 | |
Spindle | Taper# | ISO No. 40 | ISO No. 40 |
Spindle speed(rpm) | 12000 | 12000 | |
Power transmission mode | Direct Connected | Belt type | |
Move | Three-axis fast movement(m/min) | 48/48/48 | 48/48/48 |
XYZ Guide | Form | Rail | Rail |
CNC system | Model | SIEMENS/FANUC/MITSUBISHI | SIEMENS/FANUC/MITSUBISHI |
Other | Weight(Kg) | 3000 | 4000 |
Area covered(mm) | 2000×2200mm | 2100×2300mm |
FAQ
Q: How to guarantee machine quality?
A: (1)The key parts of the machine comes from China's top or world well-known manufacturer, such bearing, hydraulic system, and lead screw.
(2)Processing equipment imported from USA, Europe or China top manufacturer
(3)Testing device imported from Taiwan, Japan
(4)We own a professional design team using 2D and 3D design methods.
(5)We own a professional production team
Q: Can we do OEM for you?
A: Yes
Q: Can I change the voltage as per the customer’s needs?
A: Yes
Q: Pre-acceptance
A: (1)Welcome your visit for inspection
(2)Taking inspection videos and providing a testing report
Q: Installation and training:
A: Installation:
(1)Have a high-skilled and high-quality installation and commissioning team;
(2)Take the initiative to provide customers with the bill of materials that the customer needs to prepare when the machine tool is installed before the machine tool is shipped;
(3)Engineering will install the machine do training on site
(4)Installation guide and video are provided for installation if the machine is delivered as a whole machine
(5)Live video can be connected with you for guiding customer to install it
(6)Provide timely and professional installation and commissioning services for Starfish machinery Training
(7)After installation, guide the user how to use the machine correctly.
(8)User’s manual is supplied.
