CNC (Computer Numerical Control) turning machines, commonly referred to as CNC lathes, are essential tools in modern manufacturing. These machines automate the turning process, which involves rotating a workpiece while a cutting tool removes material to create the desired shape. CNC turning machines are known for their precision, efficiency, and ability to produce complex geometries. A critical component of these machines is the tooling used to perform various operations. This article delves into the different types of tools used in CNC turning machines, their functions, and their importance in the manufacturing process.

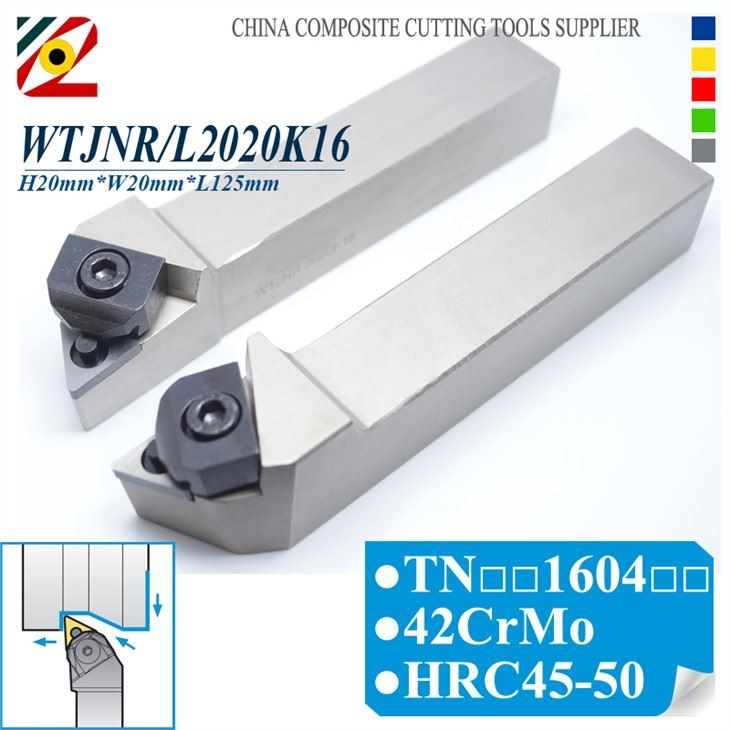

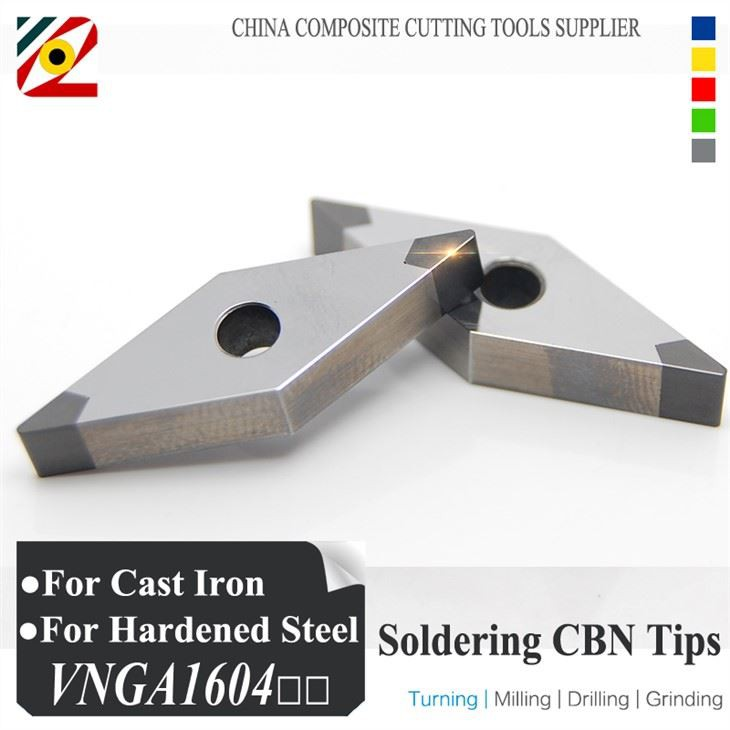

Turning tools are the most fundamental tools used in CNC lathes. They are designed to remove material from the outer diameter of a rotating workpiece. These tools come in various shapes and sizes, each suited for specific turning operations such as roughing, finishing, and profiling. Turning tools are typically made from high-speed steel (HSS) or carbide, with carbide being preferred for its hardness and wear resistance.

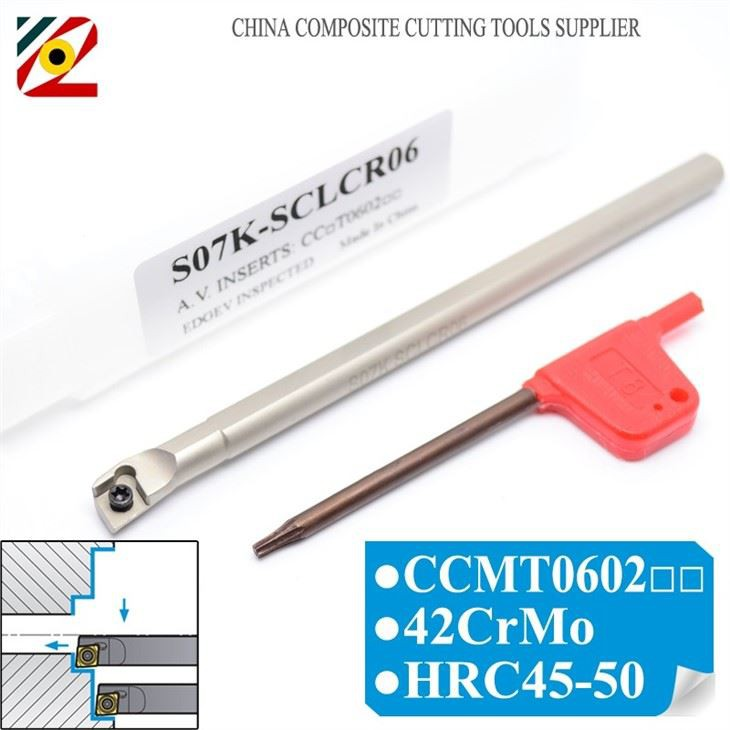

Boring tools are used to enlarge and finish the inside diameter of a hole that has already been drilled or cast. These tools are essential for achieving precise internal dimensions and smooth surface finishes. Boring tools can be adjusted to achieve the desired diameter, making them versatile for various applications. They are commonly used in the production of cylindrical parts such as engine cylinders and hydraulic cylinders.
Grooving tools are designed to cut grooves or channels into the workpiece. These grooves can be used for various purposes, such as accommodating O-rings, retaining rings, or creating decorative features. Grooving tools come in different widths and shapes, allowing for the creation of various groove profiles. They are essential for applications in the automotive, aerospace, and medical industries.
Threading tools are used to cut threads on the external or internal surfaces of a workpiece. These tools are critical for producing threaded components such as screws, bolts, and nuts. Threading tools can be single-point tools or multi-point tools, with the latter being more efficient for high-volume production. CNC lathes can produce both standard and custom thread profiles with high precision.
Parting tools, also known as cutoff tools, are used to separate a finished part from the remaining workpiece material. These tools are typically narrow and have a sharp cutting edge to ensure a clean and precise cut. Parting tools are essential for operations where multiple parts are machined from a single piece of material, such as in bar stock machining.
Drilling tools are used to create holes in the workpiece. These tools are mounted in the turret or tool post of the CNC lathe and can perform various drilling operations, including center drilling, deep hole drilling, and tapping. Drilling tools are available in different sizes and materials, with carbide drills being preferred for their durability and performance in high-speed applications.
Some CNC lathes, known as turn-mill centers, are equipped with milling capabilities. Milling tools are used to perform milling operations on the workpiece, such as creating flat surfaces, slots, and complex geometries. These tools are typically mounted on a rotating spindle and can move in multiple axes to achieve the desired milling operations. Turn-mill centers are highly versatile and can perform both turning and milling operations in a single setup.
In addition to the cutting tools themselves, tool holders and tool turrets play a crucial role in CNC turning machines. Tool holders are used to secure the cutting tools in the machine, ensuring stability and precision during machining operations. Tool turrets are rotating fixtures that hold multiple tools and can quickly change between them during the machining process. This allows for efficient and automated tool changes, reducing setup times and increasing productivity.
The performance and longevity of cutting tools are significantly influenced by the materials and coatings used in their construction. Common tool materials include high-speed steel (HSS), carbide, and ceramics. Each material has its advantages and is chosen based on the specific requirements of the machining operation. Additionally, coatings such as titanium nitride (TiN), titanium carbonitride (TiCN), and aluminum oxide (Al2O3) are applied to cutting tools to enhance their wear resistance, reduce friction, and improve heat dissipation.
CNC turning machines are indispensable in modern manufacturing, and the tools used in these machines are critical to their performance and versatility. From turning and boring to grooving and threading, each tool serves a specific purpose and contributes to the overall efficiency and precision of the machining process. Understanding the different types of tools, their functions, and the materials and coatings used in their construction is essential for optimizing CNC turning operations and achieving high-quality results.
