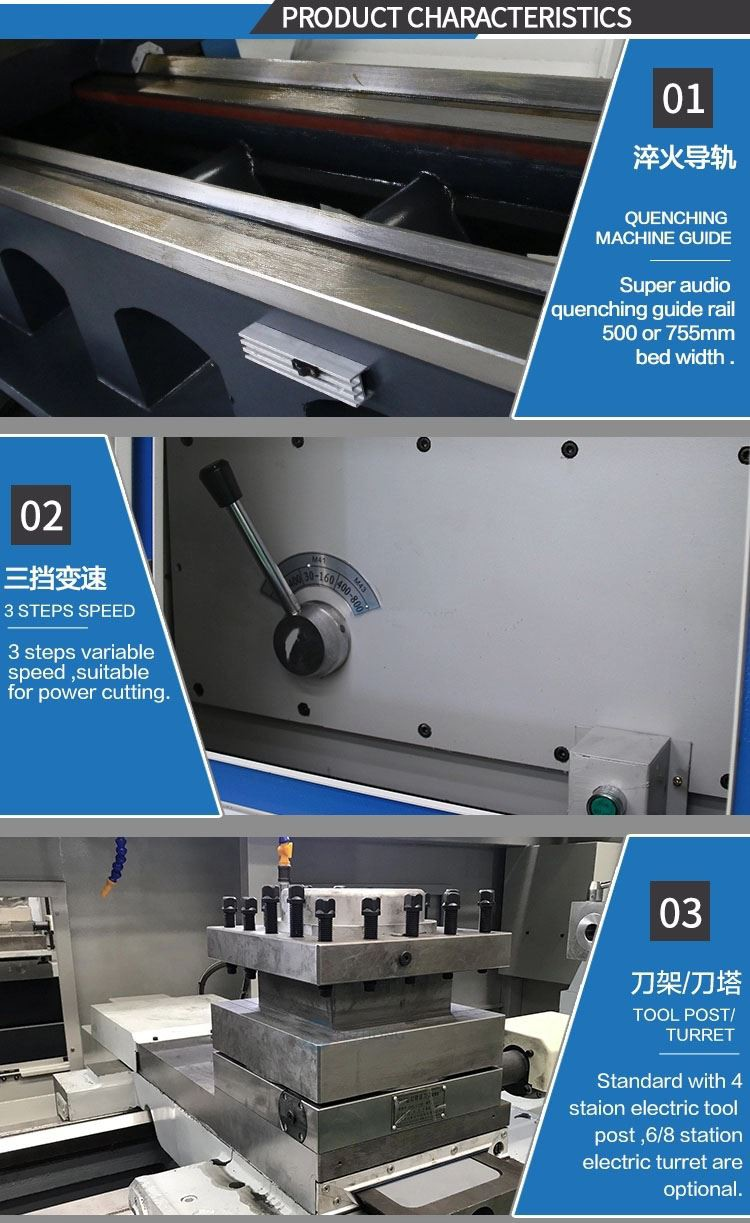

Feature of CNC Pipe Threading Lathe Machine Big spindle bore and double chuck to ensure process big diameter pipe One-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide way contact surface...
| Quantity: | |
|---|---|

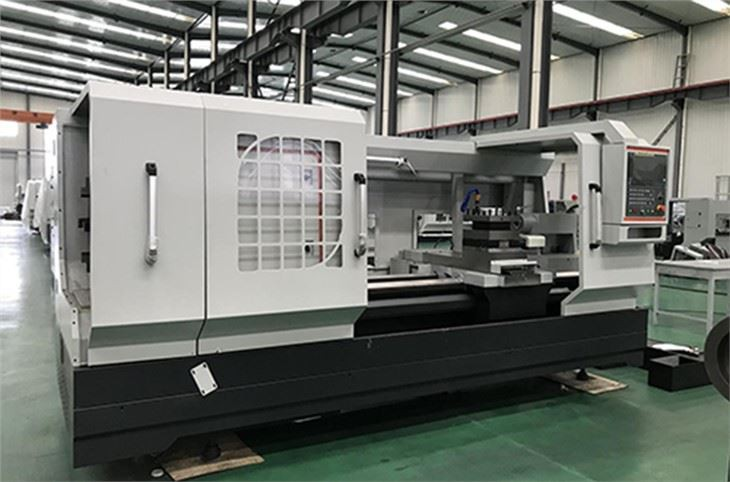

Feature of Pipe Thread Turning Lathe
1. Pipe Threading Lathe is a kind of horizontal lathe designed for professional processing of thread works. It has all the functions of an ordinary lathe, and is also used for the processing of large-diameter pipe material.
2. It is widely used in Machinery manufacturing, petroleum, chemical, coal, geological exploration, urban water supply and drainage and other industries machining operations.

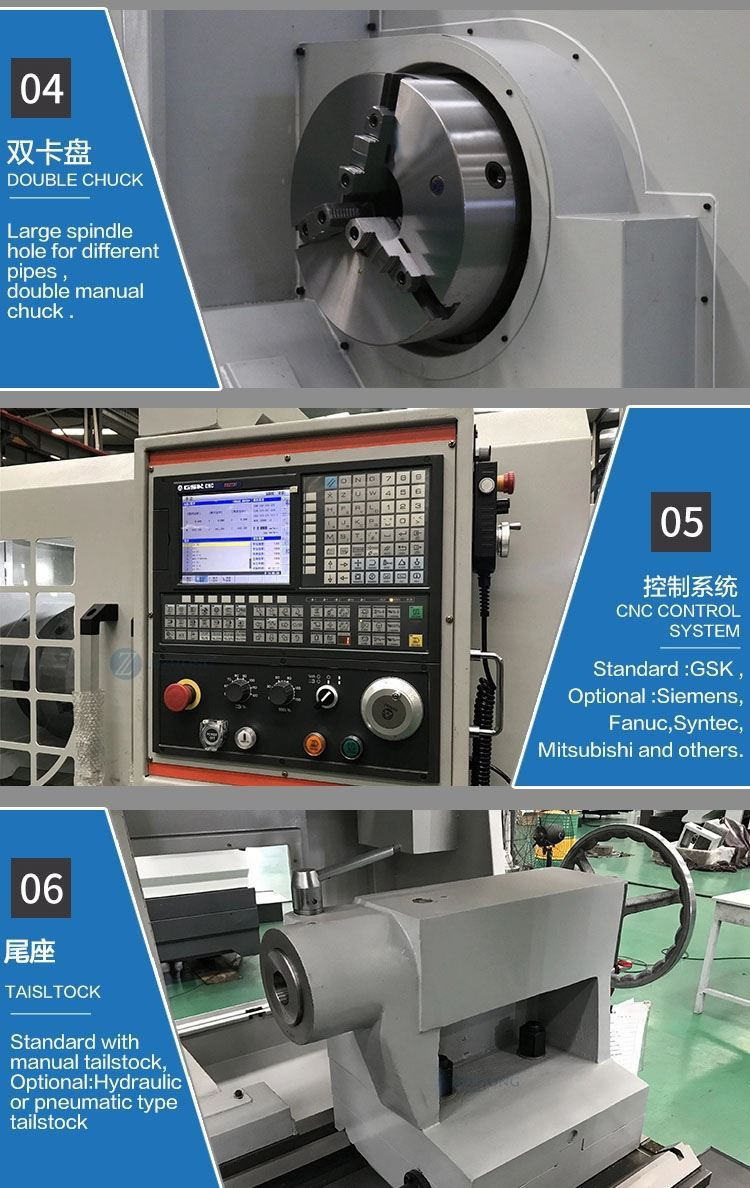

3. The spindle box equipped with dual chucks, and lathe bed is with taper machining device that can process various internal and external diameter, Including metric, imperial, taper thread, etc. This lathe machine can also process shaft type part, disk parts and cylindrical parts. With help of appropriate tools and accessories.
4. CNC Pipe Threading Lathe Machine can also process drilling, reaming, tapping and rolling and so on.
STANDARD ACCESSORIES:
Tool post, Tailstock, Chuck, Lighting lamp, Coolant pump, Rear support bracket, Pad iron etc.
OPTIONAL ACCESSORIES:
Digital readout, and Workpiece support etc.
Specifications of Pipe Thread Turning Lathe
Item | Unit | CK6628 | CK6636 | CK6646 | 6663 |
Swing over bed | mm | 1000 | 1000 | 1200 | 1400 |
Swing over carriage | mm | 650 | 640 | 800 | 1100 |
Spindle Bore | mm | 280 | 360 | 460 | 630 |
Max. Load between center | Ton | 4 | 6 | 6 | 10 |
Bed Width | mm | 600 | 755 | 970 | 970 |
Spindle speed | rpm | 5-500 | 3.15-315 | 3.15-315 | 2-200 |
Spindle motor | kW | 18.5 | 22 | 30 | 37 |
Machine weight of 3 meters | Kg | 6800 | 12000 | 14000 | 17000 |
Machine weightof 3 meters | LXWXH | 5750X1650X1550 | 6300X1650X1700 | 6300X2550X1850 | 6300X2875X1850 |
Details of Pipe Thread Turning Lathe
Products Advantages:
Our company has over 30 producing history, with professional technical team and quality control team.

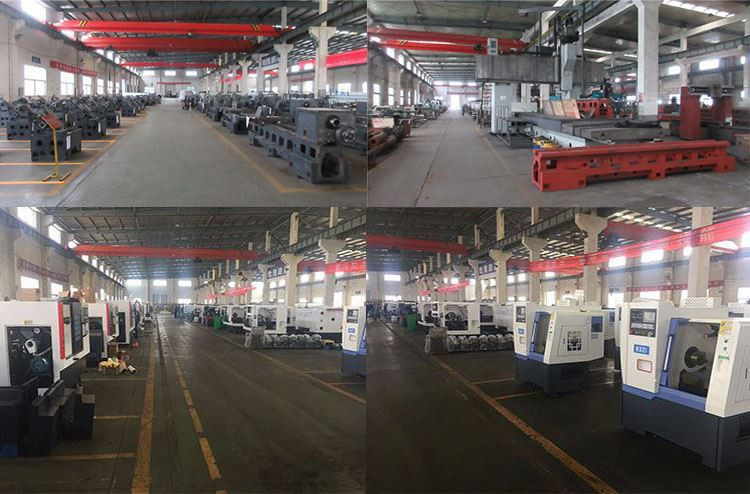

Our factory has 5 workshops and own casting factory with over 300 sets all kinds of machines, and has over 300 workers.Production process is strictly in accordance with the production process, ensure that each machine is qualified before delivery.
Service advantages:
Pre-sale service:
1. Provide Lathes technical consulting services to customers free of charge. 2. Provide the company with the company profile and credit certificate. 3. Invite customers to visit our company to inspect the manufacturing process. In Producing service Customers can come to our company to know the progress of production at any time. After-sale service 1. Our company can dispatch technicians to carry out on-site installation and commissioning according to customer requirements. 2. Customers can send employees to our company for acceptance and training. 3. The warranty period of our company's lathe machine is ONE year. During the warranty period, our company provides damaged parts for customers free of charge, and dispatches technicians to solve problems on the spot according to customer requirements. 4. Our company promises to respond to customer questions in a timely manner after receiving feedback of qualit, and provide solutions within 24 hours.
