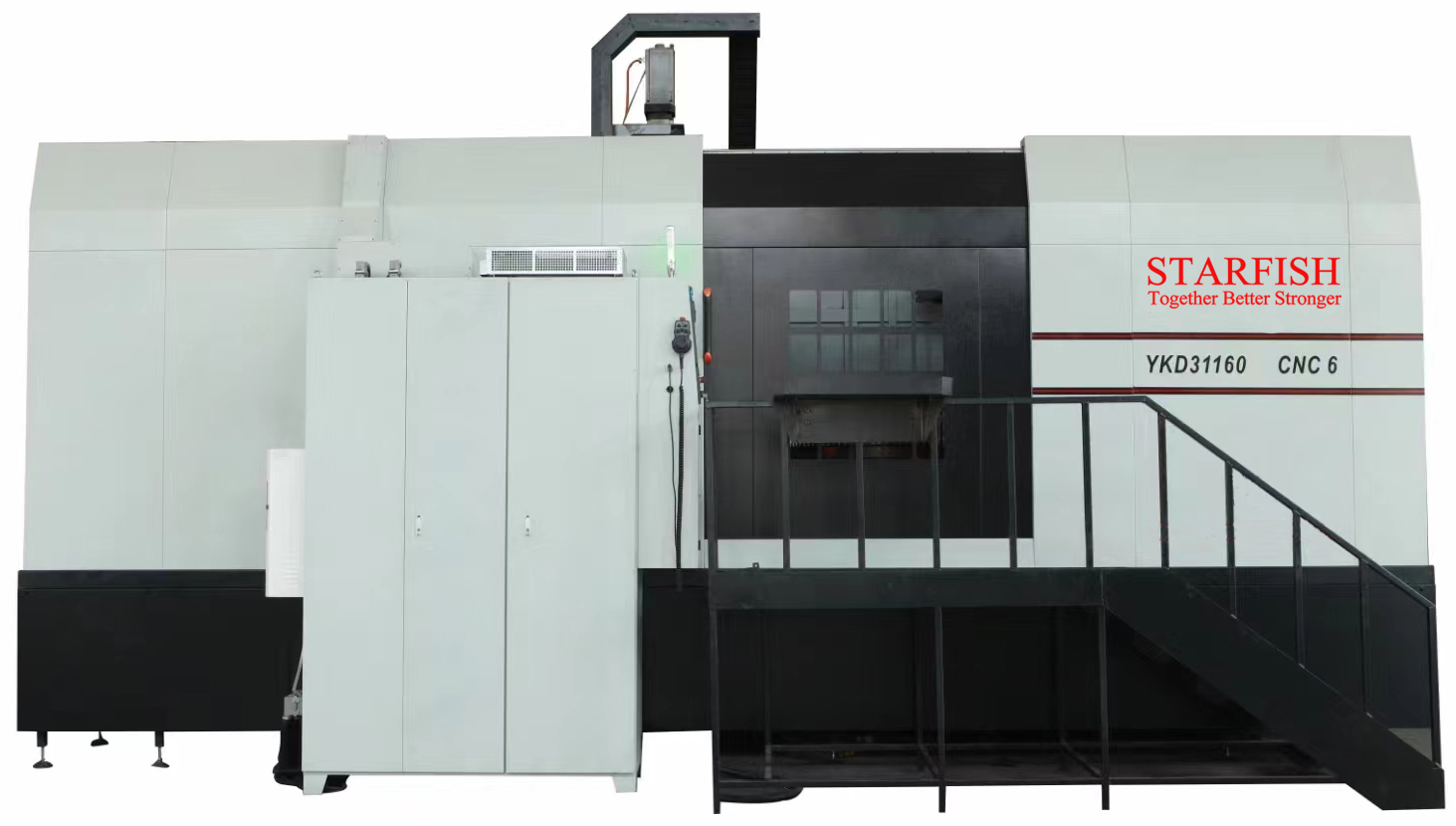

The function of YKD31160 CNC 6 CNC CNC High Precision Gear Hobbing Machine
The maximum hobbing diameter is 1600mm, the modulus of the workpiece, and the pressure angle is the same as the hob, through the adjustment of the machine tool can be processed with different numbers of teeth and different helix angles of the gear. CNC axes are: radial feed X-axis, hob taYKD31160 CNC6 CNC high-speed hobbing machine is a large modulus spreading method of hobbing and processing of all kinds of straight teeth, helical gears, worm gears, drum gears, etc. The maximum hobbing diameter is 1600mm, and the modulus and pressure angle of the workpiece are the same as that of the hob. mper Y-axis, table back rC-axis, vertical feed Z-axis, tool rotation rB-axis, tool holder rotation rA-axis. The whole machine realizes electronic gearbox control without a mechanical hanging wheel.
The gear hobbing machine is suitable for both high-efficiency gear rough machining and high-precision gear finishing, with simple adjustment, easy operation, and a wide range of adaptations. This machine tool is full digital control and can realize 4-axis linkage. A variety of machining programs can be automatically cycled through programming, achieving high productivity and stable machining accuracy.
Parameter of YKD31160 CNC 6 CNC High Precision Gear Hobbing Machine
Item | Parameter | |
Maximum Roll Cutting Diameter | Without rear column | 1600mm |
With Rear Column | 1500mm | |
Minimum rolling diameter | 120mm | |
Maximum axial travel | 1200mm | |
Maximum module size for rolling | Steel Parts | 28mm (diameter >1300 18mm) |
Castings | 30mm (diameter greater than 1300 22mm) | |
Maximum working width | 1100mm | |
Feed Motion Performance | ||
X-axis rapid traverse speed (radial) | 1000mm/min | |
Y-axis rapid traverse speed (tangential) | 500mm/min | |
Z-axis rapid traverse speed (axial) | 1000mm/min | |
B-axis rotation speed (hob rotation) | 5-350r/min | |
C-axis rotation speed (table rotation) | 10r/min | |
X-axis feed motor model: | 1FT6108-8AB71 | |
Rated torque | 61/70Nm（9.6KW） | |
Rated r-speed | 1500r/min | |
Y-axis feed motor model | 1FT6084-8AC71 | |
Rated torque | 16.9Nm | |
Rated r-speed | 2000r/min | |
Z-axis feed motor model | 1FT6108-8AB71 | |
Rated torque | 61/70N（9.6KW） | |
Rated r-speed | 1500r/min | |
A-axis feed motor model | 1FT6084-8AC71 | |
Rated torque | 16.9Nm | |
Rated r-speed | 2000r/min | |
B-axis feed motor model | 1PH7184 | |
Power | 53KW 330Nm | |
Rated r-speed | 1500/4500r/min | |
C-axis feed motor model | 1FT6136-6AC71 | |
Rated torque | 115Nm | |
Rated r-speed | 2000r/min | |
Hobbing tool holder performance | ||
Distance of hob center from table center | minimum | 100mm |
Maximum | 1045mm | |
Distance between hob center and table surface | Minimum | 580m |
Maximum | 1780mm | |
Hobbing tool r speed | 5-350r/min | |
Maximum hob diameter | 450mm | |
Maximum hob length | 500mm | |
Maximum tangential travel (travel) | 300mm | |
Angle of return of main tool holder | ±45º | |
Main motor power | 53KW | |
Worktable Performance | ||
Table Diameter/Worm Gear Diameter | 1250mm/1027mm | |
Table r speed | 0-10r/min | |
Table bore | Ø340mm | |
Table bore depth | 900mm | |
Table load | 10T | |
Other | ||
Distance from the top of the rear column and outer support to the working table surface | 840-1840mm | |
Distance from the rear column and the lower plane of the holding tile to the working table surface | 1050-2050mm | |
Diameter of tool changeable spindle | 40,50,60,80,100mm | |
Total weight of machine (approx.) | 48T | |
Numerical control system | Siemens system | |
Application
building material shops, manufacturing plants, machinery repair shops, construction works, energy & mining, gearbox manufacturers, gear-cutting industry

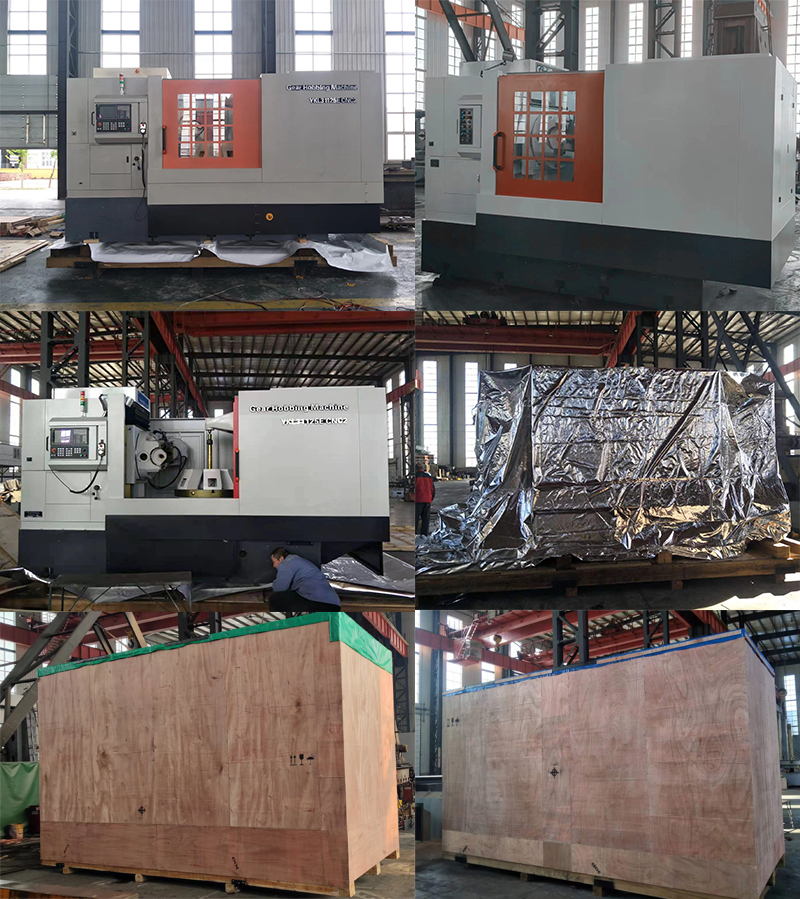

Package
