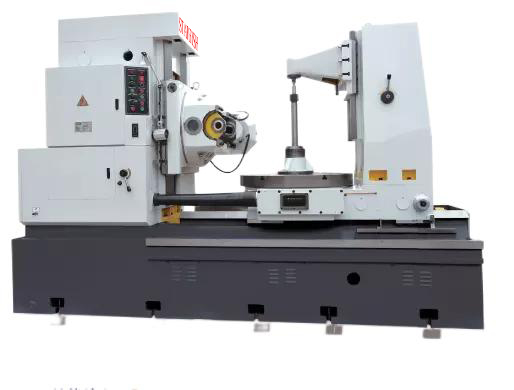

Feature of YA31160E Worm Gear Hobbing Machine
1. This hobbing machine is applicable to produce or process gear, helical gear worm gear, and sprocket in batchorpiece unit.
2. This machine is provided with the characteristics of excellent steel resistance, high intention, high precision,easy-operating, adjusting, and maintaining eto.
3. It can process gear with down smiling and smiling methods axially or radially.
4. Low energy consumption: Xinxiang hobbing machine is usually designed to be more efficient, can guarantee the processing quality under the premise of reducing energy consumption, in line with modern environmental protection requirements.
5. Convenient repair and maintenance: The design of the equipment takes into account the convenience of repair and maintenance, which is convenient for the operators to carry out daily maintenance and prolong the service life of the machine tools.
Parameter of YA31160E Worm Gear Hobbing Machine
Item | Parameter | |
Maximum machining module | Steel | 16mm |
Cast Iron | 20mm | |
Maximum workpiece diameter when machining straight teeth | With rear column | 1300mm |
Without rear column | 1600mm | |
Maximum workpiece width when machining straight teeth (center distance ≥ 400) | 500mm | |
Maximum stroke of tool holder slide | 520mm | |
Distance of tool axis from table surface | Maximum | 740mm |
Minimum | 220mm | |
Distance of tool axis from table axis | Maximum | 940mm |
Minimum | 190mm | |
Spindle taper hole | Morse 6 | |
Maximum tool size | Diameter | 260mm |
Length | 300mm | |
Tool changeable mandrel diameter | 32、40、50、60mm | |
Maximum axial movement of the tool | 100mm | |
Maximum table load | 5T | |
Table diameter / worm gear diameter | 1200mm/985mm | |
Table bore diameter | 275mm | |
Workpiece mandrel bore taper | Morse 6 | |
Number of spindle speed steps | 7grade | |
Spindle speed range | 19-125rpm | |
Number of vertical feed steps | 10grade | |
Vertical feed range | 0.47-5.28mm/rpm for worktable | |
Vertical rapid traverse speed of tool holder slide | 0.525m/minute | |
Vertical hand movement of tool holder slide per revolution | 0.63mm/r | |
Table rapid traverse speed | 0.47m/minute | |
Table radial manual feed accuracy | 0.02mm | |
Main motor power and rated speed | N=15kW 1440rpm | |
Rapid motor power and rated speed | N=3kW 1420rpm | |
Table rapid motor power and rated speed | N=1.5kW 940rpm | |
Hydraulic oil pump motor power and rated speed | N=2.2kW 940rpm | |
Cooling pump motor power and rated speed | N=0.4kW 2800rpm | |
Machine profile size (L×W×H) | 4082×2390×2520mm | |
Machine weight | 17T | |
Application
Packaging
Feature of YA31160E Worm Gear Hobbing Machine
1. This hobbing machine is applicable to produce or process gear, helical gear worm gear, and sprocket in batchorpiece unit.
2. This machine is provided with the characteristics of excellent steel resistance, high intention, high precision,easy-operating, adjusting, and maintaining eto.
3. It can process gear with down smiling and smiling methods axially or radially.
4. Low energy consumption: Xinxiang hobbing machine is usually designed to be more efficient, can guarantee the processing quality under the premise of reducing energy consumption, in line with modern environmental protection requirements.
5. Convenient repair and maintenance: The design of the equipment takes into account the convenience of repair and maintenance, which is convenient for the operators to carry out daily maintenance and prolong the service life of the machine tools.
Parameter of YA31160E Worm Gear Hobbing Machine
Item | Parameter | |
Maximum machining module | Steel | 16mm |
Cast Iron | 20mm | |
Maximum workpiece diameter when machining straight teeth | With rear column | 1300mm |
Without rear column | 1600mm | |
Maximum workpiece width when machining straight teeth (center distance ≥ 400) | 500mm | |
Maximum stroke of tool holder slide | 520mm | |
Distance of tool axis from table surface | Maximum | 740mm |
Minimum | 220mm | |
Distance of tool axis from table axis | Maximum | 940mm |
Minimum | 190mm | |
Spindle taper hole | Morse 6 | |
Maximum tool size | Diameter | 260mm |
Length | 300mm | |
Tool changeable mandrel diameter | 32、40、50、60mm | |
Maximum axial movement of the tool | 100mm | |
Maximum table load | 5T | |
Table diameter / worm gear diameter | 1200mm/985mm | |
Table bore diameter | 275mm | |
Workpiece mandrel bore taper | Morse 6 | |
Number of spindle speed steps | 7grade | |
Spindle speed range | 19-125rpm | |
Number of vertical feed steps | 10grade | |
Vertical feed range | 0.47-5.28mm/rpm for worktable | |
Vertical rapid traverse speed of tool holder slide | 0.525m/minute | |
Vertical hand movement of tool holder slide per revolution | 0.63mm/r | |
Table rapid traverse speed | 0.47m/minute | |
Table radial manual feed accuracy | 0.02mm | |
Main motor power and rated speed | N=15kW 1440rpm | |
Rapid motor power and rated speed | N=3kW 1420rpm | |
Table rapid motor power and rated speed | N=1.5kW 940rpm | |
Hydraulic oil pump motor power and rated speed | N=2.2kW 940rpm | |
Cooling pump motor power and rated speed | N=0.4kW 2800rpm | |
Machine profile size (L×W×H) | 4082×2390×2520mm | |
Machine weight | 17T | |
