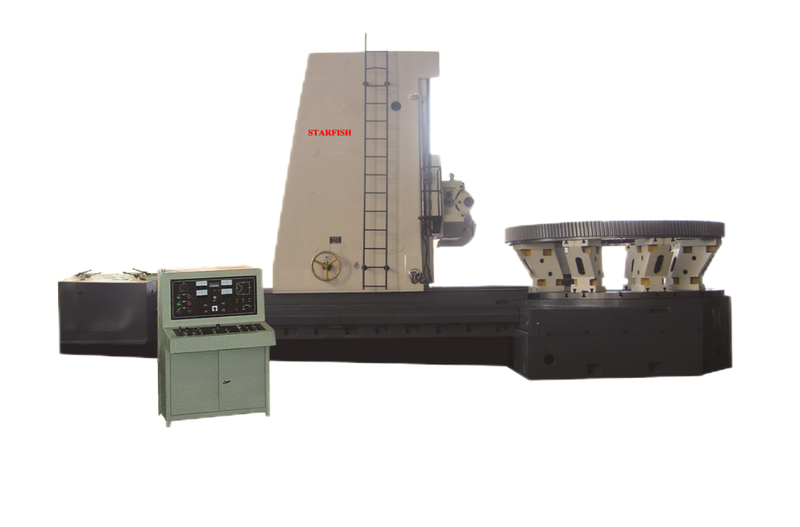

Feature of Y31500B Gear Hobbing Machine
◆ Y31 type gear hobbing machine is applicable to produce or process spur gear, helical gear, and worm gear It also can process
herringbone gear without running out of slot if equipped with a finger milling cutter and reversing mechanism to realize auto cycle
cutting.
◆ Use a finger cutter for single-tooth index processing. Wafer cutters can realize autocycle cutting and manually
control single tooth index.
◆ Its precision should be less than the grade for generating cutting processing, and its precision should be no less than 8
grade for single tooth index.
◆Worktable faceplate is centered by static pressure bearing, gearoil distributor offers pressure oil.
◆ This machine adopts a double-pitch worm, good engagement can be ensured without radial adjustment.
◆ This machine adopts a programmable controller to ensure the auto-cycle process is flexible and reliable.
Parameter of Y31500B Gear Hobbing Machine
Item | Parameter | |
Maximum workpiece diameter | 5000mm | |
Minimum workpiece diameter | 1400mm | |
Maximum machining width | 1800mm | |
Max. helix angle | ±45 degree | |
Max. machining module | Rolled steel parts | 30mm |
Roll Cutting Castings | 40mm | |
Finger milling cutter | 65mm | |
Maximum hob size | Outer Diameter | 400mm |
Length | 500mm | |
Distance from tool holder spindle center to table center | Maximum | 2950mm |
Minimum | 750mm | |
Distance from center of tool holder to table surface | Maximum | 2750mm |
Minimum | 750mm | |
Vertical travel of tool holder | 1800mm | |
Speed of hob | 5.5-40r/min | |
Table bore | 1000mm | |
Table bore depth | 1300mmor as per customer's request | |
Table diameter / worm gear diameter | 3730mm/3540mm | |
Feed rate | Hob vertical | 0.23-4.6 |
Hob horizontal | 0.43-8.6 | |
Table weight | 65T | |
Total machine power | 61KW | |
Overall dimensions | Length | 12500mm |
Width | 5070mm | |
Height | 5200mm | |
Machine weight (approx.) | 109T | |
Application
For Gear-cutting manufacturer
Gear hobbing machine application scenario: automotive parts manufacturing
Gear hobbing machines are widely used to produce gears and other components in the manufacturing process of automotive parts. The accuracy and quality of gears can be ensured through the efficient processing of hobbing machines, and the performance and reliability of automobile transmission systems can be improved. Gear cutting mmachines play an important role in the automobile manufacturing industry and provide key support for its development.
FAQ
Q: How to guarantee machine quality?
A: (1)The key parts of the machine comes from China top or world well known manufacturer, such bearing, hydraulic system, lead screws.
(2)Processing equipment imported from USA, Europe or China top manufacturer
(3)Testing device imported from Germany, USA.
(4)We own a professional design team using 2D and 3D design methods.
(5)We own a professional production team
Q: Can we do OEM for you?
A: Yes
Q: Can I change the voltage as per the customer’s needs?
A: Yes
Q: Pre-acceptance
A: (1)Welcome your visit for inspection
(2)Taking inspection videos and providing a testing report
Q: Installation and training:
A: Installation:
(1)Have a high-skilled and high-quality installation and commissioning team;
(2)Take the initiative to provide customers with the bill of materials that the customer needs to prepare when the machine tool is installed before the machine tool is shipped;
(3)Engineering will install the machine and do training on site
(4)Installation guide and video are provided for installation if the machine is delivered as a whole machine
(5)Live video can be connected with you to guide customer to install it
(6)Provide timely and professional installation and commissioning services for Starfish machinery Training
(7)After installation, guide the user on correctly using the machine.
(8)User’s manual is supplied.
