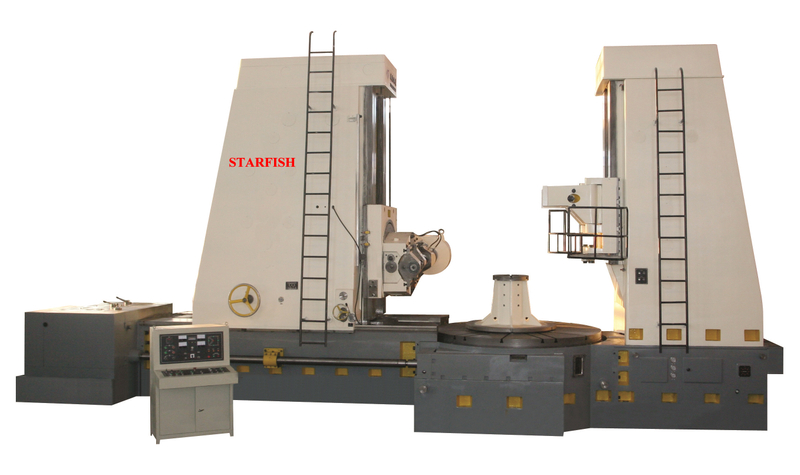

Feature of Y31315B Gear Hobbing Machine
◆ Y31 type gear hobbing machine is applicable to produce or process spur gear, helical gear, and worm gear It also can process
herringbone gear without a run-out slot if equipped with a finger milling cutter and reversing mechanism to realize auto cycle
cutting.
◆ Use a finger cutter for single-tooth index processing. Wafer cutters can realize autocycle cutting and manually
control single tooth index.
◆ Its precision should be no less than the grade for generating cutting processing, and its precision should be no less than 8
grade for single tooth index.
◆Worktable faceplate is centered by static pressure bearing, gearoil distributor offers pressure oil.
◆ This machine adopts a double-pitch worm, good engagement can be ensured without radial adjustment.
◆ This machine adopts a programmable controller to make sure the auto-cycle process is flexible and reliable.
Parameter of Y31315B Gear Hobbing Machine
Maximum workpiece diameter | Without rear column | 3150mm |
With rear column | 2000mm | |
Minimum workpiece diameter | 300mm | |
Maximum machining width | 1800mm | |
Max. helix angle | ±45 degree | |
Max. machining module | Rolled steel parts | 32mm |
Roll Cutting Castings | 40mm | |
Finger milling cutter | 65mm | |
Maximum hob size | Outer Diameter | 400mm |
Length | 500mm | |
Distance from tool holder spindle center to table center | Maximum | 2350mm |
Minimum | 200mm | |
Distance from center of tool holder to table surface | Maximum | 2750mm |
Minimum | 750mm | |
Vertical stroke | 1800mm | |
Speed of hob | 5.5-40r/min | |
Table bore | 800mm | |
Table bore depth | 1300mmor as per customer's request | |
Table diameter/worm gear diameter | 2580mm/2432 mm | |
Feeding capacity | Hob vertical | 0.186-3.68 |
Hob horizontal | 0.34-6.8 | |
Table weight | 40T | |
Total power of machine | 55KW | |
Overall dimensions | Length | 11450mm |
Width | 5070mm | |
Height | 5200mm | |
Machine weight (approx.) | 99T |
