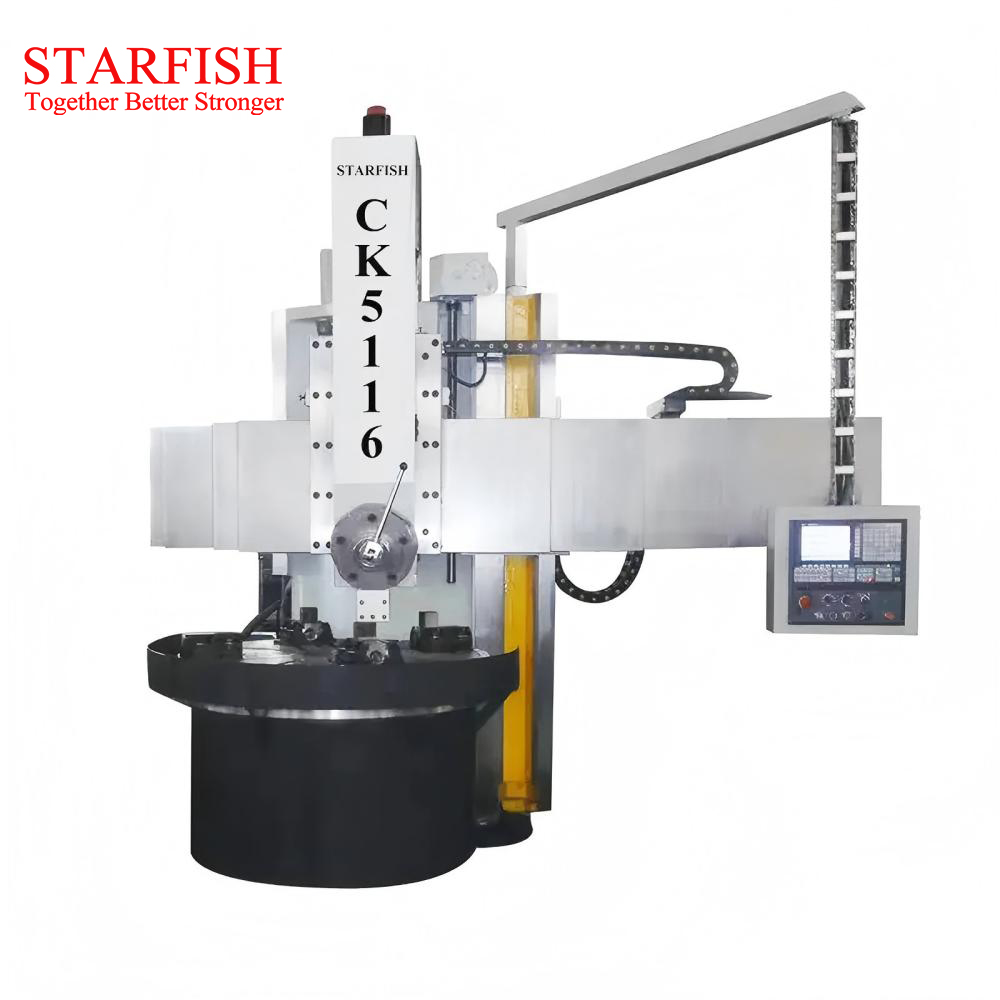

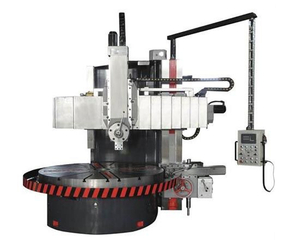

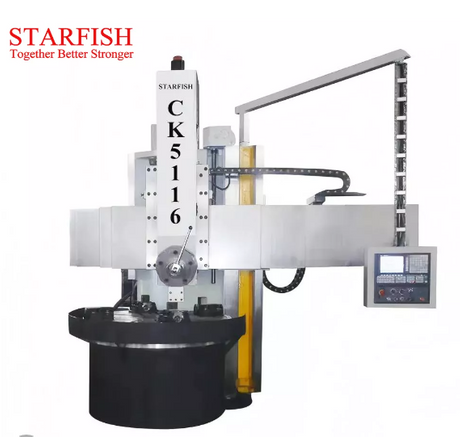

CK5112, CK5116, CK5123, CK5120, CK5125,CK5131
| Quantity: | |
|---|---|
Introduction:
1. The CK51 series CNC Vertical Turning lathe is a high-tech mechanic's product with high Dynamic and static rigidity, safe and reliable movement, long service life, and high processing efficiency, which has adopted advanced design and manufacturing technology both at home and abroad, implements the latest national accuracy standards, and is equipped with advanced function units. A strong cut of the structure has been achieved, resulting in improved performance.
2. The basic parts of the vertical lathe columns, beam, worktable, and worktable base, etc., are made of high-strength cast iron, resin sand technology, braised after casting, and secondary aging treatment (artificial secondary aging or vibration secondary aging) after rough machining to ensure the vertical lathe's accuracy. The casting quality is reliable without cracks, pores, shrinkage holes, and a white mouth structure. After simmering and secondary aging treatment, the casting has a stable structure to ensure the size remains unchanged during use.

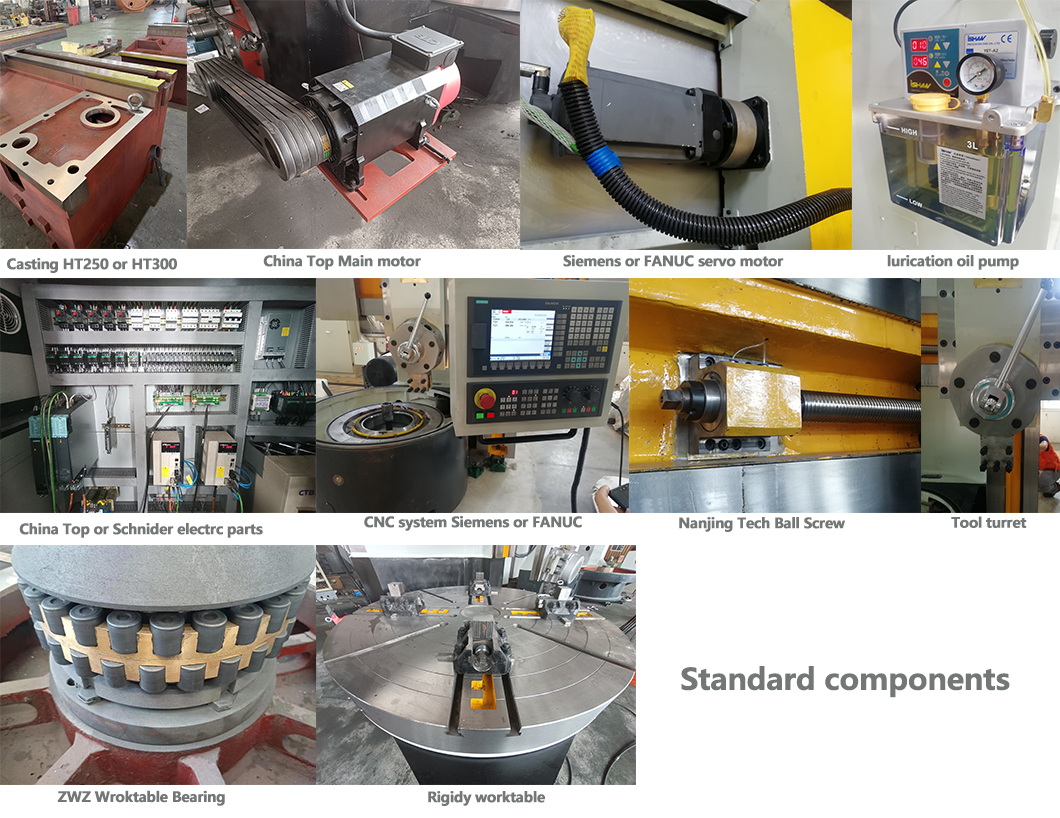

Details
Parameter
The parameter of Vertical CNC VTL can be equipped with a customized
Name | Unit | CK5112 | CK5116 | CK5120 | CK5123 | CK5125 | CK5131 |
Max. turning diameter | mm | 1250 | 1600 | 2000 | 2300 | 2500 | 3150 |
Working table diameter | mm | 1000 | 1400 | 1800 | 2000 | 2200 | 2500 |
Max. height of work-piece | mm | 800 1000 | 1000 1200 1400 | 1000 1200 1400 1600 1800 | 1000 1250 1400 1600 1800 | 1000 1300 1400 1600 1800 2000 | 1000 1200 1400 1600 1800 2000 |
Max. weight of work-piece | t | 3 | 5 | 8 | 8 | 10 | 12 |
Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 5～100 | 3.2～100 | 2～62 | 2～62 |
Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless | stepless |
Max. cutting force of vertical tool post | KN | 40 | 40 | 40 | 40 | 40 | 40 |
Horizontal travel of vertical tool post | mm | 700 | 915 | 1050 | 1210 | 1310 | 1610 |
Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
Toolbar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
Power of the main motor | KW | 22 | 30 | 30 | 30 | 37 | 45 |
Weight of machine(approx.) | t | 10 | 13 | 20 | 21 | 22 | 30 |
Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 2930×2940×3810 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |
Product Advantage
1. This High-Quality CNC Vertical Turning Lathe Machine adopts a mechatronic vertical design, the overall layout is compact and reasonable, and the installation and maintenance are convenient;
2. The base adopts a thermal symmetrical structure to overcome the influence of the temperature rise of the spindle on the machining accuracy;
3. X/Z axis lead screw is a pre-stretched structure, which can reduce the influence of temperature rise during machining on lead screw precision;
4. The structure of the CNC Vertical Turning Lathe avoids the roundness deviation caused by the gravity of the workpiece during horizontal clamping and ensures the roundness accuracy of the part;
5. The weight of the workpiece ensures that the workpiece and the fixture are closely attached so that the workpiece can obtain high positioning accuracy and machining accuracy
Product Uses
The CNC Vertical Lathe Machine is suitable for high-speed steel, hard alloy cutlery, and ceramic cutlery, which can make rough and accurate turning for external cylindrical surfaces, internal and external conical surfaces, screw thread, circular arc surfaces, and complex curved surfaces for ferrous metal, non-ferrous metal, and some non-metal part

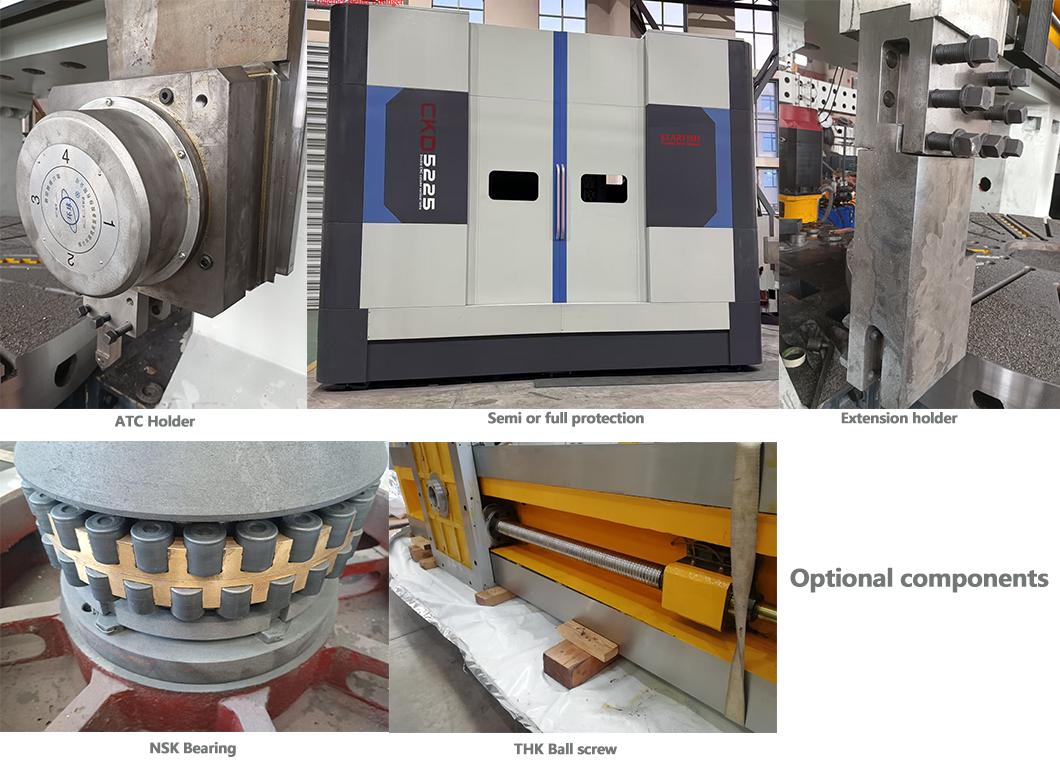

Optional components
Work
FAQ
Acceptance:
The content of pre-acceptance by the standard of machine acceptance
and a precision inspection sheet.
Installation
1) The buyer, according to the foundation chart, was offered by the seller.
2) After the equipment arrives at the user site, the buyer needs to complete the preparations for the three-phase power supply, three-phase four-core cable, compressed air source, etc., and provide the cables as mentioned above and air pipes to enter the standard interface of the machine tool, and the user will notify the supplier to install and debug after the preparation is ready.
Training
• 1-2 days: Inspection of cable connection, the finished foundation is qualified to guide the
customer to know each component's name and functions as well.
1) Demo and teach the user to calibrate and use customer workpieces in the machine.
Review all operation steps and learn each part's maintenance method.
Warranty period is 14 months from the date of debugging in the customer workshop.
In the warranty period
If some parts need to be replaced due to the quality of the product, the company is responsible for free replacement. If the issue is not related to the product quality of the Vertical Lathe, or if the company needs to send a technician to fix the Vertical Lathe, the appropriate fees should be collected.
Our company will assist customers in getting the machine running well and answer all questions
from customers online.
For simple operation issues through email/WhatsApp/video/phone call deal with directly
For a difficult issue, invite an engineer to help you repair or debug onsite.
Out of warranty period:
The customer just pays the cost of parts at a reasonable and lower price.
Troubleshooting
1) Before delivery: The Special QC department carefully checks to ensure that all is qualified with high
quality
2) Through seeing customers' actual photos or videos, using the discussed group or email, or video
meeting or a phone call gives solutions immediately
3) The dispatch engineer goes to customer workshops onsite.
