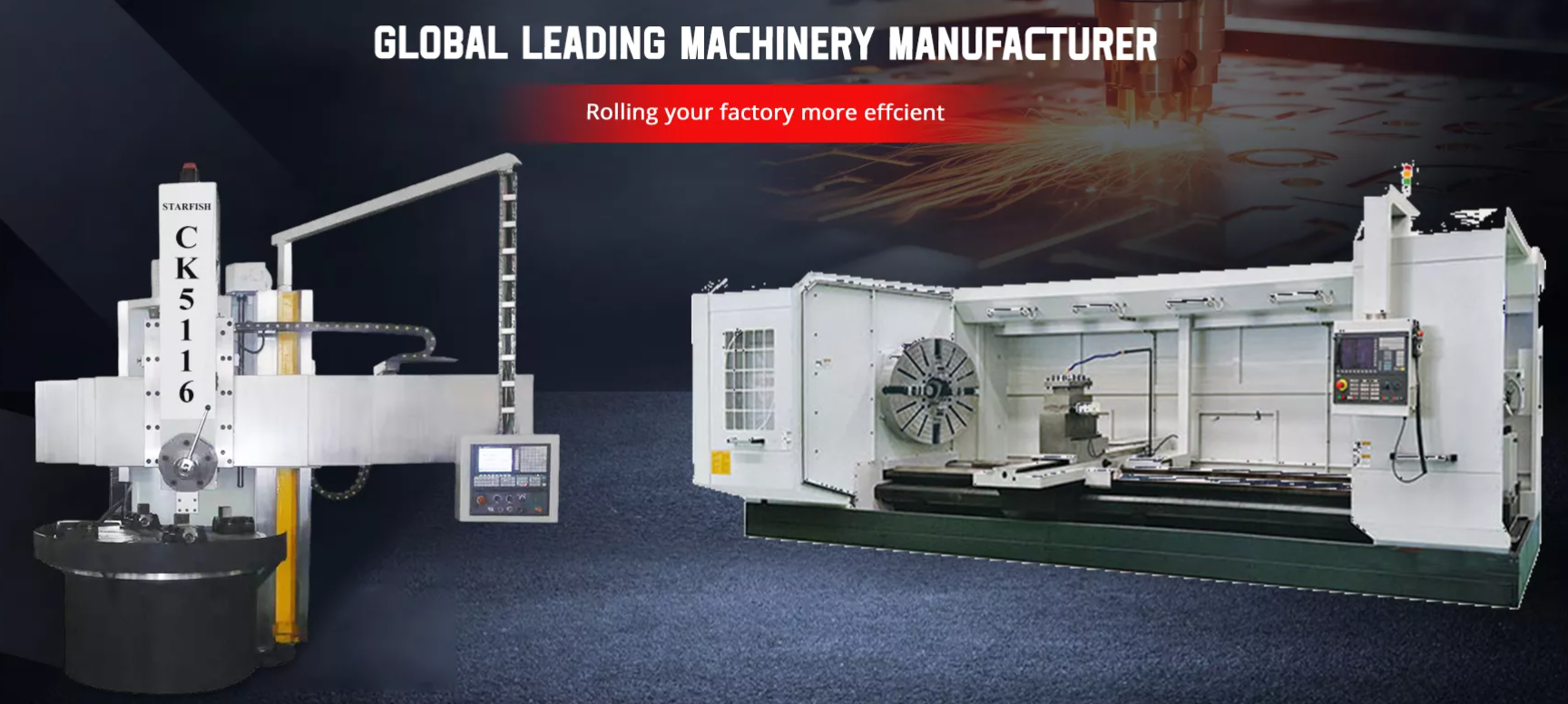

What Is Horizontal Vs Vertical Lathe?

Views: 0     Author: Site Editor     Publish Time: 2025-07-17      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Lathes are essential tools in the world of machining, widely used in industries to shape materials like metal, wood, and plastic. They are indispensable in processes that involve cutting, drilling, sanding, or polishing to achieve precision shapes. Among the many types of lathes, two of the most commonly used are the horizontal lathe and the vertical lathe. Understanding the differences between these two types of lathes can help manufacturers and machine operators make more informed decisions when selecting equipment for their workshop or factory.

In this article, we will explore the differences between horizontal and vertical lathes, their advantages, applications, and how to choose the right one for your machining needs.


What is a Lathe?

A lathe is a machine tool that rotates a workpiece about a horizontal or vertical axis to perform various operations like cutting, sanding, drilling, or shaping. The key characteristic of a lathe is its ability to rotate the workpiece while a cutting tool is applied to shape it, making it ideal for cylindrical and conical shapes.

Types of Lathes: Manual vs CNC

  • Manual Lathes: These are operated manually by machine operators, allowing for more flexibility but requiring a high skill level.

  • CNC Lathes: Computer Numerical Control (CNC) lathes use pre-programmed commands to control the movements of the machine, allowing for higher precision and repeatability, which is critical for mass production.

Key Components of a Lathe

  • Headstock: The part of the lathe that houses the spindle and motor.

  • Tailstock: Used to hold the opposite end of the workpiece.

  • Carriage: Carries the tool post and controls the movement of the cutting tool.

  • Tool Post: Holds the cutting tool and allows for its adjustment.


What is a Horizontal Lathe?

A horizontal lathe is a type of lathe where the spindle is oriented horizontally. The workpiece is mounted on the spindle, which rotates it while the cutting tool is moved along the length of the workpiece.

Design and Setup

Horizontal lathes typically have a long bed where the spindle and carriage are positioned. The tool holder and cutting tool move along the bed, making them suitable for large and heavy workpieces.

Mechanism

The key feature of horizontal lathes is the horizontal spindle that holds and rotates the workpiece. The cutting tools move along the X, Y, and sometimes Z axes to remove material from the workpiece.

Advantages of Horizontal Lathes

  • Stability: Horizontal lathes provide greater stability, especially when machining heavy or large workpieces.

  • Precision: These lathes are known for their high precision, especially in mass production settings where consistency is crucial.

  • Versatility: They are suitable for machining longer parts or larger components such as shafts, rods, and tubes.

Disadvantages of Horizontal Lathes

  • Space Requirements: Horizontal lathes are generally larger in size and take up more space in a workshop.

  • Limited Access: The design can make it more difficult to access certain parts of the workpiece for more complex operations.

Applications of Horizontal Lathes

  • Automotive Industry: Horizontal lathes are commonly used to machine large components like engine blocks and transmission shafts.

  • Aerospace: Parts that require high precision and stability, like turbine blades, are often manufactured using horizontal lathes.

  • Heavy Manufacturing: These lathes are ideal for large, complex parts found in industries like mining, power generation, and construction.


What is a Vertical Lathe?

A vertical lathe has a spindle mounted in a vertical position, with the workpiece typically mounted on a rotary table. This orientation allows for efficient gravity-assisted machining, especially for parts with uneven weight distributions.

Design and Setup

Vertical lathes have a compact design with a vertical spindle and are generally used for smaller, lighter workpieces. The workpiece is held in a rotating chuck or fixture, which allows the cutting tools to approach the part from the top.

Mechanism

Vertical lathes are characterized by their vertical spindle, which holds the workpiece in place while rotating. The cutting tool is moved along the vertical and horizontal axes to shape the workpiece.

Advantages of Vertical Lathes

  • Space Efficiency: Vertical lathes often take up less floor space, which is an advantage in smaller workshops.

  • Accessibility: The vertical design makes it easier to access the workpiece for specific operations such as drilling or tapping.

  • Precision: Vertical lathes are ideal for precision operations, particularly on parts with smaller diameters or complex shapes.

Disadvantages of Vertical Lathes

  • Stability Issues: For large workpieces, vertical lathes may not provide the same level of stability as horizontal lathes.

  • Limited Cutting Capacity: Vertical lathes generally have a lower cutting capacity than horizontal lathes, limiting their ability to handle larger parts.

Applications of Vertical Lathes

  • Precision Industries: Vertical lathes are widely used in industries that require high-precision machining, such as electronics, medical devices, and small aerospace parts.

  • Light Manufacturing: Vertical lathes are ideal for small, intricate parts like bearings, bushings, and gears.

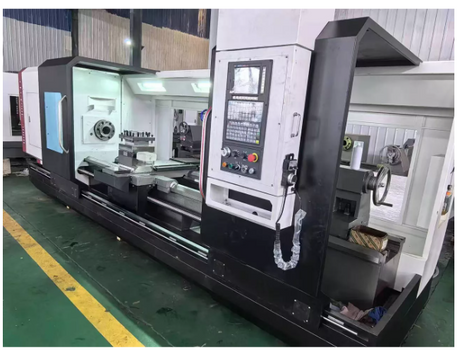

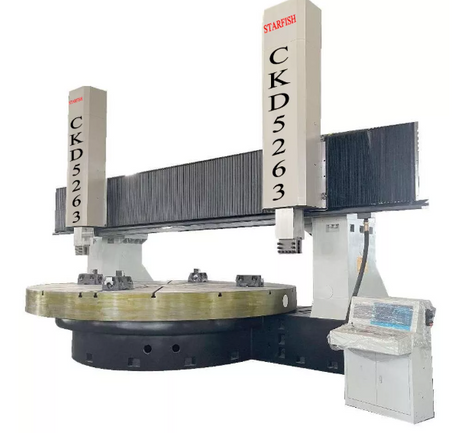

vertical lathe


Horizontal Lathe vs Vertical Lathe: Key Differences

Understanding the differences between horizontal and vertical lathes is crucial for selecting the right machine for your specific needs.

Positioning of the Spindle

  • Horizontal Lathe: The spindle is horizontal, and the workpiece is rotated on the horizontal axis.

  • Vertical Lathe: The spindle is vertical, and the workpiece is held in a vertical position on a rotating table.

Workpiece Loading

  • Horizontal Lathe: The workpiece is loaded onto the spindle from the front, making it easier to handle larger and heavier workpieces.

  • Vertical Lathe: The workpiece is loaded onto a rotary table from the top, allowing for easier access to smaller parts.

Cutting Capacity

  • Horizontal Lathe: Ideal for larger, heavy-duty workpieces and longer components.

  • Vertical Lathe: Better suited for smaller, lighter workpieces and components with a smaller diameter.

Machining Efficiency

  • Horizontal Lathe: More efficient for high-volume production of larger parts.

  • Vertical Lathe: More efficient for smaller, complex parts that require high precision.

Space Considerations

  • Horizontal Lathe: Requires more floor space due to its larger size.

  • Vertical Lathe: More compact and requires less floor space, making it ideal for smaller workshops.

Which Lathe is Right for You? Choosing Between Horizontal and Vertical Lathes

When choosing between a horizontal and vertical lathe, several factors must be considered to ensure you select the machine best suited for your needs:

Factors to Consider

  • Material: Horizontal lathes are better for heavier materials, while vertical lathes are ideal for precision work.

  • Size and Weight: For large and heavy parts, a horizontal lathe is generally the better choice, while smaller parts can be machined on a vertical lathe.

  • Precision: If high precision is needed, a vertical lathe is often more appropriate, especially for smaller components.

  • Space: Vertical lathes are more space-efficient, making them better suited for smaller workshops.


When to Use a Horizontal Lathe

Horizontal lathes are ideal when:

  • You need to machine large, heavy parts.

  • The workpieces are longer or have a larger diameter.

  • Stability and precision are a priority.

Applications:

  • Automotive parts like crankshafts.

  • Aerospace components such as turbine blades.

  • Manufacturing large shafts or tubes.


When to Use a Vertical Lathe

Vertical lathes excel when:

  • Smaller, more intricate parts are being machined.

  • You need a more compact machine for limited space.

  • Parts with uneven weight distributions need to be machined.

Applications:

  • Precision manufacturing in electronics.

  • Small aerospace components.

  • Parts like bearings and bushings.


Horizontal vs Vertical Lathe: Cost Comparison

Initial Cost

  • Horizontal Lathes: Tend to be more expensive due to their larger size and higher capacity.

  • Vertical Lathes: Generally less expensive, especially when smaller models are used for precision work.

Maintenance Costs

  • Horizontal Lathes: May incur higher maintenance costs due to the complexity of their design and the size of the components.

  • Vertical Lathes: Often have lower maintenance costs due to their simpler design and smaller components.


Conclusion

Both horizontal and vertical lathes have distinct advantages and disadvantages depending on the specific needs of your business. Horizontal lathes are better suited for large, heavy-duty machining tasks, while vertical lathes excel in high-precision, smaller parts machining. Understanding the key differences, such as spindle positioning, workpiece size, and space requirements, will help you make the right choice for your workshop or factory.


FAQs


Q: What is the main difference between a horizontal and vertical lathe?

A: The main difference lies in spindle orientation; horizontal lathes have a horizontal spindle, while vertical lathes have a vertical spindle.

Q: Which lathe type is best for precision work?

A: Vertical lathes are often preferred for precision work due to their accessibility and stability for smaller parts.

Q: Can a vertical lathe handle large workpieces?

A: Vertical lathes are generally better for smaller or lighter workpieces, not large, heavy ones.

Q: What types of industries use horizontal and vertical lathes?

A: Horizontal lathes are used in automotive and aerospace, while vertical lathes are common in electronics and medical industries.

Q: Are vertical lathes more affordable than horizontal ones?

A: Vertical lathes are typically more affordable, especially in smaller sizes, due to their simpler design.

Q: Do horizontal lathes require more space than vertical lathes?

A: Yes, horizontal lathes usually require more floor space due to their larger size and design.
