Heavy Duty Conventional Horizontal Lathe Model:CW61100,CW61125,CW61400
| Quantity: | |
|---|---|

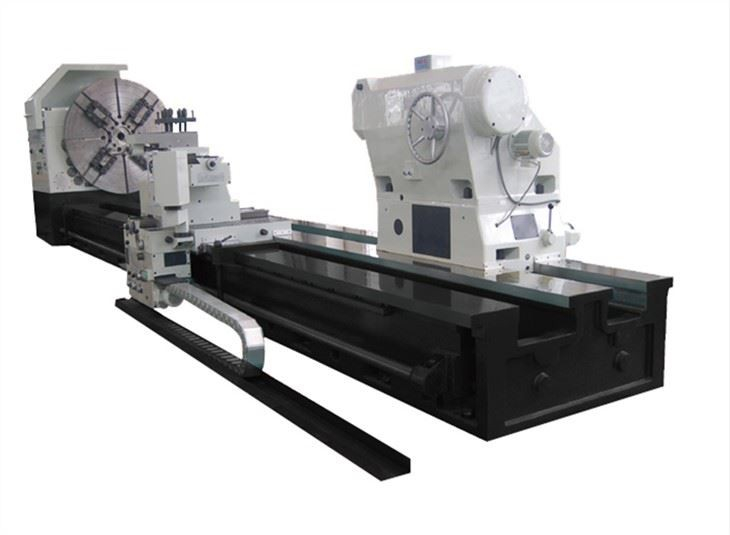

Product Introduction of Heavy Duty Conventional Horizontal Lathe
The Heavy Duty Conventional Horizontal Lathe are fabricated using high grade materials and components and are especially designed to do medium size work. These products are used in power plant, ship building, steel and paper mills, textile and oil industries. While manufacturing these machines we check the quality of the product in each step of production so that we will provide quality product to our clients. With the objective to suit the specific needs of the clients, we offer customized solutions to them.
Feature:
The machine tool gearbox is a mechanism used to change the main motion speed of the machine tool (such as the spindle speed, the number of reciprocating strokes per minute of the worktable, etc.). It can be separately installed in a box to form a part of the machine tool, or it can be installed in a box together with other mechanisms.
Tool post is a member of a machine (as of a lathe) on which the tool carriage moves at right angles to its principal direction of travel.
Products Specification of Heavy Duty Conventional Horizontal Lathe
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 755 | ||
Loading weight | Kg | 6000-20000 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000-10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||
Product Introduction of Heavy Duty Conventional Horizontal Lathe
The Heavy Duty Conventional Horizontal Lathe are fabricated using high grade materials and components and are especially designed to do medium size work. These products are used in power plant, ship building, steel and paper mills, textile and oil industries. While manufacturing these machines we check the quality of the product in each step of production so that we will provide quality product to our clients. With the objective to suit the specific needs of the clients, we offer customized solutions to them.
Feature:
The machine tool gearbox is a mechanism used to change the main motion speed of the machine tool (such as the spindle speed, the number of reciprocating strokes per minute of the worktable, etc.). It can be separately installed in a box to form a part of the machine tool, or it can be installed in a box together with other mechanisms.
Tool post is a member of a machine (as of a lathe) on which the tool carriage moves at right angles to its principal direction of travel.
Products Specification of Heavy Duty Conventional Horizontal Lathe
Item | Unit | CW61100 | CW61125 | CW61140 |
Swing over bed | mm | 1000 | 1250 | 1400 |
Swing over cross slide | mm | 615 | 860 | 1010 |
Wdith of guideway | mm | 755 | ||
Loading weight | Kg | 6000-20000 | ||
Distance between center | mm | 1000/1500/2000/3000/4000/5000-10000 | ||
Max. workpiece through spindle | mm | 128 | ||
Spindle bore | mm | 130 | ||
Taper of spindle bore | Metric 140 | |||
Range of spindle speed | r/min | Clockwise: 21kinds 3.15-315 | ||
r/min | Anti Clockwise: 12kinds 5-400 | |||
Step of feed | kinds | 56 kinds | ||
Longitudinal feed range | 0.1-12mm/r | |||
Cross to longitudinal feed rate | 0.05-6mm/r | |||
Carriage rapid moving feed rate | m/min | 0.025-3mm/r | ||
Metric threads range | mm | 43 1-120mm | ||
Inch threads range | mm | 29 28-3/8teeth/inch | ||
Module threads range | mm | 45 0.5-60mm | ||
Pitch threads range | 1/inch | 25 1-55 | ||
Distance between center line of spindle to tool post | mm | 48 | ||
Section of tools shank | mm | 45x45 | ||
Swivel anger of tool pos | ±90° | |||
Max..travel of cross slide | mm | 1450, 1950-14950 | ||
Max..travel of top slide | mm | 520/750 | ||
Rapid travel speed | mm | Longitudinal:3740mm/min | ||
Cross: 3740mm/min | ||||
Slide | ||||
Center quill diameter and travel | mm | 140, 300 | ||
Tailstock quill taper | mm | Metric 80 | ||
Main motor power | kW | 22 | ||
Motor rotation speed | r/m | 1470 | ||
Slide rapid motor pwer | kW | 1.5 | ||
Coolant motor power | kW | 0.15 | ||
Coolant pump flow | L/M | 45 | ||
