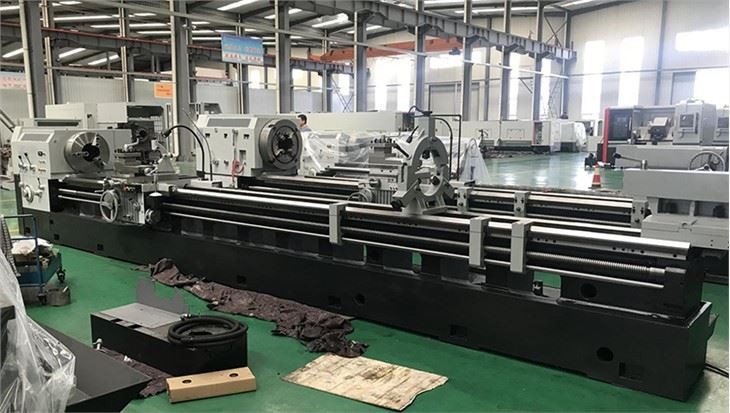

Product Introduction of Big Spindle Bore Lathe
The Big Bore Spindle Lathe is fabricated using high grade materials and components and are especially designed to do medium size work. These products are used in power plant, ship building, steel and paper mills, textile and oil industries. While manufacturing these machines we check the quality of the product in each step of production so that we will provide quality product to our clients. With the objective to suit the specific needs of the clients, we offer customized solutions to them
Products Specification of Big Spindle Bore Lathe
Item | Unit | CK6628 | CK6636 | CK6646 | 6663 |
Swing over bed | mm | 1000 | 1000 | 1200 | 1400 |
Swing over carriage | mm | 650 | 640 | 800 | 1100 |
Spindle Bore | mm | 280 | 360 | 460 | 630 |
Max. Load between center | Ton | 4 | 6 | 6 | 10 |
Bed Width | mm | 600 | 755 | 970 | 970 |
Spindle speed | rpm | 5-500 | 3.15-315 | 3.15-315 | 2-200 |
Spindle motor | kW | 18.5 | 22 | 30 | 37 |
Machine weight of 3 meters | Kg | 6800 | 12000 | 14000 | 17000 |
Machine weightof 3 meters | LXWXH | 5750X1650X1550 | 6300X1650X1700 | 6300X2550X1850 | 6300X2875X1850 |
