Overview
The ZJ Portable General Purpose Drilling Machine is a lightweight, versatile solution designed for on-site drilling, maintenance, and light fabrication tasks. Combining portability with reliable performance, it enables operators to drill precise holes in various materials (metal, wood, plastic) in remote or confined spaces where fixed machines are impractical.
Features
Compact & Lightweight Design
Portable Form Factor: Weighs just 18kg (motor + base) with dimensions 450x300x200mm, fitting into standard tool cases for easy transport to job sites.
Handheld/Tabletop Use: Adjustable base with rubber feet for stable tabletop operation, or optional pistol grip for handheld drilling in hard-to-reach areas.
Adaptable Performance
Variable Speed Motor: 1,800W brushless motor (100-2,500 RPM) with electronic speed control, suitable for drilling 0.5-25mm diameter holes in steel, aluminum, and composites.
Clutch Protection: Torque-limiting clutch (max 30N·m) prevents motor overload and workpiece damage during tough cuts, extending tool life.
Precision & Control
Laser Alignment System: Built-in red laser pointer (accuracy ±1mm at 1m distance) for precise hole positioning, eliminating manual measuring errors.
Depth Gauge: Adjustable mechanical depth stop (0-100mm travel) with digital readout (0.1mm resolution), ensuring consistent hole depths without over-drilling.
User-Friendly Operation
Ergonomic Design: Rubberized grip with anti-vibration mounts (vibration amplitude <2.5mm/s), reducing operator fatigue during extended use.
Quick-Change Chuck: Keyless 1/2"-20 UNF chuck (1-13mm capacity) for fast drill bit changes, compatible with standard twist drills and masonry bits.
Application
On-Site Maintenance: Drilling replacement holes in machinery, pipelines, and structural steel during repair work in factories, construction sites, or shipyards.
DIY & Light Fabrication: Ideal for hobbyists, small workshops, and home projects (e.g., installing fixtures, modifying furniture, crafting metal art).
Mobile Repairs: Used by service technicians for on-the-go drilling in vehicles (trucks, trains), agricultural equipment, and outdoor installations.
Why Choose Us
Unmatched Portability: The lightest drilling machine in its class (18kg) with cordless battery option (20V, 4.0Ah), enabling truly mobile operation without power constraints.
Versatile Compatibility: Works with standard HSS, carbide, and cobalt drill bits, adapting to materials from soft aluminum to hardened steel (up to 30HRC).
Reliability & Value: CE/UL certified with a 2-year warranty, offering professional-grade performance at an affordable price point for both DIY and commercial users.
| Quantity: | |
|---|---|
Combining portability with reliable performance, it enables operators to drill precise holes in various materials (metal, wood, plastic) in remote or confined spaces where fixed machines are impractical.
Compact & Lightweight Design
Portable Form Factor: Weighs just 18kg (motor + base) with dimensions 450x300x200mm, fitting into standard tool cases for easy transport to job sites.
Handheld/Tabletop Use: Adjustable base with rubber feet for stable tabletop operation, or optional pistol grip for handheld drilling in hard-to-reach areas.
Adaptable Performance
Variable Speed Motor: 1,800W brushless motor (100-2,500 RPM) with electronic speed control, suitable for drilling 0.5-25mm diameter holes in steel, aluminum, and composites.
Clutch Protection: Torque-limiting clutch (max 30N·m) prevents motor overload and workpiece damage during tough cuts, extending tool life.
Precision & Control
Laser Alignment System: Built-in red laser pointer (accuracy ±1mm at 1m distance) for precise hole positioning, eliminating manual measuring errors.
Depth Gauge: Adjustable mechanical depth stop (0-100mm travel) with digital readout (0.1mm resolution), ensuring consistent hole depths without over-drilling.
User-Friendly Operation
Ergonomic Design: Rubberized grip with anti-vibration mounts (vibration amplitude <2.5mm/s), reducing operator fatigue during extended use.
Quick-Change Chuck: Keyless 1/2"-20 UNF chuck (1-13mm capacity) for fast drill bit changes, compatible with standard twist drills and masonry bits.
On-Site Maintenance: Drilling replacement holes in machinery, pipelines, and structural steel during repair work in factories, construction sites, or shipyards.
DIY & Light Fabrication: Ideal for hobbyists, small workshops, and home projects (e.g., installing fixtures, modifying furniture, crafting metal art).
Mobile Repairs: Used by service technicians for on-the-go drilling in vehicles (trucks, trains), agricultural equipment, and outdoor installations.
Unmatched Portability: The lightest drilling machine in its class (18kg) with cordless battery option (20V, 4.0Ah), enabling truly mobile operation without power constraints.
Versatile Compatibility: Works with standard HSS, carbide, and cobalt drill bits, adapting to materials from soft aluminum to hardened steel (up to 30HRC).
Reliability & Value: CE/UL certified with a 2-year warranty, offering professional-grade performance at an affordable price point for both DIY and commercial users.

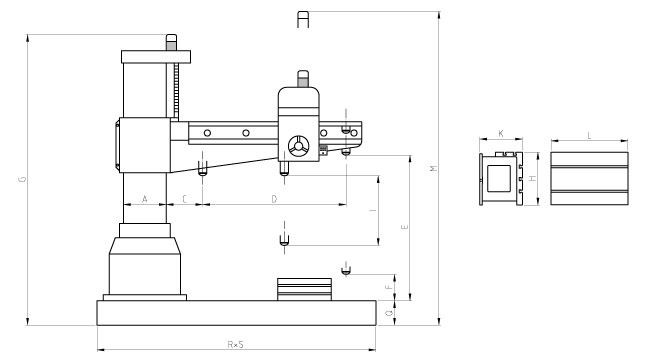

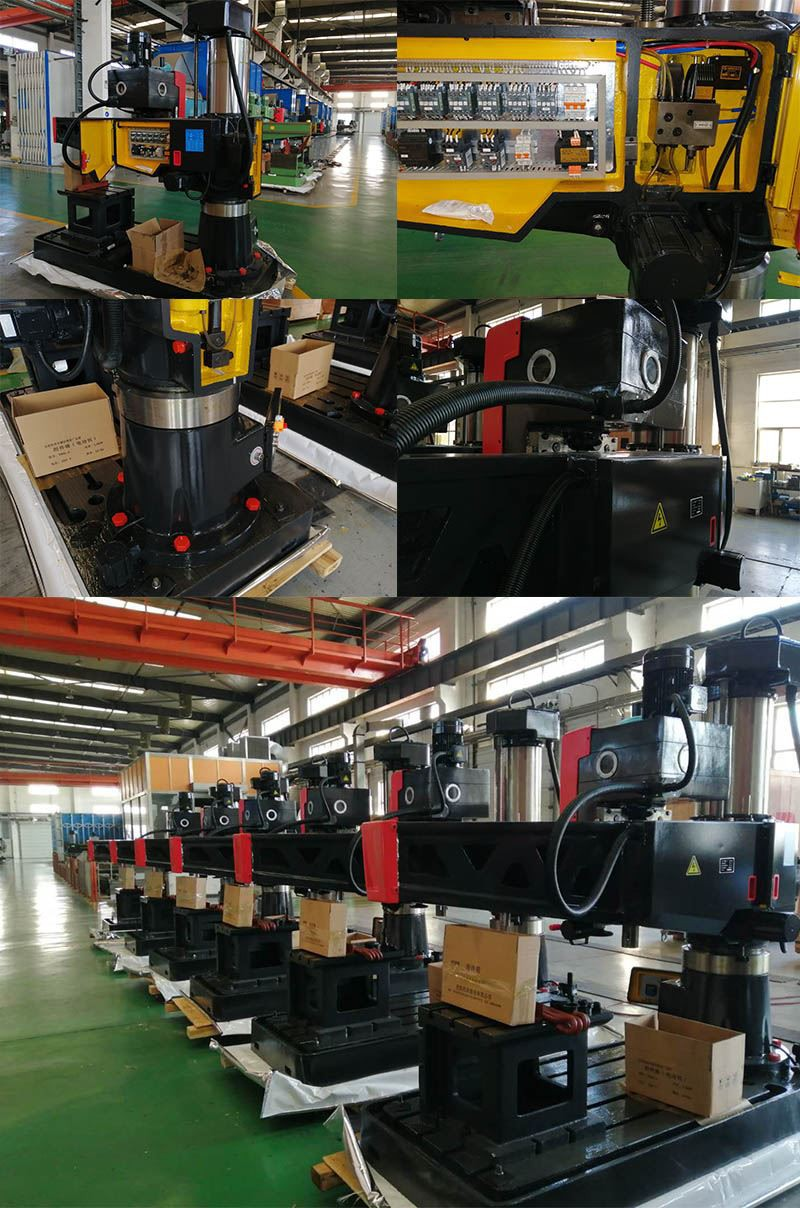

Item | Unit | Z3040x16/1 | Z3050x16/1 | Z3063x20/1 | Z3080x25 | Z30100x31 | |
Maximum drilling diameter | mm | 40 | 50 | 63 | 80 | 100 | |
Spindle center line to column bus distance | max | mm | 1600 | 1600 | 2000 | 2500 | 3150 |
min | mm | 350 | 350 | 450 | 500 | 570 | |
Spindle nose to base working space | max | mm | 1250 | 1220 | 1600 | 2000 | 2500 |
min | mm | 350 | 320 | 400 | 550 | 750 | |
Spindle travel | mm | 315 | 315 | 400 | 450 | 500 | |
Spindle taper | Morse 4# | Morse 5# | Morse 5# | Morse 6# | Morse 6# | ||
Spindle speed range | r/min | 25-2000 | 25-2000 | 25-1600 | 16-1250 | 8-1000 | |
Spindle speed | level | 16 | 16 | 16 | 16 | 22 | |
Spindle feed range | mm/r | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.06-3.2 | |
Spindle feed level | level | 16 | 16 | 16 | 16 | 16 | |
Worktable size | mm | 630*500*500 | 630*500*500 | 800*630*500 | 1000*800*560 | 1250*800*630 | |
Horizontal movement of headstock arm | mm | 1250 | 1250 | 1550 | 2000 | 2580 | |
Spindle allows maximum torque | N.M | 400 | 500 | 980 | 1568 | 2450 | |
Main motor power | kW | 3 | 4 | 5.5 | 7.5 | 15 | |
Rocker arm lifting distance | mm | 580 | 580 | 800 | 1000 | 1250 | |
Machine weight | Kg | 3500 | 3500 | 7000 | 11000 | 20000 | |
Machine size | mm | 2500*1070*2840 | 2500*1070*2840 | 3080*1250*3205 | 3730*1400*3795 | ||
S/N | Item | Tolerance |
1 | Flatness of the working surface of the base | At 1000 measuring length: 0.10 flat or concave |
2 | Parallelism of the headstock movement to the working surface of the base | The measurement length at any 1000 is: 0.30 |
3 | Parallelism of the rocker arm movement to the working surface of the base | Measuring length at any 300: 0.05 |
4 | 1. Radial runout of the axis of the spindle taper hole: | 1：0.02 2：0.04 |
5 | 1. Close to the end face of the spindle | 0.20/1000* *Indicator probe measuring contact distance |
6 | 2. 300 points away from the end face of the spindle | A 0.10/300 B 0.05/300 |
7 | The perpendicularity of the spindle axis to the working surface of the base | A0.06 B0.10 |
8 | The verticality of the working surface of the spindle vertical movement base | Load value (feed resistance) 15200Na.b3/1000 The distance between the two contacts of the indicator |
