In today’s highly competitive manufacturing environment, efficiency, precision, and versatility are critical. As technology continues to evolve, so do the tools that manufacturers rely on to produce high-quality parts. Among the most significant advancements in machining technology is the Vertical Machining Center (VMC) — a CNC-driven machine that has redefined how modern workshops operate.
While traditional milling machines have long been the backbone of metalworking shops, Vertical Machining Centers offer a more advanced and automated approach. Both machines are used for similar tasks such as cutting, drilling, and shaping materials, but they differ greatly in terms of structure, performance, automation, and application scope.
One of the primary distinctions between a Vertical Machining Center and a traditional milling machine lies in their structure, which directly impacts performance, rigidity, and precision.
In a Vertical Machining Center, the spindle is vertically aligned — it moves up and down on the Z-axis while the table typically handles movements in the X and Y directions. This vertical configuration is particularly effective for die sinking, contouring, and precision milling operations on relatively flat workpieces.
Traditional milling machines, on the other hand, may use either vertical or horizontal spindles. Horizontal milling machines have spindles positioned parallel to the floor, which makes them more suitable for heavy-duty material removal and deep cuts. However, they are less flexible than VMCs when it comes to working on complex geometries.
Modern VMCs are designed with fully enclosed workspaces. This enclosure helps contain chips and coolant, keeping the work area cleaner and safer. More importantly, it contributes to machine rigidity, which is essential for maintaining dimensional accuracy and part consistency.
Traditional mills, especially manual types, often have open structures. These are easier to maintain but more prone to environmental effects such as vibration, dust, and debris, which can degrade machining quality over time.
Thanks to their heavy-duty cast iron frames, linear guideways, and advanced thermal control, Vertical Machining Centers exhibit excellent structural stability. This allows them to maintain tight tolerances, even during high-speed or prolonged machining processes. Traditional milling machines, while effective for simpler tasks, typically struggle with this level of precision, especially under heavy or high-speed loads.
Automation is where VMCs truly outperform traditional milling machines, offering manufacturers a clear pathway toward higher productivity and reduced labor costs.
Vertical Machining Centers are integrated with Computer Numerical Control (CNC) systems that automate tool paths, spindle speeds, feed rates, and tool changes. Well-known systems such as FANUC, Siemens, and Mitsubishi provide precise control and repeatability, reducing the reliance on operator skill and human judgment.
Traditional milling machines are often manually controlled or only partially automated. Operators need to manually adjust feed rates, change tools, and reposition workpieces, which introduces more room for error and reduces throughput.
One of the biggest technological advantages of modern VMCs is their support for multi-axis machining. While basic models operate on 3 axes (X, Y, Z), advanced models can support 4-axis or even 5-axis machining. This allows for the creation of complex geometries in a single setup — essential for aerospace, medical, and automotive components.
In contrast, traditional mills typically operate on 2.5 or 3 axes. Achieving complex geometries often requires multiple setups and reorientations, increasing the chance for misalignment and extending production time.
Speed and consistency are vital in production environments, and this is where Vertical Machining Centers deliver significant advantages.
Thanks to their CNC automation and user-friendly interfaces, VMCs drastically reduce the time required for setup and job changeover. Programs can be stored, retrieved, and reused, eliminating the need to manually recalibrate settings each time a new part is produced.
Traditional mills require manual adjustments for each new job, including fixture alignment and tool measurement. This not only consumes valuable time but also introduces variability between runs.
VMCs often feature high-speed spindles (ranging from 8,000 to 24,000 RPM or more) and automatic tool changers (ATCs) that allow seamless switching between tools. Some models can hold up to 60 tools and perform tool changes in less than two seconds.
Traditional machines, especially older models, require manual tool changes — a time-consuming and labor-intensive process that affects overall cycle time and productivity.
VMCs require minimal human involvement once the machining cycle begins. This not only enhances safety but also reduces the risk of human error. Traditional milling machines need constant supervision, making them less suitable for unattended or overnight operations.
Precision is a cornerstone of modern machining, especially in industries like aerospace, defense, and medical equipment manufacturing.
The advanced servo systems and closed-loop feedback controls in Vertical Machining Centers allow them to consistently maintain positioning accuracy in the micron range. This repeatability is critical for mass production and precision components.
Traditional milling machines, while capable of accurate cuts, depend heavily on operator skill and environmental stability. Over time, wear and tear can also affect their ability to produce consistent results.
Thanks to high spindle speeds, vibration damping structures, and advanced control algorithms, VMCs deliver exceptional surface finishes — even on complex or delicate parts. Smooth surfaces are crucial for parts that require tight seals, low friction, or aesthetic appeal.
Traditional mills often require secondary processes like grinding or polishing to achieve comparable finishes, which increases cost and lead time.
Vertical Machining Centers are ideal for producing parts with intricate shapes, tight tolerances, and multi-surface contours. Industries such as aerospace, mold-making, automotive, and electronics benefit greatly from VMCs' precision and versatility.
They can handle a wide range of materials, from aluminum and copper to hardened steel and titanium, making them a go-to choice for diverse applications.
Despite their limitations, traditional milling machines still have their place in modern workshops. For simple or one-off jobs, repairs, or large flat parts that don’t require high precision, manual mills can be more cost-effective.
Their lower upfront cost, ease of use, and simplicity make them suitable for educational environments, prototype workshops, and maintenance departments.
The choice between a Vertical Machining Center and a traditional milling machine depends largely on the complexity, volume, and precision requirements of your machining tasks. While traditional mills may be suitable for basic operations and low-volume runs, VMCs offer a future-proof solution that delivers unmatched speed, accuracy, and efficiency.
With features like multi-axis CNC control, high-speed spindles, automated tool changers, and enclosed machining environments, Vertical Machining Centers are the clear choice for manufacturers aiming to stay competitive in today’s precision-driven market.

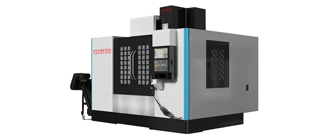

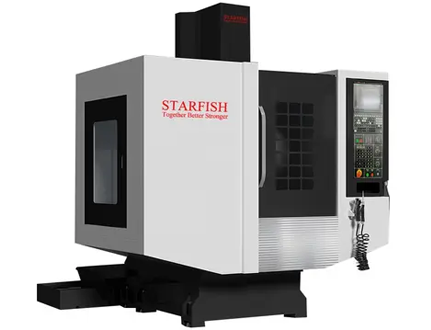

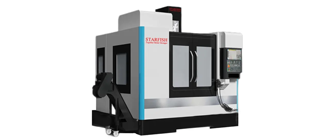

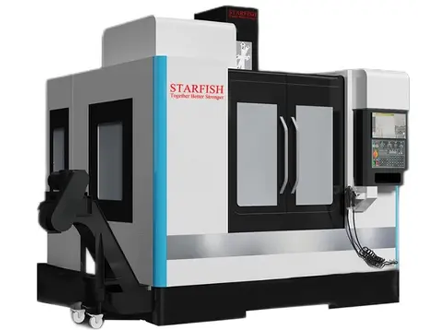

If you're considering upgrading your workshop or starting a new machining line, Starfish Ruhr Heavy Machinery Technology (Dalian) Co., Ltd. offers a wide range of advanced Vertical Machining Centers tailored to meet diverse industrial needs. From compact high-speed models to large-format 5-axis systems, their machines are built with precision, reliability, and durability in mind.
