Feature of CNC Horizontal Lathe Machine
1. This series CNC lathe is suitable for performing internal and external turning, facing, slotting and machining of metric, module and diameter threads as well as automatic change of tool post. It can realize continuously turning and preserving machining process of many workpiece for choice. It is suitable for turning shaft, disc and sleeve workpieces, as well as small batch production and various similar workpiece with different spec. and kinds.
2. This series lathes have strong power with good rigidity, and of pleasing appearance with easy operation. The accuracy of workpiece it turned reaches IT7, and surface roughness is Ra 3.2цm.
3. The main shaft can adopt frequency conversion stepless speed regulation and three support main shaft structure with good rigidity.
4. Wide cutting range, can process the outer circle and inner hole. End face, cutting groove, conical surface, chamfering, conical or cylindrical thread and arc surface.
5. Suited for cutting workpleces which have various shapes and sizes.
6. High machining precision and stable machining quality.
Parameter of CNC Horizontal Lathe Machine
Item | unit | CK6150 | CK6163 | CK6180 | CK61100 | CK61125 |
Swing over bed | mm | 300 | 630 | 800 | 1000 | 1250 |
Swing over carriage | mm | 650 | 335 | 400 | 650 | 850 |
Max. workpiece length | mm | 1000-10000 | ||||
Guideway width | mm | 420 | 550 | 600 | 600 | 600 |
Spindle taper | mm | 90, 1:120 | 120 1:120 | 120 1:120 | 120 1:120 | 120 1:120 |
Spindle speed | r/min | 50-1600 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 | 70-260. 25-100, 220-850 |
Spindle end structure | C8 | C11 | C11 | C11 | C11 | |
Spindle bore | mm | 82 | 100 | 100 | 100 | 100 |
Main motor power ( frequency conversion) | kW | 7.5 | 11 | 11 | 11 | 11 |
| Tool post travel | mm | X: 300, Z:1000 | X: 400, Z: 1000-5000 | X: 500, Z: 1000-5000 | X: 500, Z: 1000-5000 | X: 500, Z: 1000-5000 |
Ballscrew diameter x pitch | mm | X: 2506 Z:6008 | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 | X: 3206, Z:5010-8312 |
Rapid feeding speed | mm/min | X:4000 Z:6000 | X:4000. Z:6000mm | X:4000. Z:6000mm | X:4000. Z:6000mm | X:4000. Z:6000mm |
Position precision | mm | X:0.010, Z:0.025 | X:0.012, Z0.032 | X:0.012, Z0.032 | X:0.012, Z0.032 | X:0.012, Z0.032 |
Re positioning precision | mm | X:0.005, Z:0.008 | X:0.006, Z:0.010 | X:0.006, Z:0.010 | X:0.006, Z:0.010 | X:0.006, Z:0.010 |
Machining preicision | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
Roughness | Ra 1.6 | Ra 1.6 | Ra 1.6 | Ra 1.6 | Ra 1.6 | |
Re position of tool post | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
Tool section | mm | 25x25 | 32X32 | 32X32 | 32X32 | 32X32 |
Tailstock quill diameter | mm | 75 | 100 | 100 | 100 | 100 |
Tailstock quill travel | mm | 150 | 250 | 250 | 250 | 250 |
Tailstock taper | Morse | 5# | 6# | 6# | 6# | 6# |
CNC system | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | Siemens, FANUC, GSK | |
Motor Torque | Nm | X:6, Z:10 | X:10, Z:15 | X:10, Z:15 | X:10, Z:15 | X:10, Z:15 |
Chuck diameter(three jaw | mm | 250 | 325 | 400 | 400 | 400 |

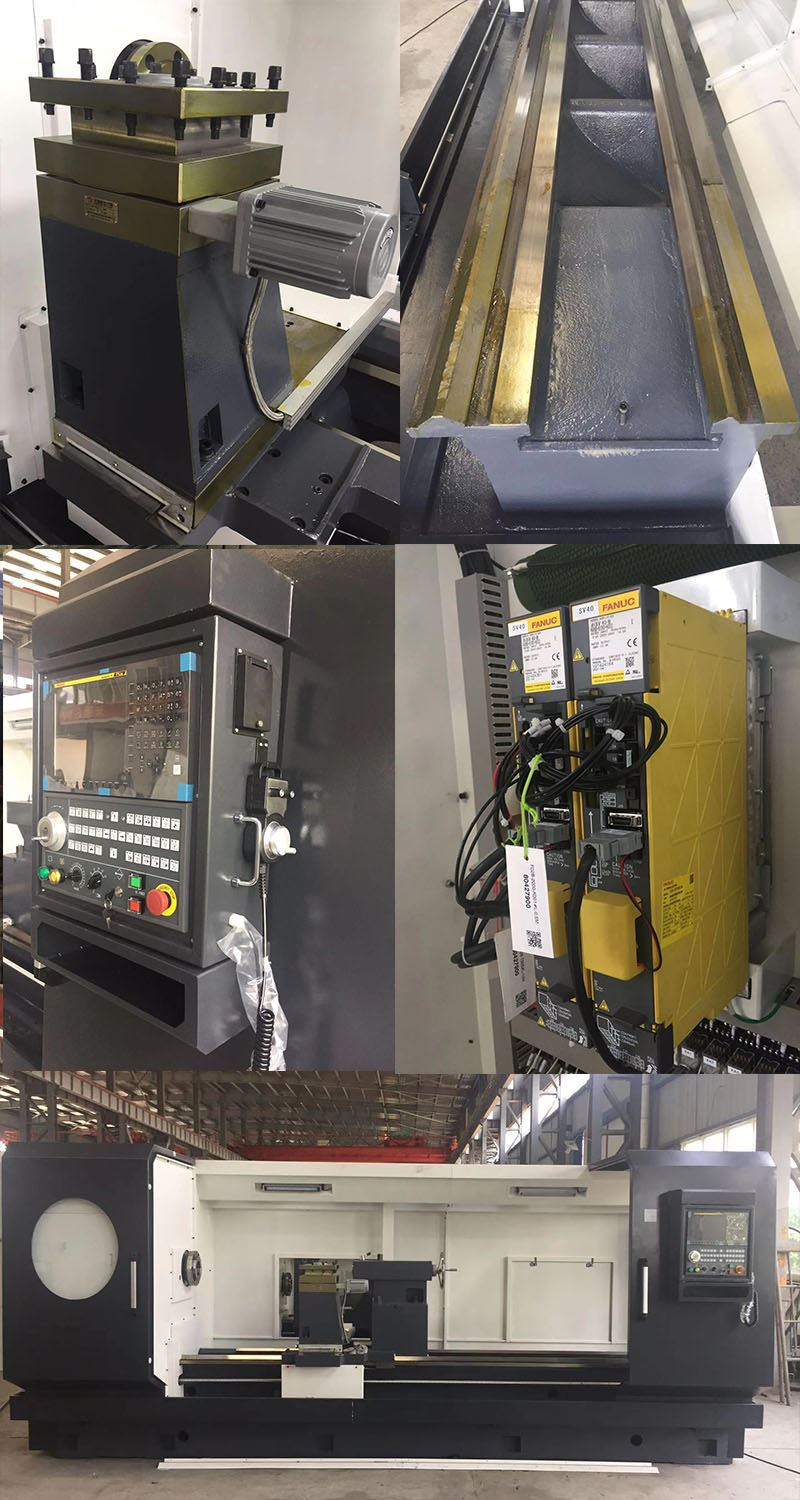

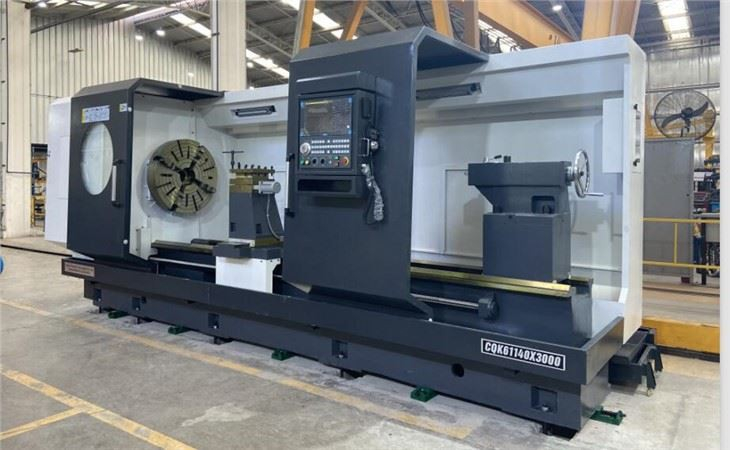

Details of CNC Horizontal Lathe Machine
