Max.turning diameter: 2500-16000mm
| Quantity: | |
|---|---|

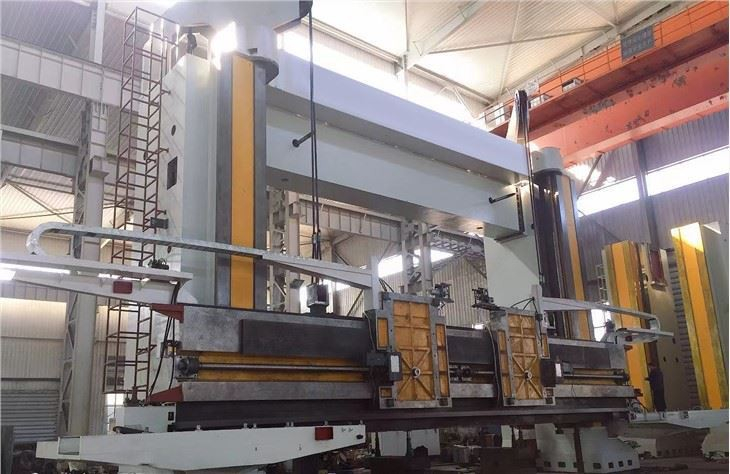

Introduction
This Double Column CNC Vertical Turret Lathe is suitable for high speed steel and hardware alloy cutting tools, for the cylinder, cone surface, end surface and grooving of ferrous metal, non-ferrous metal and some non-metallic parts.In the rough machining of the machine, the one-timeprocessing quantity of castings, steel castings, no. 45 steel and other materials shall not be less than 4mm.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Parameter
The Double Column CNC Vertical Turret Lathe can be equipped with C axis
Item | Unit | CK52100 | CK52125 |
Max. Worktable diameter | mm | 10000 | 12500 |
Max. Workpiece height | mm | 4000 | 5500 |
Worktable diameter | mm | 7500 | 7500 |
Max. Worktable weight | t | 150/250 | 250 |
Worktable rotation step | stepless | stepless | |
Worktable rotation speed | r/min | 0.2~20 | 0.16～16 |
Max. Worktable torque | KN·m | 640 | 640 |
Max. Turning Torque of Tool post | KN | 125 | |
Right tool feeding range | mm/min | - | 0.10~500 |
Right tool post rapid movement | mm/min | 4000 | 4000 |
Left tool post rapid movement | mm/min | 4000 | 4000 |
Left tool post feeding range | mm/min | - | 0.10~1000 |
Swing angle of tool post | - | - | |
Tool section | mm | 80x80 | 100x100（Max） |
Ram section | mm | 320x320 | 400x400 |
Beam travel | mm | 3250/3750/4500/5000 | 4000/4500/5000 |
Beam lifting speed | mm/min | 300 | 300 |
Main motor power | kW | 132 | 132 |
Weight | t | - | 465 |
Production details

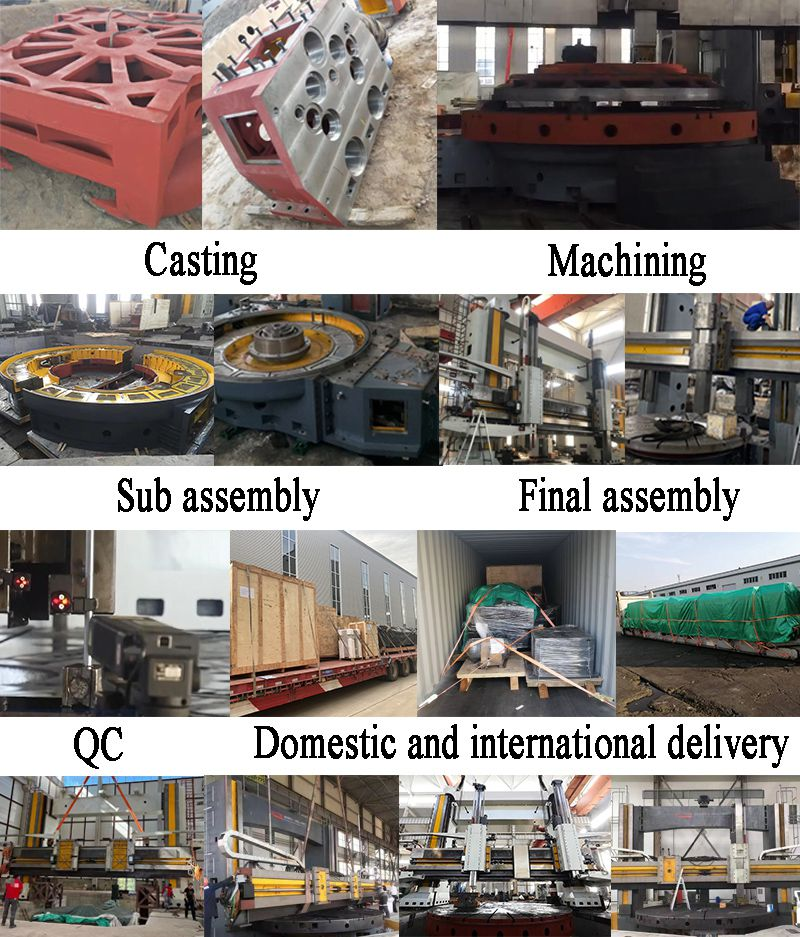

Work flow

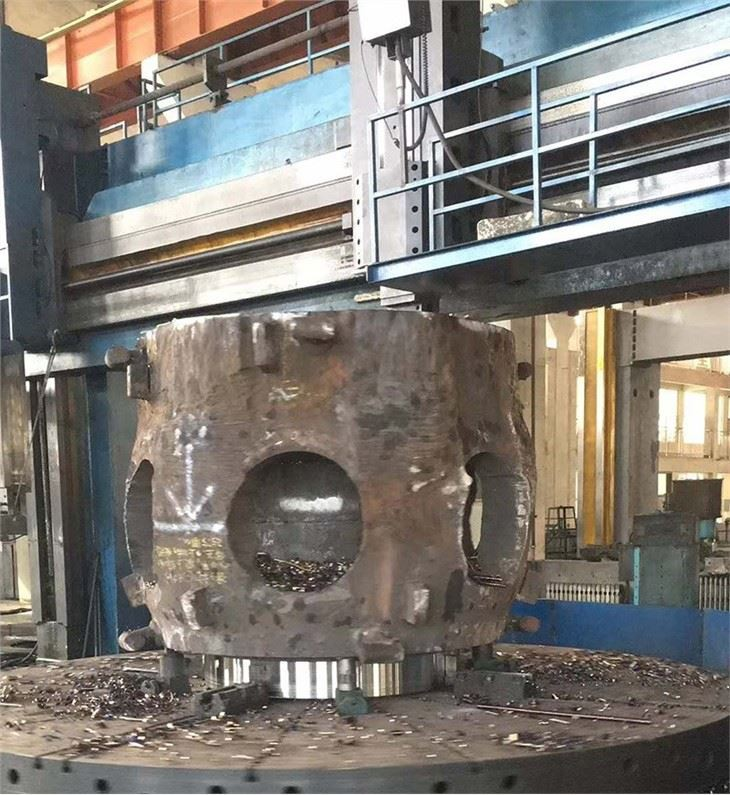

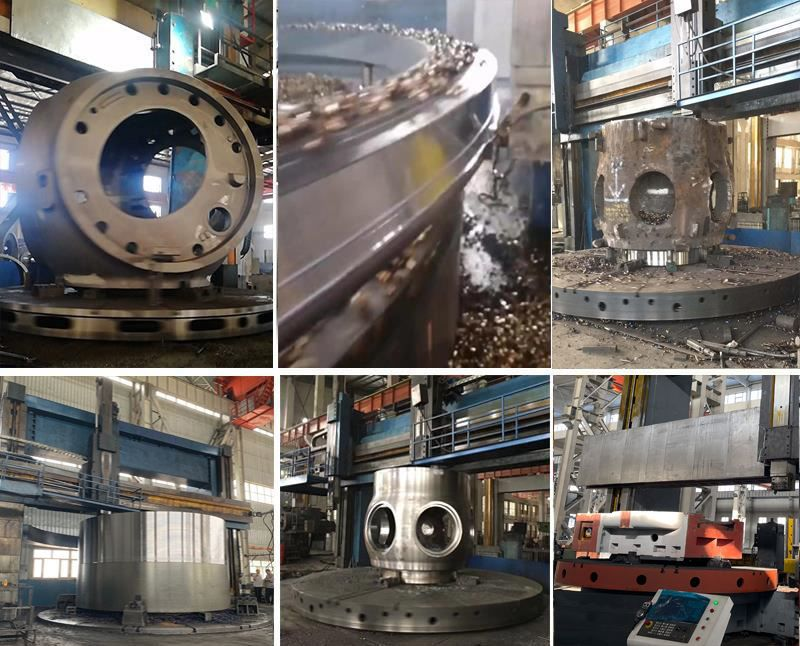

The CNC VTL is good at machining tougher work and better.
The machines has been working for wind power parts for many years.
More bigger parts, more steady machining, Customers of Double Turret Vertical Lathe
