Max. turning diameter of vertical tool post:(98’’)2500mm-(314’’)8000mm Max. height of work-piece: 2000mm-4000mm It is manufactured with rules of ISO and CE principle.
Quantity: | |
---|---|
Feature
(1)C5250 Vertical Lathe Working table adopts short spindle structure, NN3068K/W series of double row centripetal short cylindrical roller bearing, the inner ring with a taper hole, by adjusting the radial clearance, to ensure the accuracy of spindle.
(2) C5250 Vertical Lathe Gantry frame is composed of left and right column and the connecting beam. In the upper portion of gantry left-right lifting box, driven by a-c dynamo, make machine great strength and high stiffness, the aging treatment, eliminate stress, to ensure the accuracy of machine tools.
(3) C5250 Vertical Lathe Beam cast iron parts, high strength low stress has enough stiffness and strength, the aging treatment, ensure the accuracy of machine tools.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Specification
The vertical lathe can be equipped with C axis for milling and boring function.
Parameter | Unit | C5250 | |
Worktable diameter | mm | 4200 | |
Max, Turning diameter | mm | 5000 | |
Max. Workpiece height(H) | mm | 2500/3150 /4000 | |
Max. Workpiece weight(W) | t | 25/32/40/50/63 | |
Max. Turning force | Right tool post | N | 50000 |
Left Tool post | N | 35000 | |
Max. Workpiece torque | N·m | 80000 | |
Workpiece step | step | step | |
Workpiece rotation | rpm | 0.5-50 | |
Feeding step | step | 18 | |
Tool post feeding | mm/min | 1-500 | |
Beam travel | mm | 1750/2250/2850/3150 | |
Tool post travel | Horizontal | mm | 2700 |
Vertical | mm | 1400/1600/2000 | |
Beam travel speed | mm/min | 350 | |
Tool post rapid speed | mm/min | 4000 | |
Max. Tool post swing angle | ° | -15-+30 | |
Tool section | mm | 50*50 | |
Main motor power | KW | 75 | |
Weight | T | 70 |

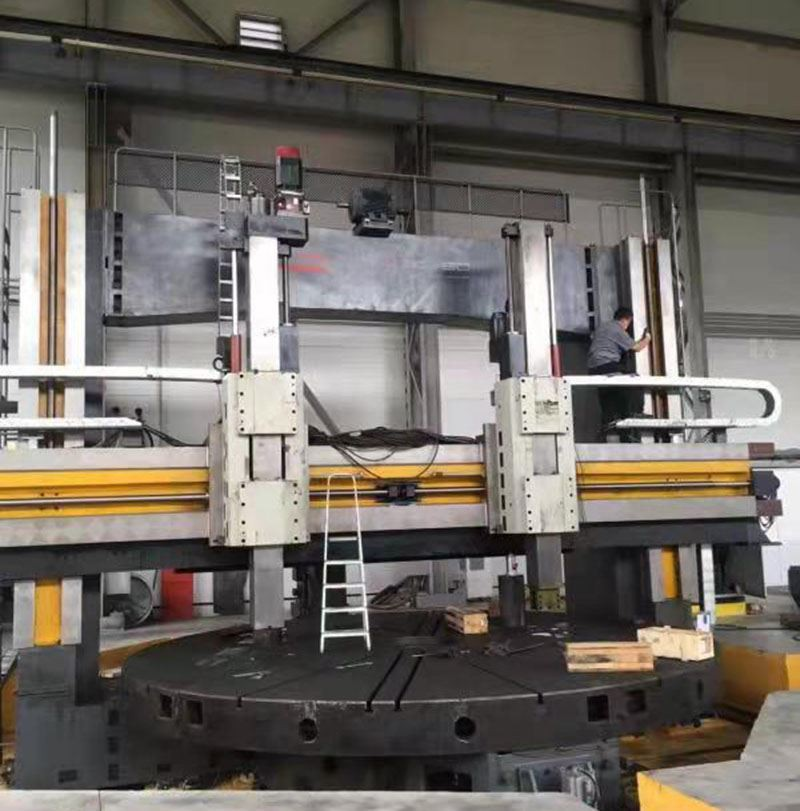

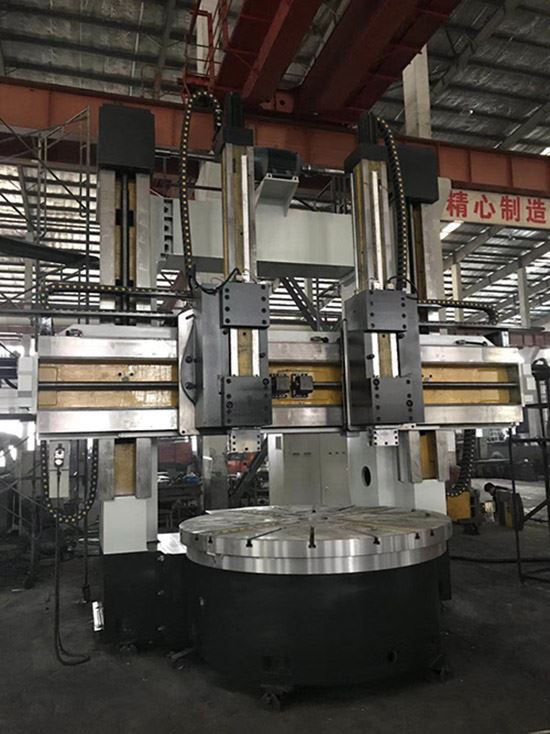

Details of Conventional Double Turret Vertical Lathe

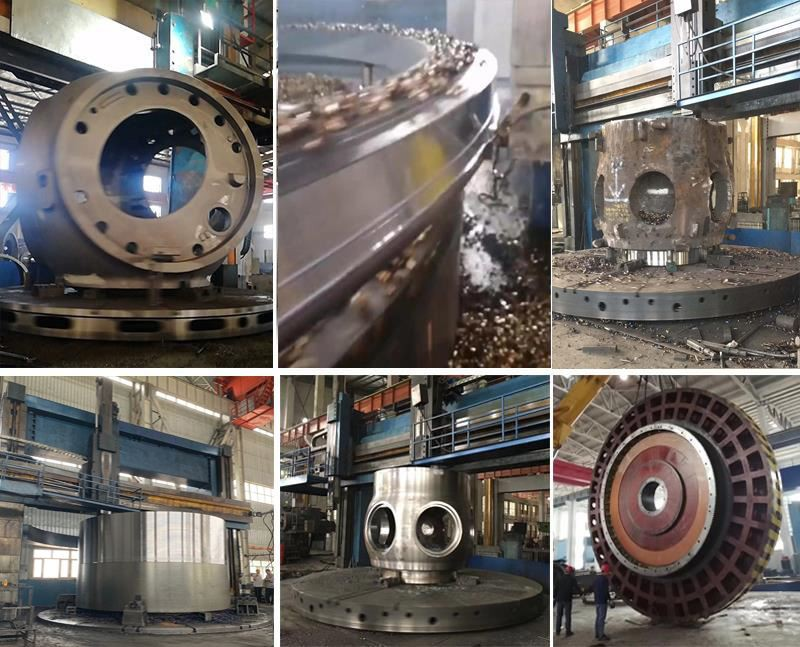

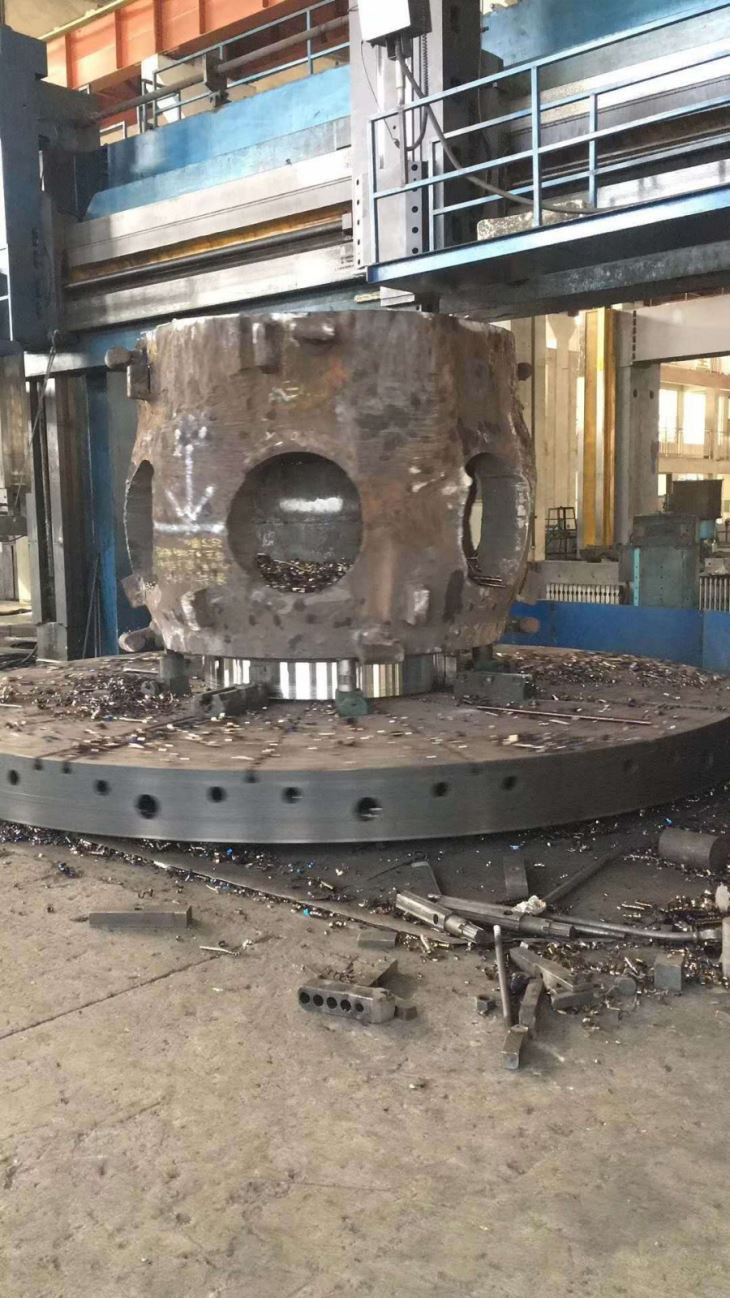

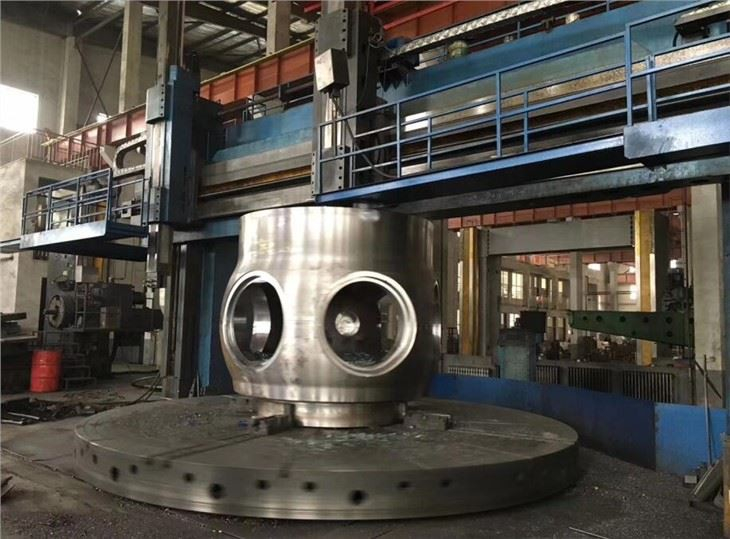

Work piece
