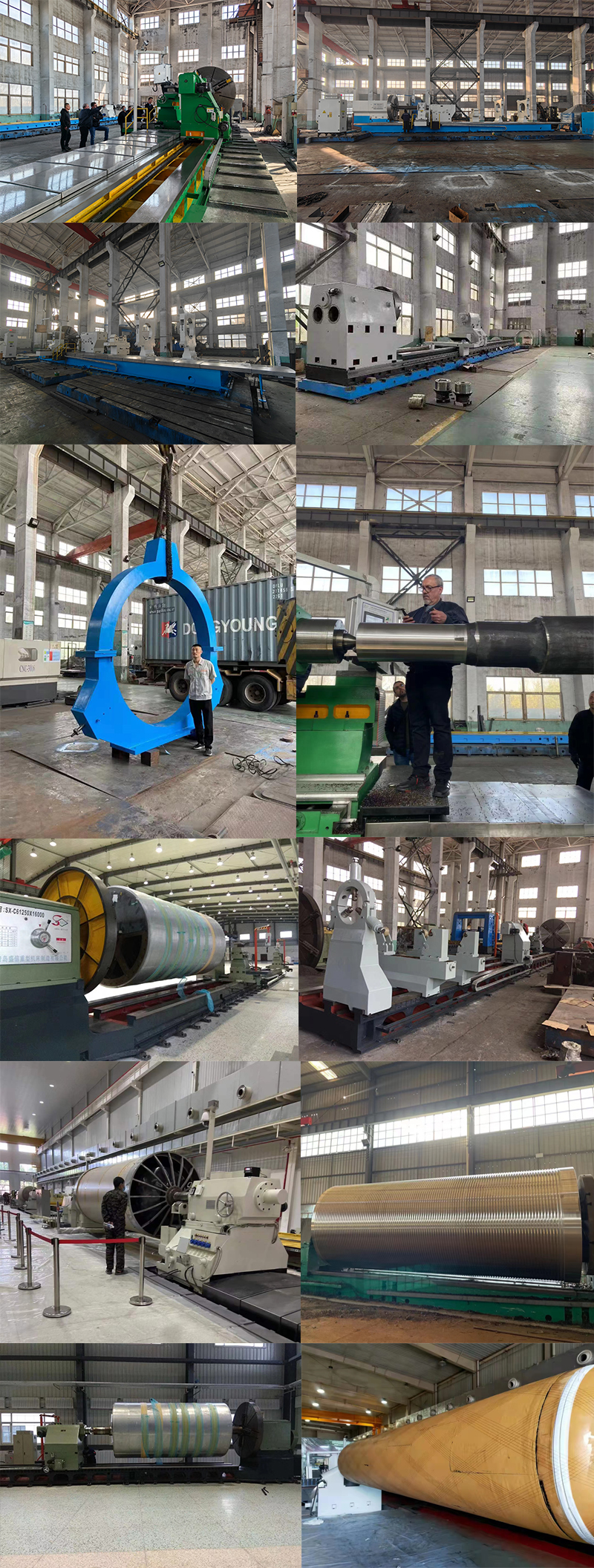

Feature of Heavy Duty CNC Metal Lathe
1. Heavy Duty CNC Metal Lathe is a lathe with semi-closed loop control function developed by the company according to the latest development trend of CNC lathe in the international market. The machine tool has a wide range of uses and flexible operation.
2. The bed is an integral box-shaped structure, using high-standard cast iron (HT300) one-time molding casting, after secondary aging treatment, good stability;
3. The gears are high-frequency hardened and precisely ground, with high precision, stable operation and low noise.
4. X-direction and Z-direction adopt precision ground ball screw pair to ensure high machining precision, positioning precision and precision retention.
5. The standard configuration is a four-station vertical tool post
6. The Heavy Duty CNC Metal Lathe not only has all its standard control functions and standard configurations, but also system selection functions and configurations for users to choose.
Specification of Heavy Duty CNC Metal Lathe
Parameter | Unit | CK61160 | CK61200 | CK61250 | CK61300 | CK61350 | CK61400 | CK61450 | CK61500 |
Swing over bed | mm | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | 5000 |
Swing over slide | mm | 1200 | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 |
Distance between center | m | 3-25 | 3-25 | 3-25 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 |
Guideway width | mm | 1100 | 1600 | 1700 | 2000 | 2450 | 3000 | 3000 | 3500 |
Spindle diameter | mm | 200-300 | 200-300 | 200-500 | 200-800 | 200-800 | 200-800 | 200-800 | 200-900 |
Tailstock quill diameter | mm | 150-300 | 150-300 | 200-500 | 200-800 | 200-800 | 200-800 | 200-800 | 200-900 |
Spindle speed | RPM | 2-150 | 2-150 | 2-150 | 2-80 | 2-80 | 2-80 | 20-80 | 2-60 |
Main motor power | kW | 15-45 | 15-45 | 30-75 | 30-75 | 45-90 | 75-110 | 75-110 | 90-132 |
Rapid speed | RPM | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
Tool turret | mm | 240*240 | 280*280 | 300*300 | 320*320 | 320*320 | 380*380 | 380*380 | 400*400 |
Loading weight | T | 5-20 | 10-30 | 10-30 | 30-80 | 30-100 | 30-120 | 30-150 | 50-200 |
