Feature of Crankshaft Automatic Balancing Correction Machine 1. Load and unload by manual 2. 15' touch screen 3. Advanced balance software 4. Automatic measuringdrilling correction and retesting 5. Workpieces can do two and more times removing weight and corrections 6. High precision soft...
| Quantity: | |
|---|---|

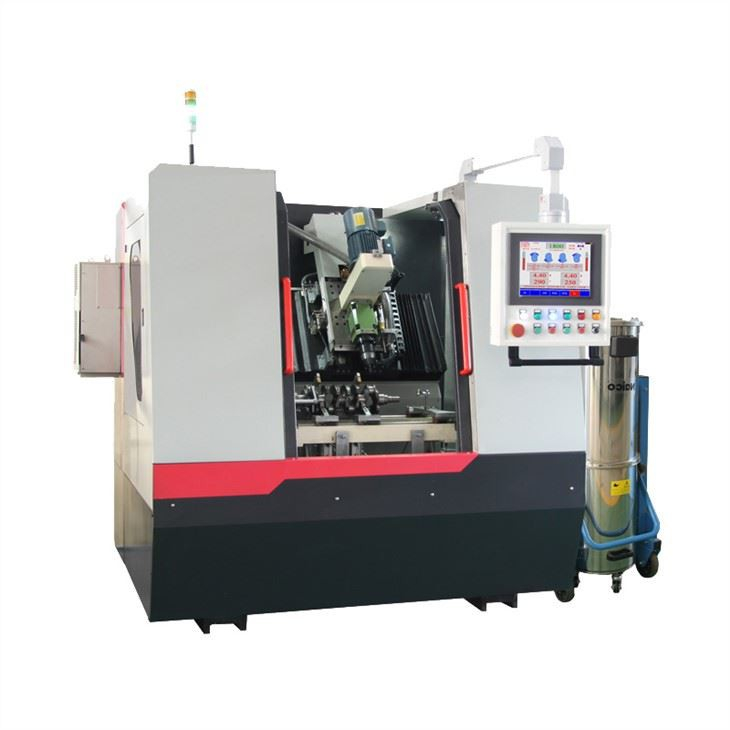

Feature of Crankshaft Automatic Balancing Correction Machine
1. Load and unload by manual
2. 15' touch screen
3. Advanced balance software
4. Automatic measuringdrilling correction and retesting
5. Workpieces can do two and more times removing weight and corrections
6. High precision soft bearing measuring system
7. Rigid machine tool structure design.with longer using time
8. The machine is widely used in four and six cylinder crankshaft balancing correction.
Parameter of Crankshaft Automatic Balancing Correction Machine
Balancing Unit Parameter | |
Max Mass of Workpiece(kg) | 30 |
Max Length of Workpiece (mm) | 600 (Four Cylinder)/800 (Six Cylinder) |
Max Diameter of Workpiece (mm) | 150 (Four Cylinder)/200 (Six Cylinder) |
The Distance Between Two Bearing Pedestals(mm) | 400 |
Journal Diameter on Roller Carriages(mm) | 35-60 |
Max Balancing Speed（r/min) | 1000 |
Motor Power（kw） | 1.5 |
Min Achievable Residual Unbalance Amount (g.mm/kg) | 5 |
Drilling Unit | |
Drilling Speed（r/min) | 1500 |
Cutting Spindle Motor Power(kw) | 0.75 |
Max Allowed Correct Times | 2 |
Machine Parameter | |
Machine Motor Power(kw) | 8 |
Machine Weight(ton) | 3.5 |
Dimensions(mm) | 2000*1800*2200 |
Pressure(Mpa) | 0.4-0.8 |
Takt Time(s) | 150-180 |

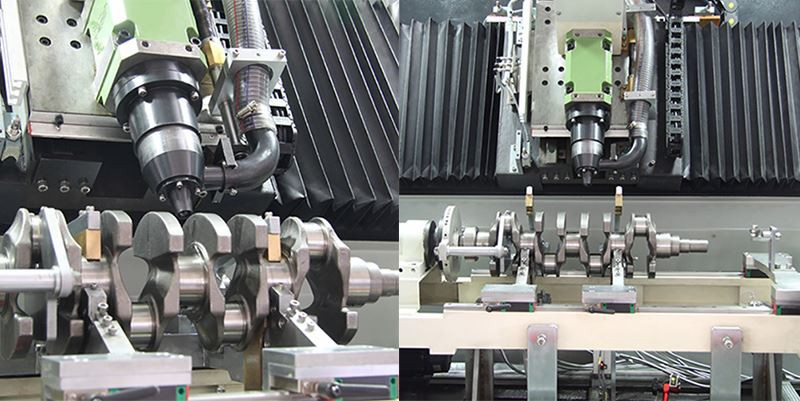

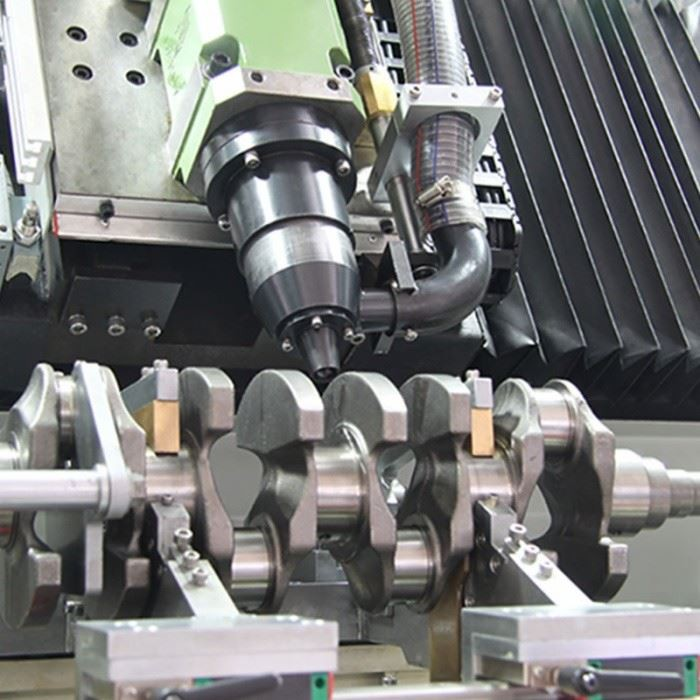

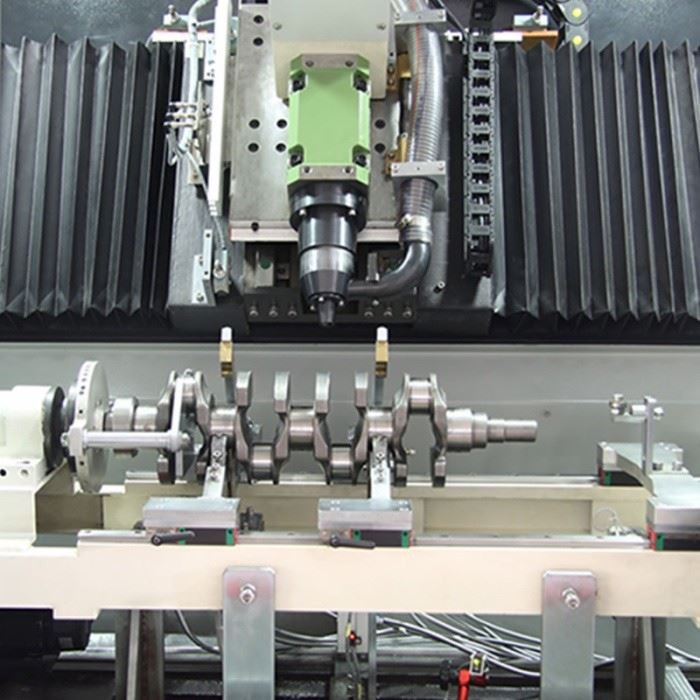

Application
Strict Product Quality Control
Approved Certificates:
