Customer: SIEMENS, ITT Machining diameter: 1250mm-3150mm Mchining height:1000mm-1400mm Parameter can be customized
| Quantity: | |
|---|---|
Introduction
CK51 series VTL CNC Vertical Turret Lathe is our company absorbing contemporary advanced design and manufacturing technology, adopting CAD optimization design method, implementing enterprise precision standards, equipped with domestic and foreign advanced functional components, and realizing strong cutting in structural performance.
It is a high-tech mechatronic product with heavy load, high dynamic and static rigidity of machine tool, safe and reliable movement, long service life and high processing efficiency.
Main purpose
This machine tool is a CNC single-column vertical lathe, which adopts a beam fixed structure and is suitable for batch processing of parts with a large variety of parts.
This machine tool is suitable for rough and finish machining of ferrous, non-ferrous and non-metallic parts with high-speed steel and cemented carbide tools, and can process inner and outer cylindrical surfaces, end surfaces, inner and outer conical surfaces, etc.
Feature of CK series VTL CNC Vertical Turret Lathe
1. Gearbox
Gear is made of 40 cr high quenching treatment, hardness reaches HRC40-45
2. Feed System
Feed system (X axis and Z axis) is driven by AC servo motor
3. Lathe Bed
The column is a thermally symmetrical structure enclosed by an integral cross-rib plate. The material is made of high-strength and low-stress cast iron, and effective vibration damping measures are adopted.
4. Beam
The machine tool adopts a fixed beam structure, and the beam part consists of a beam and a horizontal feed transmission mechanism for the tool rest.
5. Working Table
The base of the worktable is fixed on the foundation, the column is fixed on the base of the worktable, and the worktable and the base of the worktable are made of high-strength and low-stress cast iron. In order to reduce the influence of the thermal deformation of the worktable on the machining accuracy
6. Vertical Tool Post
The vertical tool rest is composed of a beam slide, a rotary slide and a ram. The vertical tool rest can move horizontally on the beam, and the ram can move vertically.
7. CNC System
The numerical control system is Siemens or FANUC, which can control the X axis and Z axis digitally and two axes linkage.
8. Hydraulic system
The hydraulic system mainly controls the balance system of the vertical tool rest. The hydraulic components of the hydraulic configuration are all selected domestic high-quality products or cooperative products, with reliable quality and stable long-term work.
9. Main transmission structure
The main drive is driven by high-power AC servo spindle motor, and the 9-unit V-shaped V-belt drives the main shaft of the worktable, so that the worktable can obtain the corresponding speed range for powerful cutting.
10. Operate
This lathe is equipped with a set of independent button station, and all operation keys of the machine tool are installed on the button station. In order to facilitate the operation of the operator, it is equipped with a set of handheld portable operation unit, which has the common operation keys of the tool rest, which can manually operate the required actions.
Advantage:
Our company adopts the international advanced resin sand casting process. The castings of CNC Vertical Lathe Machine are made of HT300 and HT250 and then tempered twice. The castings are tempered once before processing. The castings are subjected to secondary tempering after rough machining. The tempering is tempered to the greatest extent in the tempering kiln. Reduce the internal stress of the casting, and perform vibration aging before finishing to prevent the casting from deforming, thereby improving the accuracy of the machine tool.
Products Specification
The vertical lathe can be equipped with C axis for milling and boring function.
| Name | Unit | CK5112 | CK5116 | CK5123 | CK5125 | CK5131 |
| Max. turning diameter of vertical tool post | mm | 1250 | 1600 | 2300 | 2500 | 3150 |
| Working table diameter | mm | 1000 | 1400 | 2000 | 2200 | 2500 |
| Max. height of work-piece | mm | 1000 | 1000 | 1250 | 1300 | 1400 |
| Max. weight of work-piece | t | 3 | 5 | 8 | 10 | 10 |
| Working table range of rotation speed | r/min | 6.3～200 | 5～160 | 3.2～100 | 2～62 | 2～62 |
| Working table step of rotation speed | step | stepless | stepless | stepless | stepless | stepless |
| Max. cutting force of vertical tool post | KN | 20 | 25 | 25 | 25 | 34 |
| Horizontal travel of vertical tool post | mm | 700 | 915 | 1210 | 1310 | 1610 |
| Vertical travel of vertical tool post | mm | 650 | 800/1000 | 800/1000 | 800/1000 | 800/1000 |
| Tool bar section size | mm | 30×40 | 30×40 | 30×40 | 30×40 | 40×50 |
| Power of main motor | KW | 22 | 30 | 30 | 37 | 45 |
| Weight of machine(approx.) | t | 9 | 12.1 | 19.8 | 21.8 | 30 |
| Dimensions of machine (LxWxH) | mm | 2280×2550×3400 | 2662×2800×3550 | 3235×3240×3910 | 3380×3360×4000 | 3450×3940×4200 |

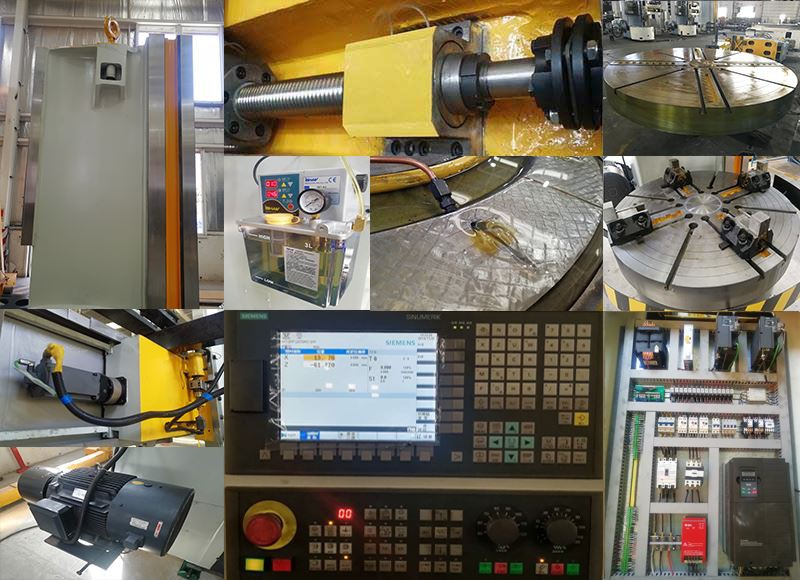

Production details

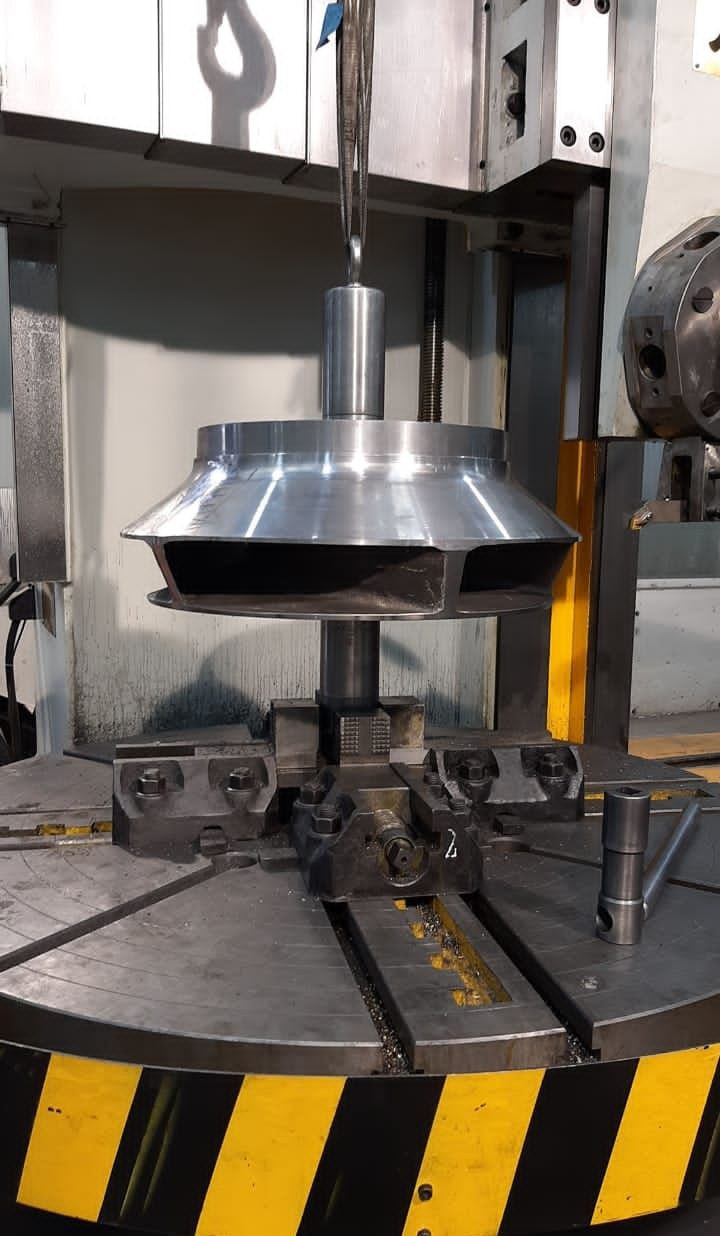

Work piece
Customers of vertical customers
Serious and professional testing
Package and Shipping
