Original ZJ Brand Thousands of Radial Drilling Machine was sold per year The Radial Drilling Machines has history of 70 years.. Model NO. Z3040x12, Z3040x16,Z3050x12,Z3050x16,Z3063x20,Z3080x25,Z30100x31,Z30125x40
| Quantity: | |
|---|---|

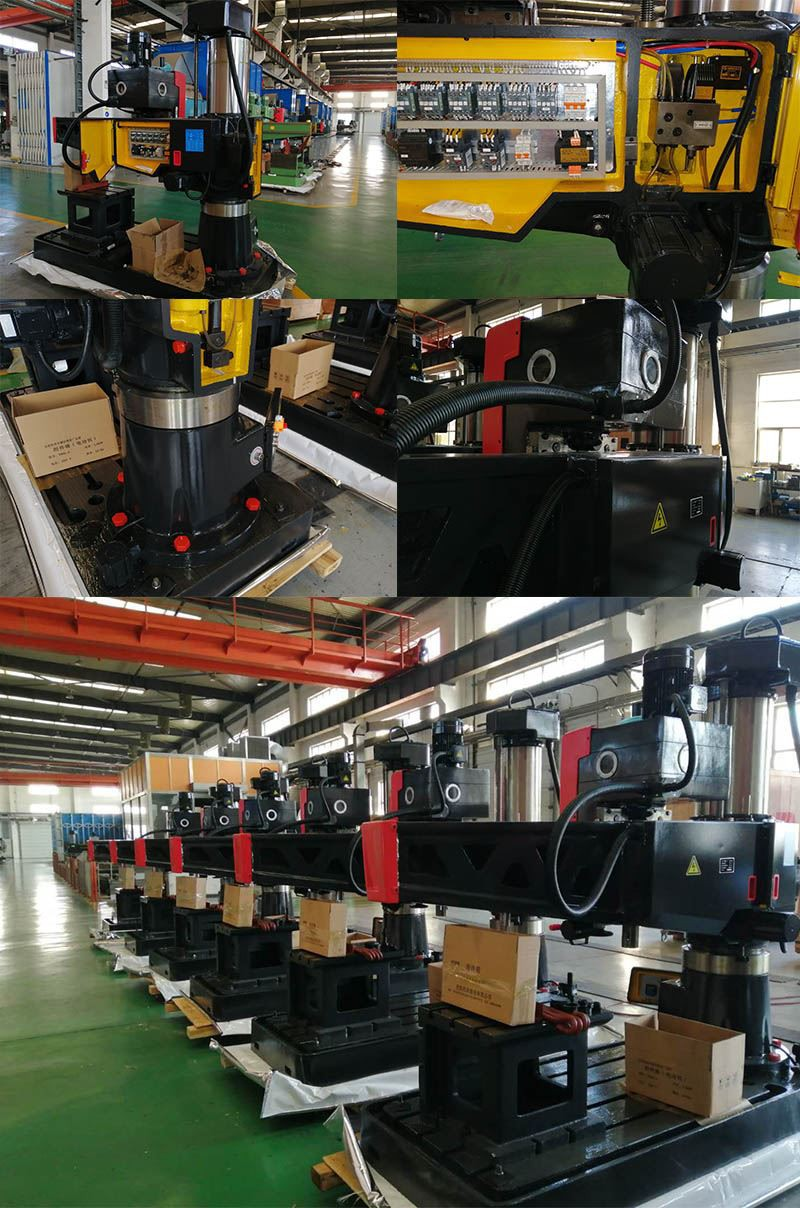

Introduction of Starfish Radial Drilling Machine---Original ZJ Brand
Zhongjie Radial Drilling Mahine is a mechanical, motor-driven device that is used to create a hole or to enlarge an existing hole in a solid material. A drill machine is fitted with an end-cutting tool that is rotated with high power which holds the capability of "drilling" a whole into the material. Drill machines are used in simple applications such as drilling a hole into the materials whereas it is used for metalworking in the industrial sector.
Benefit:
1. High preicision drilling holes.
2. Increasing working efficiency
3. 7x24 hour on line service
Data of Zhongjie Radial Drilling Mahine
Model | Unit | Z3040x12/1 | Z3040x16/1 | Z3050x12/1 | Z3050x16/1 | Z3063x20/1 | |
Max. Drilling diameter | mm | 40 | 40 | 50 | 50 | 63 | |

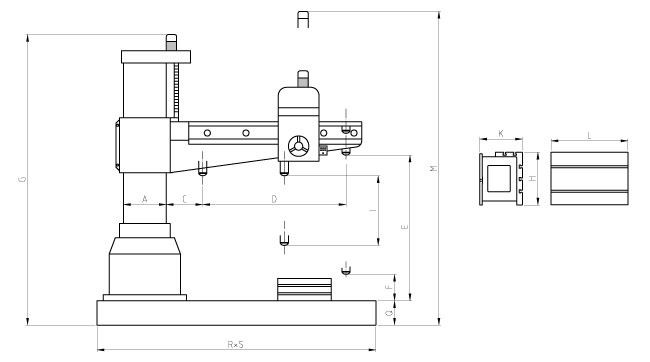

Distance between spindle axis and column | Max. | mm | 1250 | 1600 | 1250 | 1600 | 2000 |
Min. | mm | 350 | 350 | 350 | 350 | 450 | |
Distance between spindle nose and working surface of machine base | Max. | mm | 1250 | 1250 | 1220 | 1220 | 1600 |
Min. | mm | 350 | 350 | 320 | 320 | 400 | |
Spindle Travel | mm | 315 | 315 | 315 | 315 | 400 | |
Spindle taper | - | Morse 4# | Morse 4# | Morse 5# | Morse 5# | Morse 5# | |
Speed range of spindle | m/min | 25-2000 | 25-2000 | 25-2000 | 25-2000 | 20-1600 | |
Steps of spindle speed | step | 16 | 16 | 16 | 16 | 16 | |
Feed range of spindle | mm | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | |
Steps of spindle feed | step | 16 | 16 | 16 | 16 | 16 | |
Worktable dimension | mm | 630x500x500 | 630x500x500 | 630x500x500 | 630x500x500 | 800x630x500 | |
Max.torque of spindle | Nm | 400 | 400 | 500 | 500 | 980 | |
Lifting distance of swing arm | mm | 580 | 580 | 580 | 580 | 800 | |
Machine weight | kg | 3000 | 3500 | 3000 | 3500 | 7000 | |
Size(LxWxH) | mm | 2150x1070x2840 | 2500x1070x2840 | 2500x1070x2840 | 2500x1070x2840 | 3080x1250x3205 |
Value
Integrity: It comes from a sense of honor and is based on respect for oneself and others. Lead people to act with integrity.
Unity: This is one of the outstanding human values, oriented to the mutual cooperation between people, especially when encountering difficulties.
Responsibility: Be aware that what we do or stop doing may have some consequences for others or ourselves.
Punctuality: To give our personality with character, order and efficiency, to help us do our work better and be trustworthy.
Communication: It helps us to effectively exchange thoughts, thoughts and feelings with people around us in a cordial atmosphere.
Teamwork: We add up, we all need each other, we are the protagonists of the same project and the same story, we pursue a common goal.
Integrity: Whether you treat others or yourself, always act in accordance with the values of justice, honesty, truth and justice.
Why Choose Us
1.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
2.Customers
We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha, CRRC, Bombardier ....
3.The Steady Technology
What we own is the steady technology to manufacture machine tools, which guarantee steady and have longer work life.
4.Strictly Quality Detection
Our machine tools’quality and accuracy is strictly guaranteed by CMM, Dial indicator etc. and our experienced workers.
5. Our poeple
Our people are professional, kind and hardworking to our customers.
