---Original ZJ Brand Thousands of Radial Drilling Machine was sold per year Model NO. Z3040x12, Z3040x16,Z3050x12,Z3050x16,Z3063x20,Z3080x25,Z30100x31,Z30125x40
| Quantity: | |
|---|---|
Introduction of Z3080x25 Radial Drilling Machine---ZJ brand source
The radical drilling machine is suitable for high-speed steel, hard alloy and ceramic cutting tool,
machining inner and outer cylindrical surface, inner and outer conical surface, groove and plane of
ferrous metals, nonferrous metals and some non-metallic parts. It can meet different quantity
production requirements with high efficiency, stable and reliable precision.
Optimum design conforming to international standard.
Benefit:
1. High preicision drilling holes.
2. Increasing working efficiency
3. 7x24 hour on line service

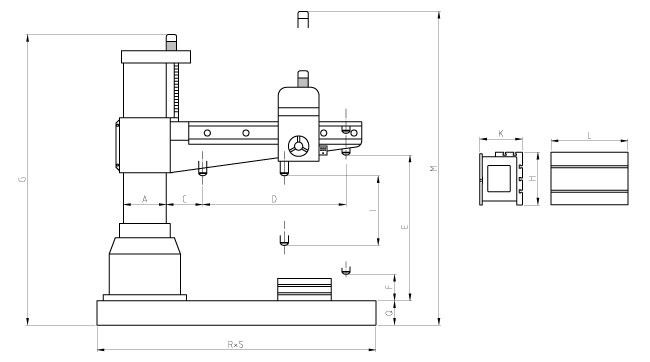

Parameter of Radial arm drilling machine
Parameter of Z3080x25 Radial drill machine
Model | Unit | Z3080x25 | |
Max. Drilling diameter | mm | 80 | |
Distance between spindle axis and column | Max. | mm | 2500 |
Min. | mm | 500 | |
Distance between spindle nose and working surface of machine base | Max. | mm | 2000 |
Min. | mm | 550 | |
Spindle Travel | mm | 450 | |
Spindle taper | - | Morse 6# | |
Speed range of spindle | m/min | 16-1250 | |
Steps of spindle speed | step | 16 | |
Feed range of spindle | mm | 0.04-3.2 | |
Steps of spindle feed | step | 16 | |
Worktable dimension | mm | 1000x800x560 | |
Max.torque of spindle | Nm | 1568 | |
Lifting distance of swing arm | mm | 1000 | |
Machine weight | kg | 11000 | |
Size(LxWxH) | mm | 3730x1400x3795 |
Precision
S/N | Item | Tolerance |
1 | Flatness of the working surface of the base | At 1000 measuring length: 0.10 flat or concave |
2 | Parallelism of the headstock movement to the working surface of the base | The measurement length at any 1000 is: 0.30 |
3 | Parallelism of the rocker arm movement to the working surface of the base | Measuring length at any 300: 0.05 |
4 | 1. Radial runout of the axis of the spindle taper hole: | 1：0.02 2：0.04 |
5 | 1. Close to the end face of the spindle | 0.20/1000* *Indicator probe measuring contact distance |
6 | 2. 300 points away from the end face of the spindle | A 0.10/300 B 0.05/300 |
7 | The perpendicularity of the spindle axis to the working surface of the base | A0.06 B0.10 |
8 | The verticality of the working surface of the spindle vertical movement base | Load value (feed resistance) 15200Na.b3/1000 The distance between the two contacts of the indicator |

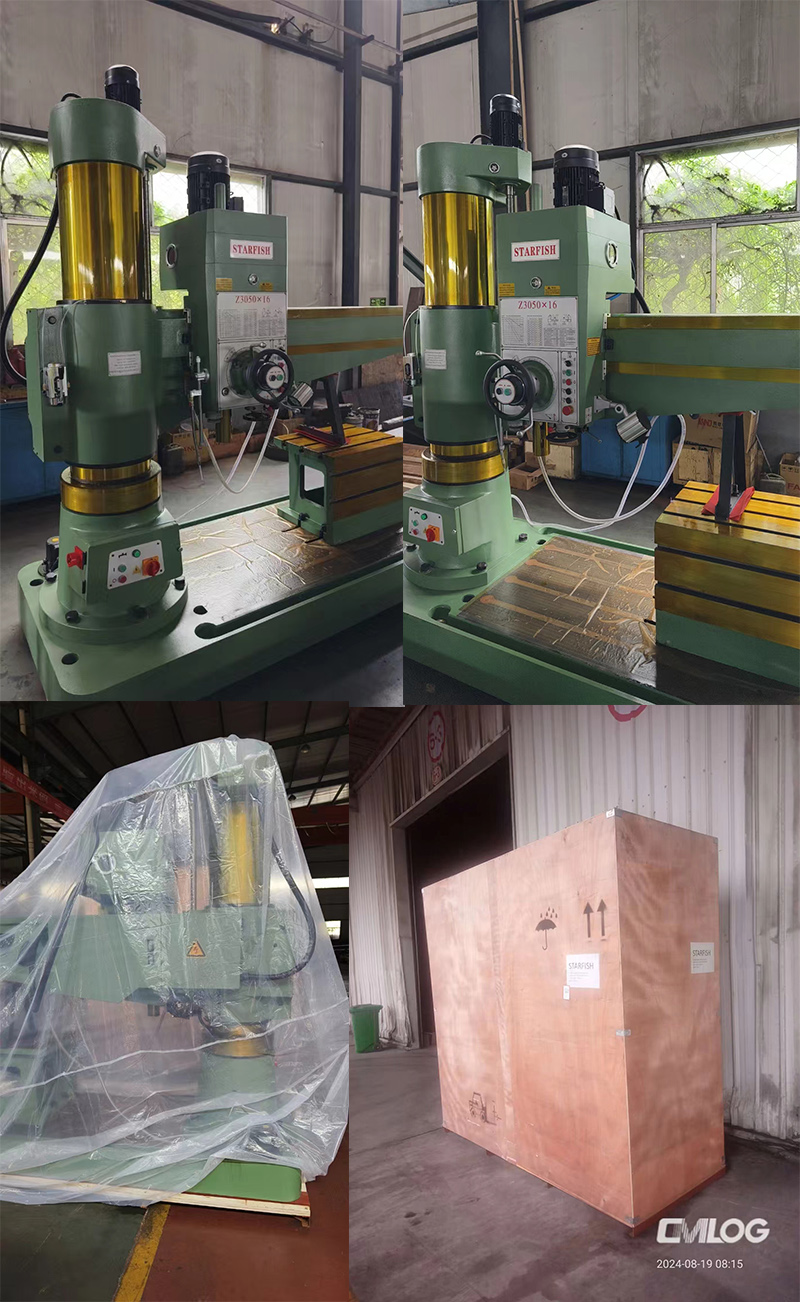

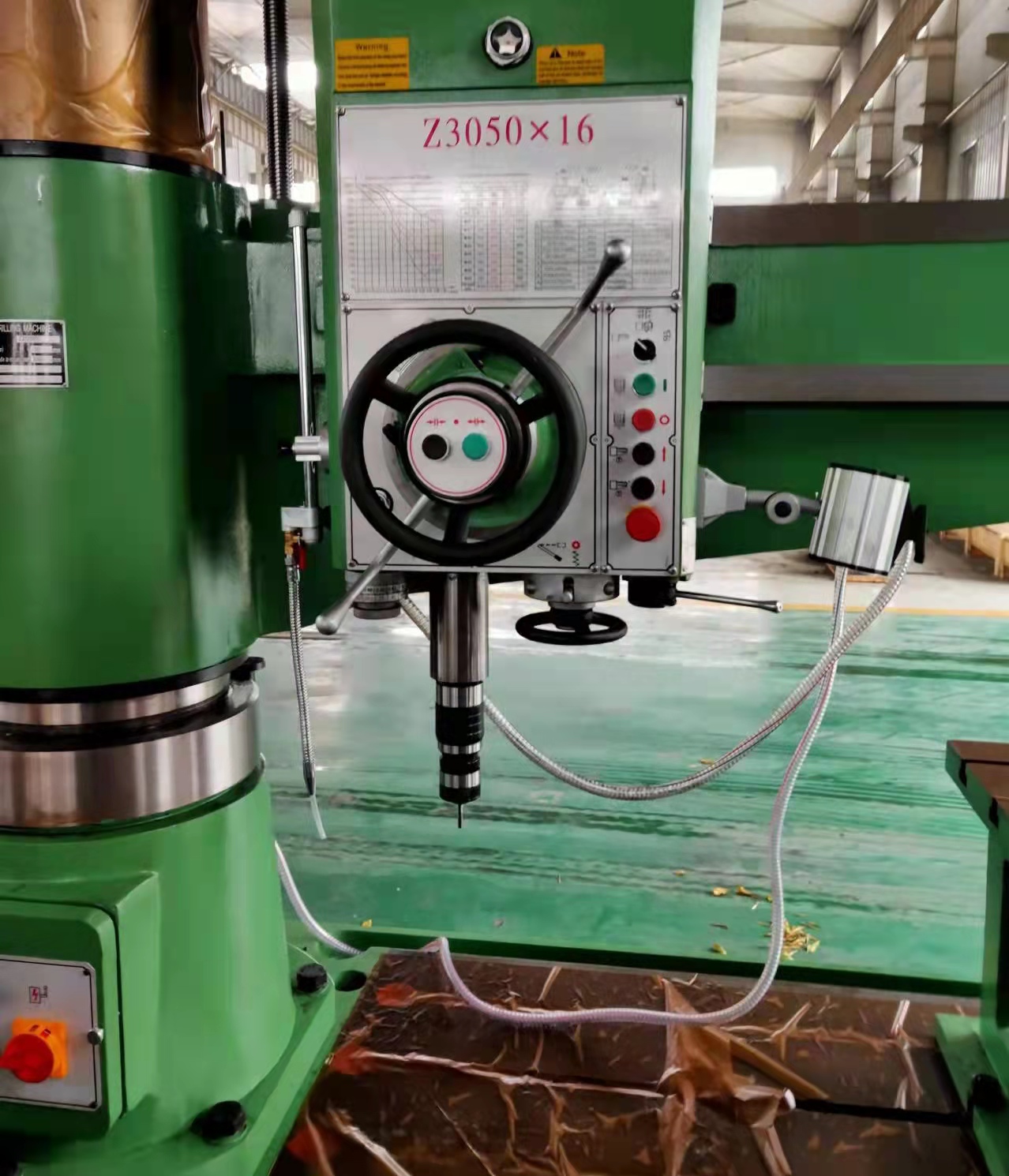

Details of radial arm drilling machine
