---Original ZJ Brand Thousands of Radial Drilling Machine was sold per year The Radial Drilling Machines has history of 70 years.. Model NO. Z3040x12, Z3040x16,Z3050x12,Z3050x16,Z3063x20,Z3080x25,Z30100x31,Z30125x40
| Quantity: | |
|---|---|

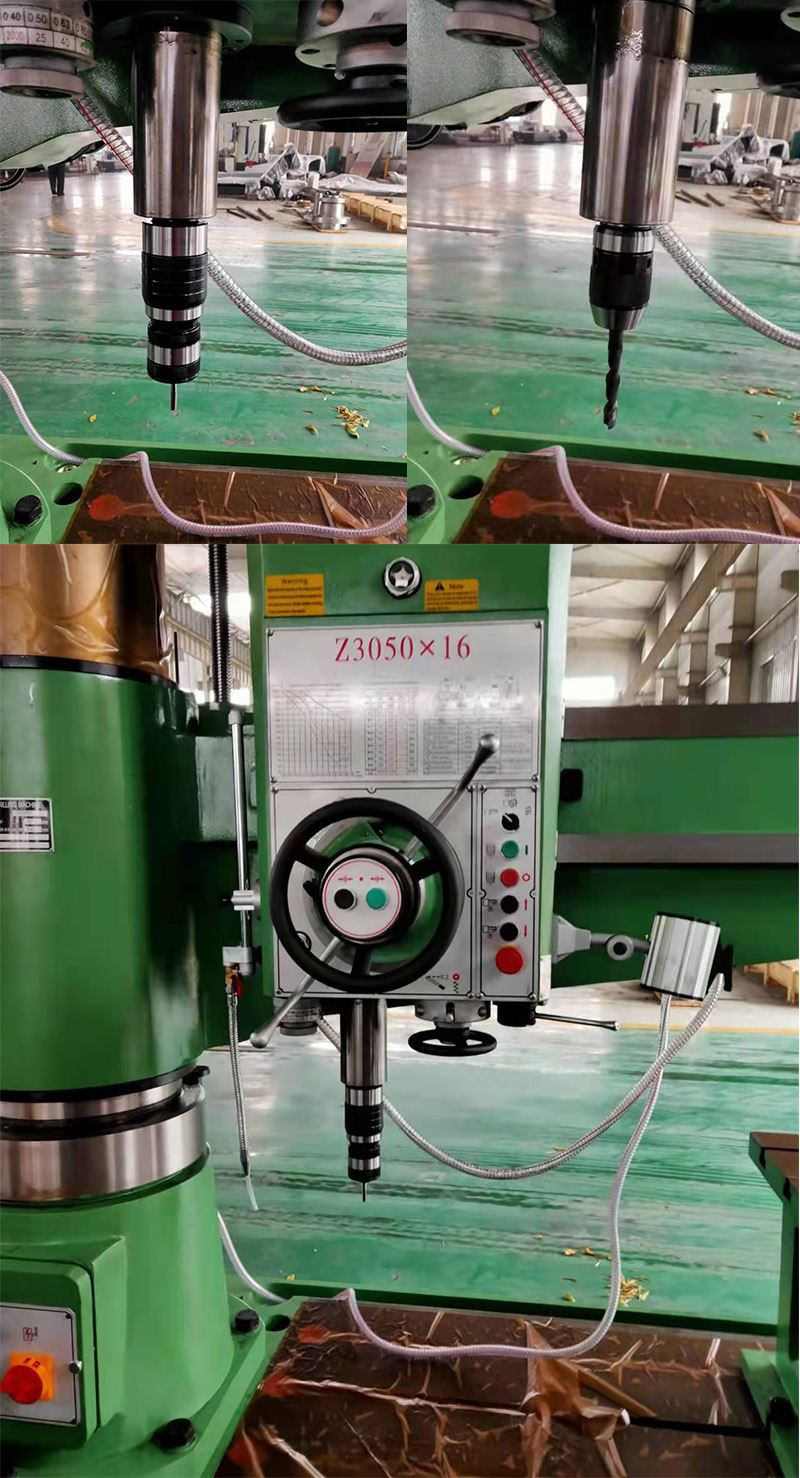

The main features of Radial Arm Drills---Original ZJ Brand
1. Hydraulic preselected variable speed structure can save auxiliary time.
2. Spindle positive and negative rotation, stop machining (braking), speed change, neutral with a handle operation, easy to use.
2. All control handles are centrally located in convenient locations and are light to handle.
3. The guide rail on the rocker arm, the spindle sleeve and the matching surface of the internal and external column rotating rollers have been quenched, which can prolong the service life of the machine.
4. There are perfect safety protection devices, such as rocker arm lifting has safety nut and mechanical electrical two sets of limit insurance mechanism, spindle limited insurance, into the ball safety clutch, outer column has dust ring, power grounding and so on, can ensure the safety of machine work.
Benefit:
1. High preicision drilling holes.
2. Increasing working efficiency
3. 7x24 hour on line service

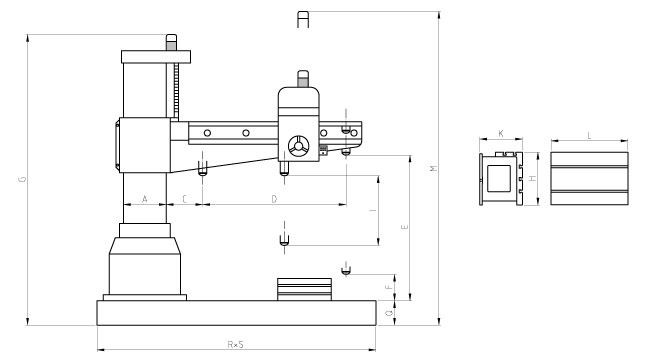

Parameter of Radial Arm Drills
Item | Unit | Z3040x16/1 | Z3050x16/1 | Z3063x20/1 | Z3080x25 | Z30100x31 | |
Maximum drilling diameter | mm | 40 | 50 | 63 | 80 | 100 | |
Spindle center line to column bus distance | max | mm | 1600 | 1600 | 2000 | 2500 | 3150 |
min | mm | 350 | 350 | 450 | 500 | 570 | |
Spindle nose to base working space | max | mm | 1250 | 1220 | 1600 | 2000 | 2500 |
min | mm | 350 | 320 | 400 | 550 | 750 | |
Spindle travel | mm | 315 | 315 | 400 | 450 | 500 | |
Spindle taper | Morse 4# | Morse 5# | Morse 5# | Morse 6# | Morse 6# | ||
Spindle speed range | r/min | 25-2000 | 25-2000 | 25-1600 | 16-1250 | 8-1000 | |
Spindle speed | level | 16 | 16 | 16 | 16 | 22 | |
Spindle feed range | mm/r | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.06-3.2 | |
Spindle feed level | level | 16 | 16 | 16 | 16 | 16 | |
Worktable size | mm | 630*500*500 | 630*500*500 | 800*630*500 | 1000*800*560 | 1250*800*630 | |
Horizontal movement of headstock arm | mm | 1250 | 1250 | 1550 | 2000 | 2580 | |
Spindle allows maximum torque | N.M | 400 | 500 | 980 | 1568 | 2450 | |
Main motor power | kW | 3 | 4 | 5.5 | 7.5 | 15 | |
Rocker arm lifting distance | mm | 580 | 580 | 800 | 1000 | 1250 | |
Machine weight | Kg | 3500 | 3500 | 7000 | 11000 | 20000 | |
Machine size | mm | 2500*1070*2840 | 2500*1070*2840 | 3080*1250*3205 | 3730*1400*3795 | ||
Value
Integrity: It comes from a sense of honor and is based on respect for oneself and others. Lead people to act with integrity.
Unity: This is one of the outstanding human values, oriented to the mutual cooperation between people, especially when encountering difficulties.
Responsibility: Be aware that what we do or stop doing may have some consequences for others or ourselves.
Punctuality: To give our personality with character, order and efficiency, to help us do our work better and be trustworthy.
Communication: It helps us to effectively exchange thoughts, thoughts and feelings with people around us in a cordial atmosphere.
Teamwork: We add up, we all need each other, we are the protagonists of the same project and the same story, we pursue a common goal.
Integrity: Whether you treat others or yourself, always act in accordance with the values of justice, honesty, truth and justice.
Why Choose Us
1.Best component
Almost all components of machine tools come from Germany, Japan, America and well-know China manufacturer.
2.Customers
We have reference customer in over 40 nations, Such as Siemens, ITT, Hanwha, CRRC, Bombardier ....
3.The Steady Technology
What we own is the steady technology to manufacture machine tools, which guarantee steady and have longer work life.
4.Strictly Quality Detection
Our machine tools’quality and accuracy is strictly guaranteed by CMM, Dial indicator etc. and our experienced workers.
