Radial Drilling Machine

Application---Original ZJ Brand

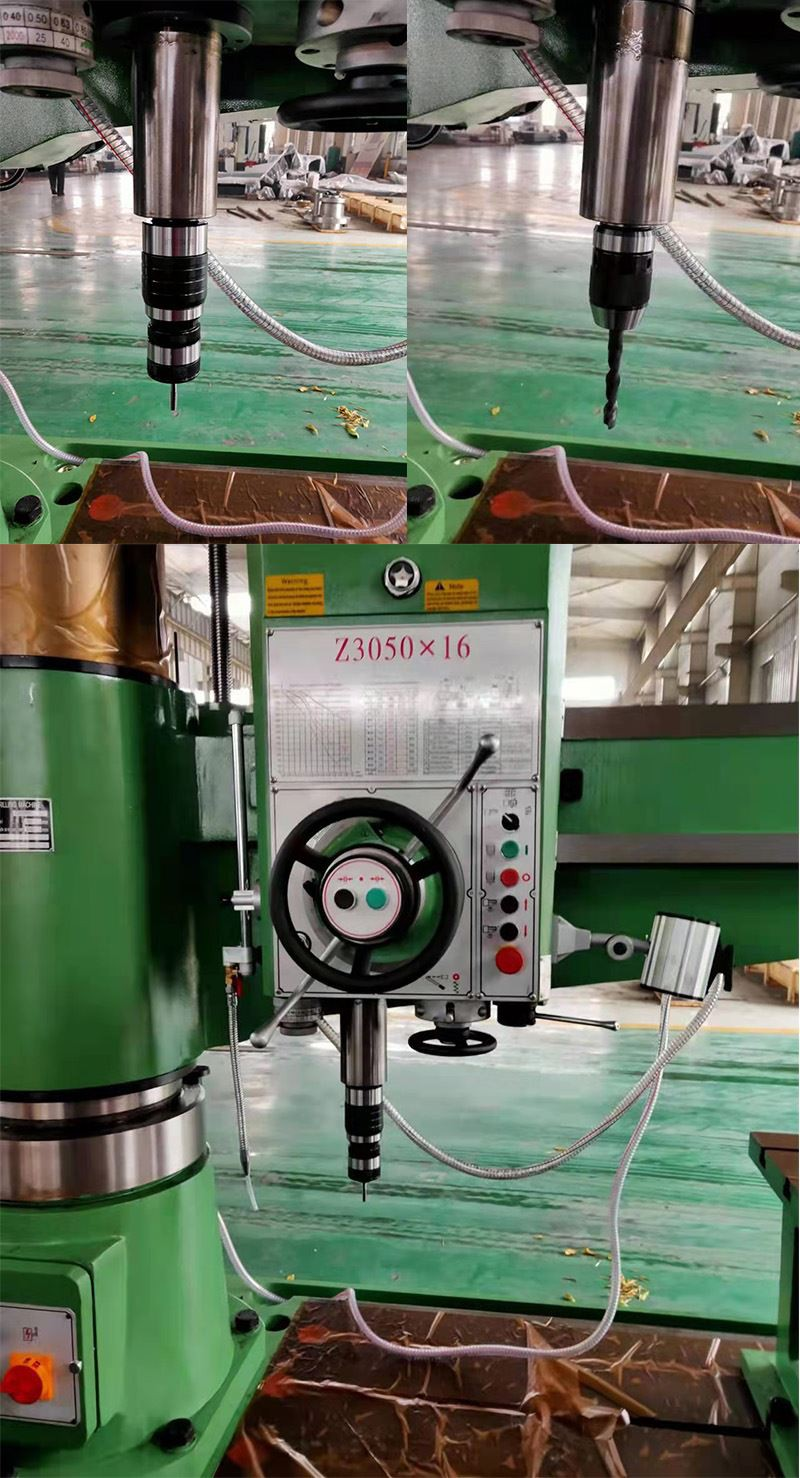

Radial drilling machine is mainly composed of base, inner column, outer column, rocker arm, spindle box and worktable. The inner column is fixed at one end of the base, and the outer column is sheathed outside, and the outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve, which is set to move up and down the outer column. Because the screw and the outer pillar are connected together, and the lifting nut is fixed on the rocker arm, the rocker arm cannot rotate around the outer column, and can only be rotated with the outer column. The spindle box is a compound part, which is composed of main drive motor, spindle and spindle transmission mechanism, feed and speed changing mechanism, and operation mechanism of machine tool. The spindle box is mounted on the horizontal guide rail of the rocker arm and can be operated by the Handwheel to move along the rocker arm in the horizontal guide rail.

Motion Form:

When processing, by the special tightening device will be fastened to the spindle box on the rocker arm guide, the outside column fastening inside the column, the rocker arm fastening on the outer column, and then drilling processing.

When drilling, the bit is rotated and the side is vertically advanced, the movement is as follows:

(1) The main movement of the radial drilling machine is the rotational motion of the spindle

(2) The longitudinal feed motion of the spindle

(3) auxiliary movement is: The rocker arm moves vertically along the outer column, and the spindle box moves along the direction of the rocker arm length, The rotary motion of the rocker arm and the outer column around the inner column.

Main Feature

1. The use of hydraulic preselection transmission mechanism can save the auxiliary time.

2. Spindle positive and negative turn, parking (braking), variable speed, empty files and other movements, with a handle control, light manipulation.

3. Spindle box, rocker arm, inside and outside the cylinder using the hydraulic driven diamond-shaped block clamping mechanism, clamping reliable.

4. Rocker-Arm guide, outer cylindrical surface, spindle, spindle sleeve and inner and outer column Rotary Raceway are all quenched, which can keep the stability of machine tool precision for a long time and prolong the service life.

5. Have perfect safety protection device and outer pillar protection.

6. In the structural design and in the manufacturing process, also took a series of effective measures to make the precision of the machine tool durability and the life of the whole machine is a large extension.

Benefit:

1. High preicision drilling holes.

2. Increasing working efficiency

3. 7x24 hour on line service

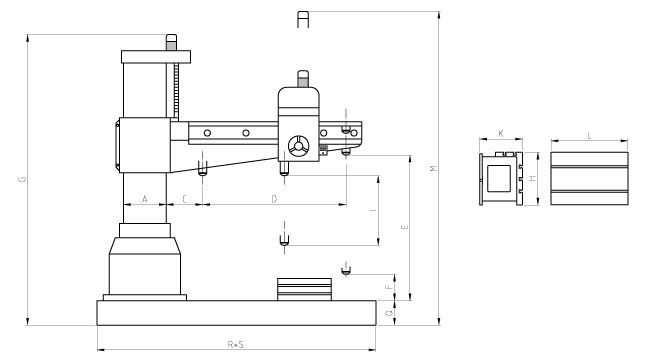

Parameter of Radial Drilling Machine
