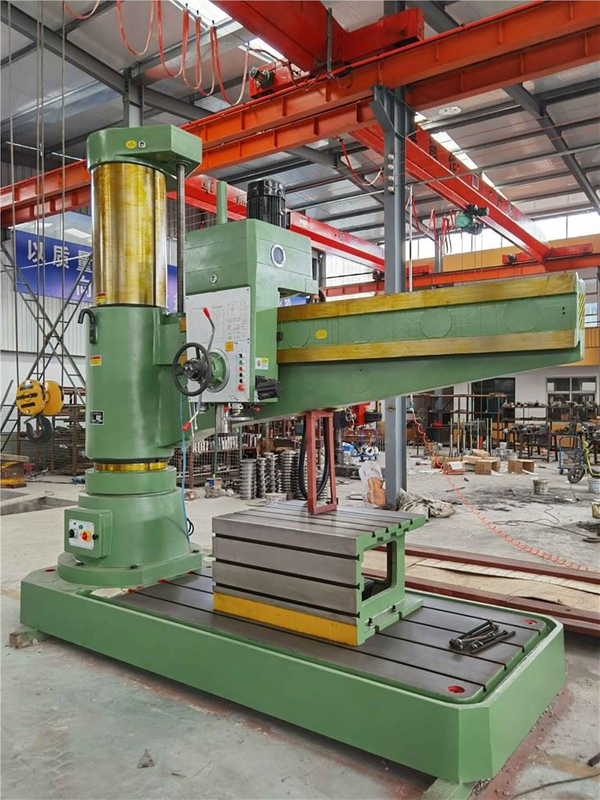

Radial Drilling Machine Z3080x25

Model NO. Z3040x12, Z3040x16,Z3050x12,Z3050x16,Z3063x20,Z3080x25,Z30100x31,Z30125x40

Quantity:
Availability:





Inquire Add to Basket

Product Description

Introduction of Radial Drilling Machine Z3080x25

1. Appearance beautiful appearance, the overall layout of symmetry and coordination.

2. Adopt mechanical drive, mechanical clamping, mechanical speed change operation is simple.
3. Guide rail after ultra high frequency quenching.
4. Reliable structure, excellent manufacturing, to ensure the accuracy of the machine tool.

5. To increase the machining range of drilling, boring, tapping, threading, countersink flat, drilling, reaming and reaming functions, such as, widely used in large, medium and small enterprises, villages and towns and individual industrial machining.

Benefit:

1. High preicision drilling holes.

2. Increasing working efficiency

3. 7x24 hour on line service

Radial Drilling Machine Z3080x25

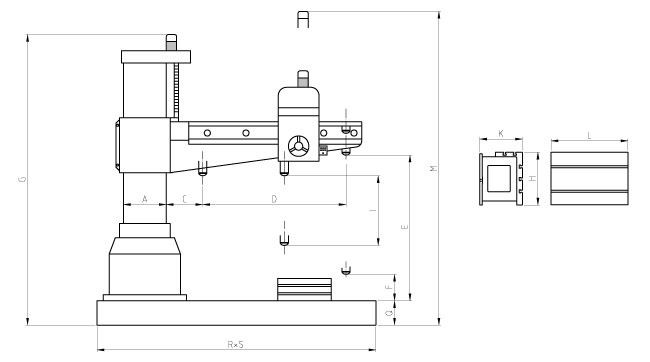

Model		Unit	Z3080x25
Max. Drilling diameter		mm	80
Distance between spindle axis and column	Max.	mm	2500
	Min.	mm	500
Distance between spindle nose and working surface of machine base	Max.	mm	2000
	Min.	mm	550
Spindle Travel		mm	450
Spindle taper		-	Morse 6#
Speed range of spindle		m/min	16-1250
Steps of spindle speed		step	16
Feed range of spindle		mm	0.04-3.2
Steps of spindle feed		step	16
Worktable dimension		mm	1000x800x560
Max.torque of spindle		Nm	1568
Lifting distance of swing arm		mm	1000
Machine weight		kg	11000
Size(LxWxH)		mm	3730x1400x3795
