Original ZJ Brand---Model NO.:Z3040x12, Z3040x16,Z3050x12,Z3050x16,Z3063x20,Z3080x25,Z30100x31,Z30125x40
| Quantity: | |
|---|---|

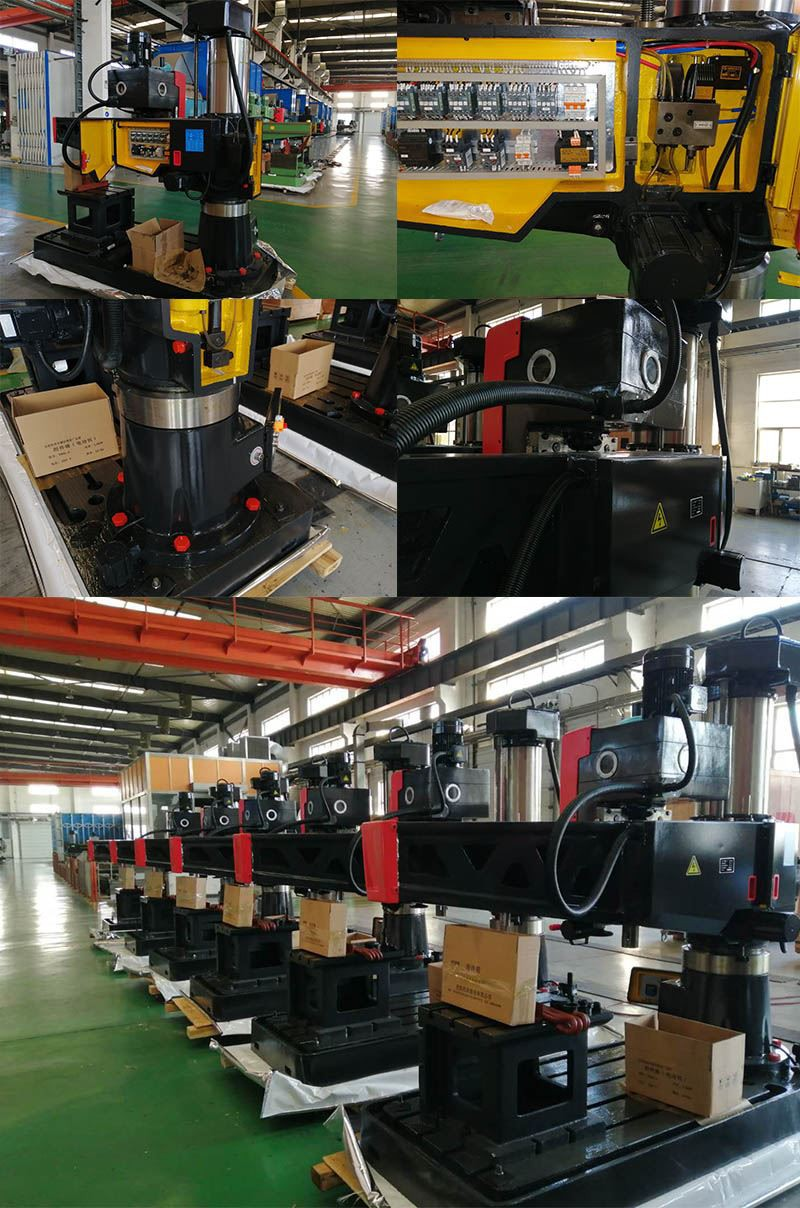

The main features of Radial Drill---Original ZJ Brand
1. All control handles are centrally located in convenient locations and are light to handle.
2. Spindle box horizontal movement, with a fast moving mechanism. Headstock movement and rocker arm rotation light, flexible.
3. There are perfect safety protection devices, such as rocker arm lifting has safety nut and mechanical electrical two sets of limit insurance mechanism, spindle limited insurance, into the ball safety clutch, outer column has dust ring, power grounding and so on, can ensure the safety of machine work.
4. Internal spindle box, rocker arm and column are all automatically lubricated.
5. Adopts mechanic switch with forward/ reverse functions and longer service life with low damage. The arm is made of high-class cast-iron.
6. Arm slide is under strick heat-treatment and grinding.
7. The main spindle is balanced by special spring.
8. And is more durable than all traditional balance mechanism. The over-load protective devices can secure the operator against injury.

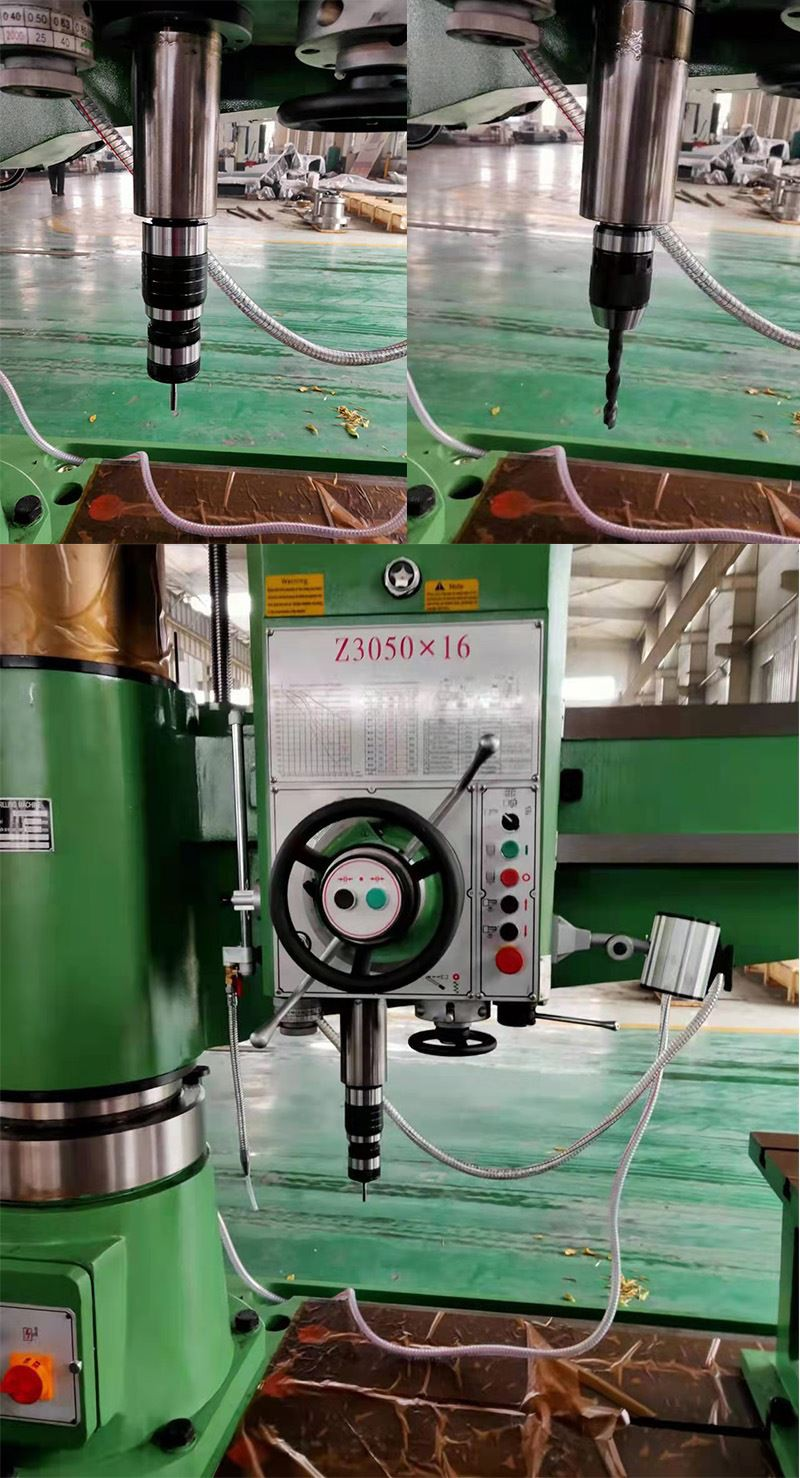

9. Extra auxiliary dial for spindle feed depth indication.
10. With this indicator, we can review the momental feed depth of spindle 1 through 210mm at any moment.
Benefit:
1. High preicision drilling holes.
2. Increasing working efficiency
3. 7x24 hour on line service
Feature of Radial Arm Drill
Item | Unit | Z3040x16/1 | Z3050x16/1 | Z3063x20/1 | Z3080x25 | Z30100x31 | |
Maximum drilling diameter | mm | 40 | 50 | 63 | 80 | 100 | |
Spindle center line to column bus distance | max | mm | 1600 | 1600 | 2000 | 2500 | 3150 |
min | mm | 350 | 350 | 450 | 500 | 570 | |
Spindle nose to base working space | max | mm | 1250 | 1220 | 1600 | 2000 | 2500 |
min | mm | 350 | 320 | 400 | 550 | 750 | |
Spindle travel | mm | 315 | 315 | 400 | 450 | 500 | |
Spindle taper | Mohs4 | Mohs5 | Mohs5 | Mohs6 | Mohs6 | ||
Spindle speed range | r/min | 25-2000 | 25-2000 | 25-1600 | 16-1250 | 8-1000 | |
Spindle speed | level | 16 | 16 | 16 | 16 | 22 | |
Spindle feed range | mm/r | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 | 0.06-3.2 | |
Spindle feed level | level | 16 | 16 | 16 | 16 | 16 | |
Worktable size | mm | 630*500*500 | 630*500*500 | 800*630*500 | 1000*800*560 | 1250*800*630 | |
Horizontal movement of headstock arm | mm | 1250 | 1250 | 1550 | 2000 | 2580 | |
Spindle allows maximum torque | N.M | 400 | 500 | 980 | 1568 | 2450 | |
Main motor power | kW | 3 | 4 | 5.5 | 7.5 | 15 | |
Rocker arm lifting distance | mm | 580 | 580 | 800 | 1000 | 1250 | |
Machine weight | Kg | 3500 | 3500 | 7000 | 11000 | 20000 | |

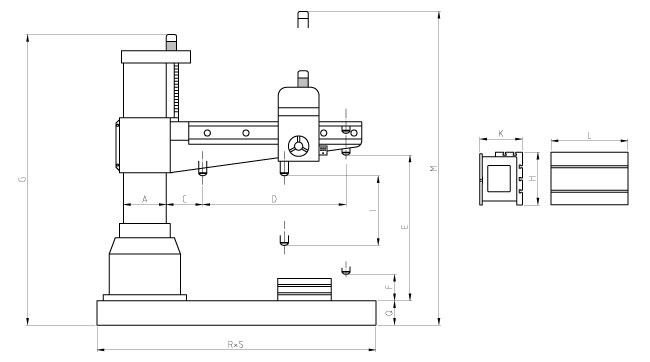

Machine size | mm | 2500*1070*2840 | 2500*1070*2840 | 3080*1250*3205 | 3730*1400*3795 | ||
Benefit:
Our factory inspector will check it very seriously before package, we go through 3-time check before delivery.
We will painting anti-rust oil before which will suitable for long time shipment on the sea.

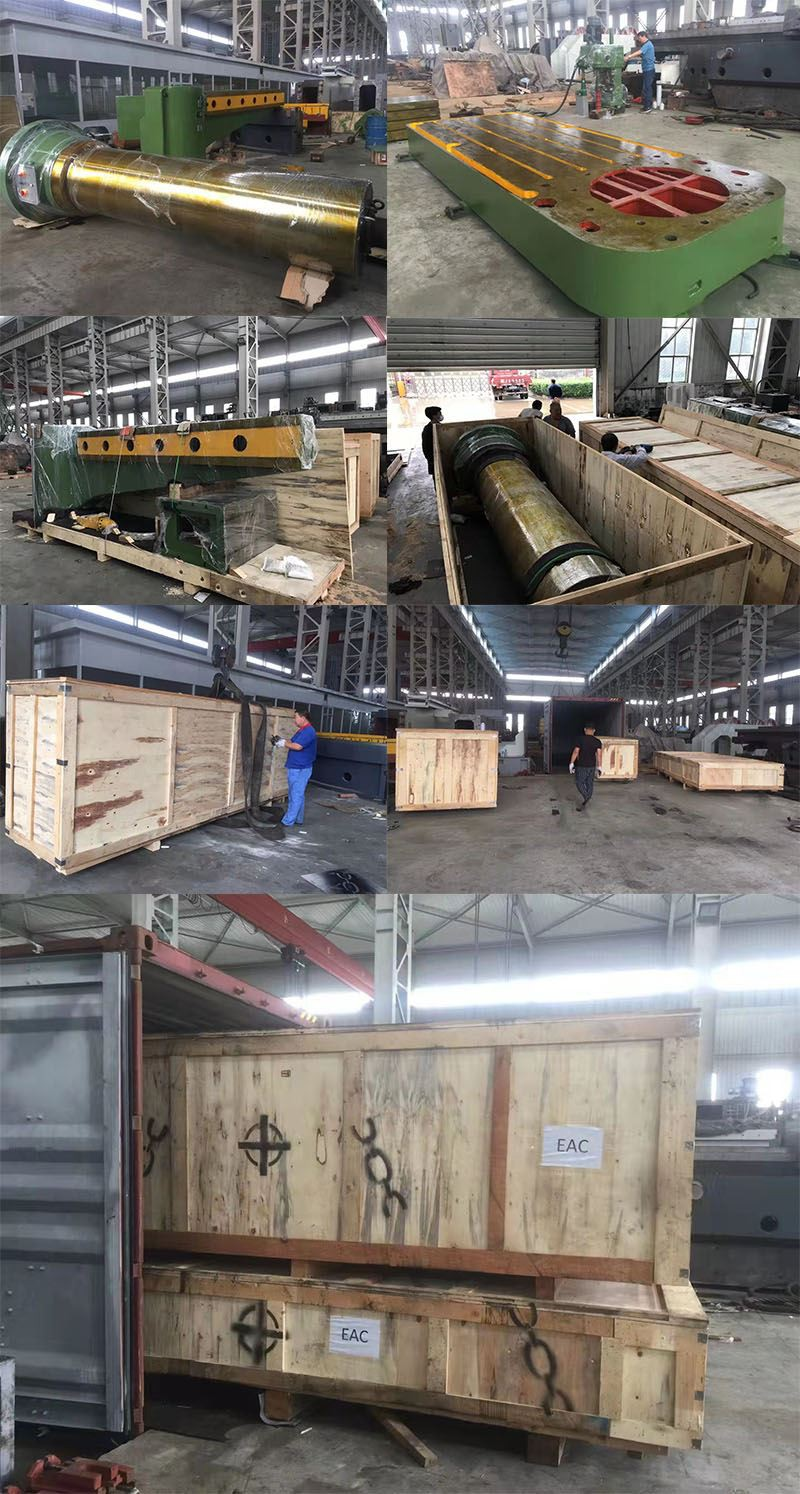

Using Fumigation wooden box, fixed and strong package.
We own the professional lorry team, custom clearance team, shipping agent team.
Aftersales: very parts of the vertical lathe with one year guarantee, within one year, we will change parts if every parts defects because the quality problem.
We will assign professional engineer to be your place for installation, English interpreter service is free
