The Radial Drilling Machines has history of 70 years.. Model NO. Z3040x12, Z3040x16,Z3050x12,Z3050x16,Z3063x20,Z3080x25,Z30100x31,Z30125x40
| Quantity: | |
|---|---|

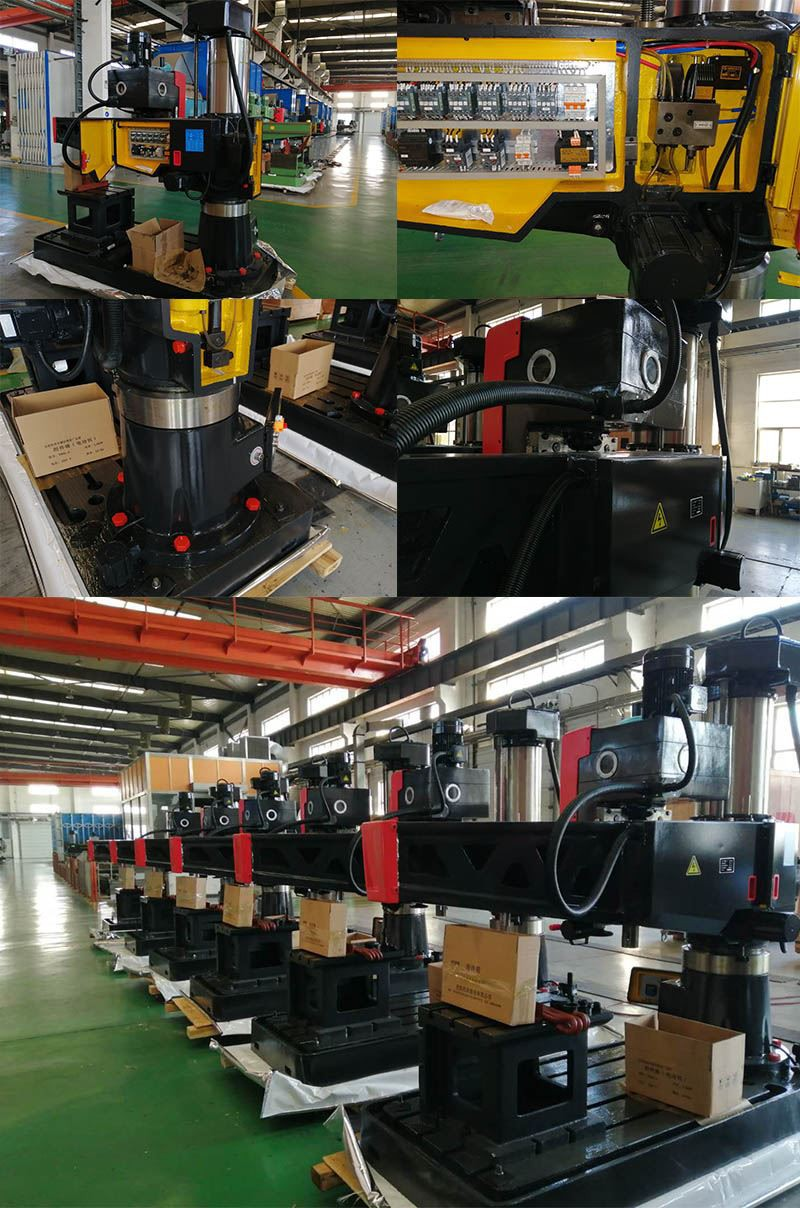

Introduction of Z3050 Radial Drilling Machine
1 . Counter balanced spindle
2 . Pressurized lubrication system
3 . Hydraulic clamping with push button controls
4 . Hydraulic preselected shifting of feeds and speeds
4 . Hardended and precision ground ways
5 . Hardened and ground gears and shafts
6 . Heavily ribbed cast iron base and arm
Benefit:
1. High preicision drilling holes.
2. Increasing working efficiency
3. 7x24 hour on line service

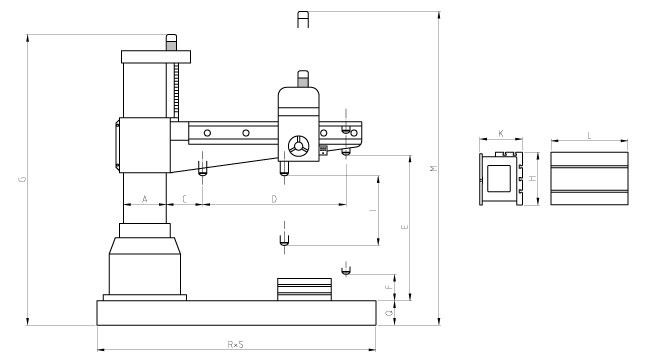

Parameter of Z3050 Radial Drilling Machine
Model | Unit | Z3050x12/1 | Z3050x16/1 | |
Max. Drilling diameter | mm | 50 | 50 | |
Distance between spindle axis and column | Max. | mm | 1250 | 1600 |
Min. | mm | 350 | 350 | |
Distance between spindle nose and working surface of machine base | Max. | mm | 1220 | 1220 |
Min. | mm | 320 | 320 | |
Spindle Travel | mm | 315 | 315 | |
Spindle taper | - | Morse 5# | Morse 5# | |
Speed range of spindle | m/min | 25-2000 | 25-2000 | |
Steps of spindle speed | step | 16 | 16 | |
Feed range of spindle | mm | 0.04-3.2 | 0.04-3.2 | |
Steps of spindle feed | step | 16 | 16 | |
Worktable dimension | mm | 630x500x500 | 630x500x500 | |
Max.torque of spindle | Nm | 500 | 500 | |
Lifting distance of swing arm | mm | 580 | 580 | |
Machine weight | kg | 3000 | 3500 | |
Size(LxWxH) | mm | 2500x1070x2840 | 2500x1070x2840 | |
Model | Unit | Z30125x40 | Z3140A | |
Max. Drilling diameter | mm | 125 | 40 | |
Distance between spindle axis and column | Max. | mm | 4000 | 1600 |
Min. | mm | 600 | 850 | |
Distance between spindle nose and working surface of machine base | Max. | mm | 2500 | - |
Min. | mm | 750 | - | |
Spindle Travel | mm | 560 | 315 | |
Spindle taper | - | Metric 80 | Morse 4# | |
Speed range of spindle | m/min | 6.3-800 | 16-1250 | |
Steps of spindle speed | step | 22 | 16 | |
Feed range of spindle | mm | 0.06-3.2 | 0.06-1 | |
Steps of spindle feed | step | 16 | 9 | |
Worktable dimension | mm | 1250x800x630 | - | |
Max.torque of spindle | Nm | 3136 | 392 | |
Lifting distance of swing arm | mm | 1250 | 900 | |
Machine weight | kg | 28500 | 4500 | |
Size(LxWxH) | mm | 5660x2151x4950 | 3058x1240x2620 |
Geometric accuracy inspection table
S/N | Item | Tolerance |
1 | Flatness of the working surface of the base | At 1000 measuring length: 0.10 flat or concave |
2 | Parallelism of the headstock movement to the working surface of the base | The measurement length at any 1000 is: 0.30 |
3 | Parallelism of the rocker arm movement to the working surface of the base | Measuring length at any 300: 0.05 |
4 | 1. Radial runout of the axis of the spindle taper hole: | 1：0.02 2：0.04 |
5 | 1. Close to the end face of the spindle | 0.20/1000* *Indicator probe measuring contact distance |
6 | 2. 300 points away from the end face of the spindle | A 0.10/300 B 0.05/300 |
7 | The perpendicularity of the spindle axis to the working surface of the base | A0.06 B0.10 |
8 | The verticality of the working surface of the spindle vertical movement base | Load value (feed resistance) 15200Na.b3/1000 The distance between the two contacts of the indicator |
